Wholesale tilting rotating swivel hospital nursing bed B2B Supplier: What Buyers Should Check Before Ordering

Materials and Construction Trade-offs

The swivel bearing assembly is the single point where repeat loading drives the failure. A sealed double-row angular contact bearing rated for 200 k cycles keeps play under 0.15 mm after 50 k tilt‑swivel sequences, but the housing must be machined to ±0.02 mm to avoid premature brinelling.

Frame tubes are 50 × 30 mm rectangular steel, 2.5 mm wall, welded with a 6 mm fillet. Powder‑coat thickness of 80 µm passes 500 h salt‑spray; thinner coats save 0.3 kg per bed but show red rust at 200 h. Aluminium side‑rail extrusions (6063‑T5) reduce weight 12 % but require a 1.2 mm anodised layer to resist cleaning‑agent attack.

Mattress platform uses 30 kg/m³ high‑resilience foam bonded to a 12 mm birch plywood core. The adhesive line is the weak link — peel strength below 1.2 N/mm leads to delamination after 30 k articulation cycles. Specifying a polyurethane reactive hot‑melt raises the peel to 2.0 N/mm and adds only 0.15 kg.

Size, Weight and Specification Range

Finish	Colour Code	Antimicrobial Additive	MOQ (units)	Lead Time (weeks)
Powder‑coat standard	RAL 9016	No	10	4
Powder‑coat antimicrobial	RAL 9016 + Ag	Silver‑ion 0.5 %	15	5
Anodised aluminium rail	Clear / Custom	No	20	6

Overall bed length spans 2000–2100 mm, width 900–1000 mm, height range 400–800 mm. Safe working load is 150 kg for the standard frame, 250 kg when the reinforced centre beam (8 mm plate) is specified. Unit weight varies 85–115 kg depending on rail material and actuator choice.

Option Comparison by Usage Level

General Ward (≤30 tilts/day)

Standard steel frame, 2.5 mm wall
Single‑speed tilt actuator, 12 V DC
Powder‑coat RAL 9016, no antimicrobial

ICU / High‑Acuity (≥80 tilts/day)

Reinforced centre beam, 8 mm plate
Dual‑speed actuator with soft‑start, 24 V DC
Antimicrobial powder‑coat, anodised rails

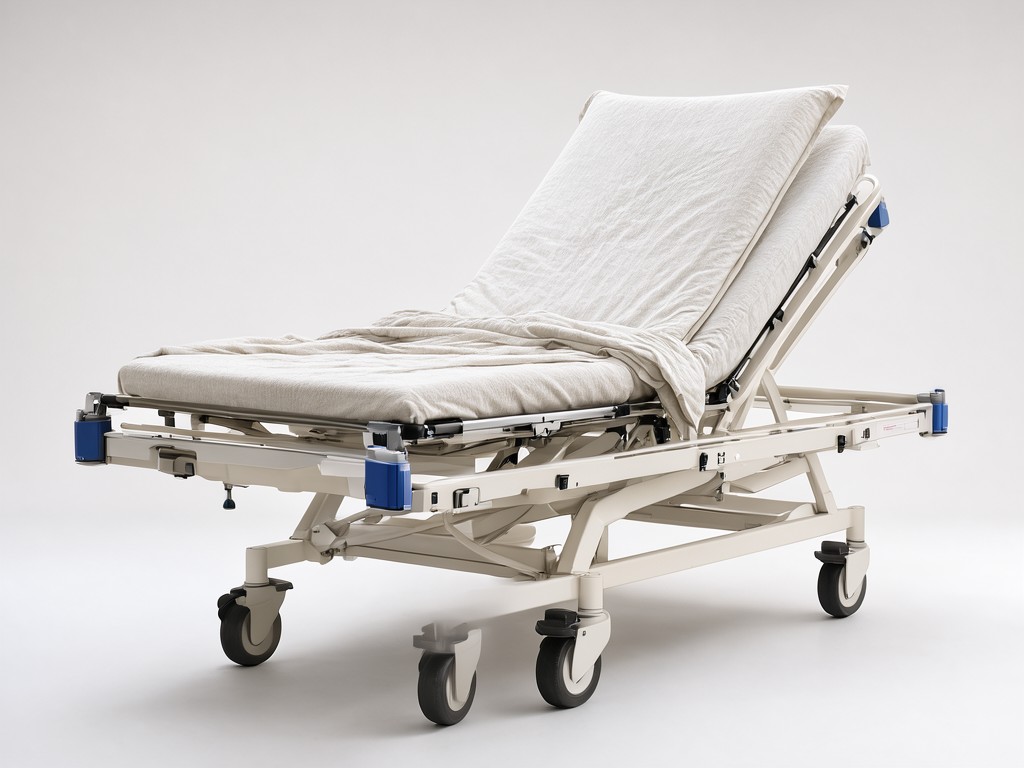

Wholesale tilting rotating swivel hospital nursing bed B2B Supplier

Component	Test Method	Cycle Rating	Typical Failure Mode	Inspection Interval
Swivel bearing	ISO 281 dynamic load rating	200 k cycles	Brinelling >0.15 mm play	Every 25 k cycles
Tilt actuator	IEC 60601‑2‑52 endurance	150 k cycles	Gear tooth wear, limit switch drift	Every 20 k cycles
Foam‑to‑ply bond	ASTM D903 peel test	30 k articulations	Delamination at edge	Every 10 k articulations

Stock Availability and Reorder Planning

Standard ward configuration (steel frame, single‑speed actuator, RAL 9016) is held in a rotating buffer of 30 units. ICU configuration requires a 10‑unit minimum order because the reinforced beam and dual‑speed actuator are built to order. Lead time for the buffer stock is 2 weeks ex‑works; made‑to‑order runs 5–6 weeks after drawing approval.

Reorder point is set at 8 units for the ward line and 4 units for the ICU line. A kanban card triggers the next production batch automatically when the warehouse count drops below the threshold. Buyers should confirm their forecast horizon — 12‑week rolling forecast keeps the buffer from starving during seasonal peaks.

Request current stock snapshot and lead‑time quote

Packing, Marking and Freight Configuration

Flat‑pack crate (ward)

Dim: 2100 × 1000 × 350 mm
Gross weight 95 kg
ISPM‑15 stamped pine, corner protectors

Assembled crate (ICU)

Dim: 2150 × 1050 × 500 mm
Gross weight 130 kg
Plywood sheathing, shock‑absorbing foam inserts

Each crate receives a laser‑etched label with batch number, production date, configuration code, and a GS1‑128 barcode for warehouse scanning. Palletisation is 2 crates per Euro pallet (1200 × 800 mm), stretch‑wrapped with 20 µm film. Container loading: 24 ward crates or 18 ICU crates per 40‑ft high‑cube. Freight class 150 (NMFC) for both; insurance value declared at unit FOB + 10 % for handling.

Artwork & Branding Review

Submit your logo, colour‑match specs, and label layout for a pre‑production proof. We return a digital mock‑up within 48 h and a physical sample on the first production run.

Start artwork review
