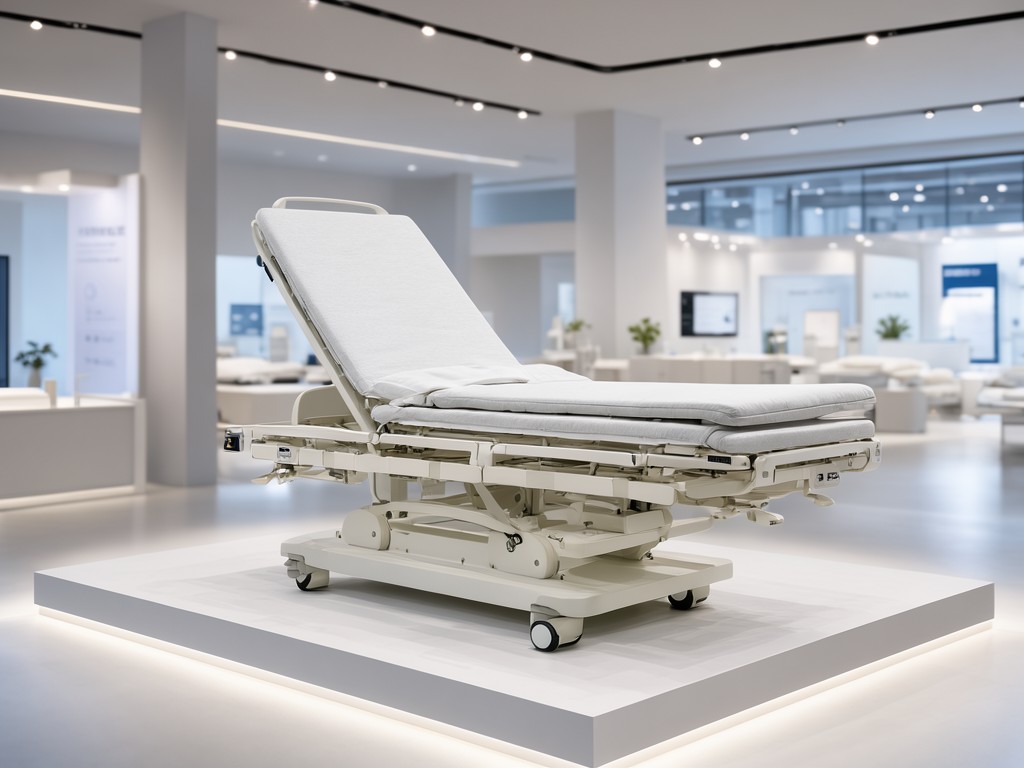

wholesale multi-functional electric standing hospital bed supplier: Specification, Ordering and Quality Notes

How It Is Built and What That Changes

Fatigue appears at the stress concentration where the lift column meets the base frame. The column uses a 2 mm wall‑thickness cold‑rolled steel tube, welded with a full‑penetration seam and then shot‑peened to raise the fatigue limit by roughly 15 %. The mattress platform is a 12 mm birch plywood core faced with high‑pressure laminate, chosen because it resists delamination after 10 000 cycles of 120 kg static load.

The drive system couples a 24 V DC linear actuator (rated 6000 N) to a planetary gearbox with a 1:30 reduction. Gear teeth are case‑hardened to 58 HRC, limiting backlash to under 0.2 mm, which keeps the Trendelenburg angle repeatable within ±0.5° over the full 0‑30° range.

Comparing Two Standard Configurations

The table below contrasts the “Standard‑Duty” and “Heavy‑Duty” builds that share the same outer dimensions (2000 mm × 900 mm) but diverge on motor rating, frame reinforcement, and control electronics.

How to Choose Before Requesting a Quote

Start with the expected daily cycle count. A ward that runs 12 height changes per shift (≈ 360 cycles/day) will exceed the Standard‑Duty duty cycle within the first month, forcing early motor replacement. If the facility runs fewer than 150 cycles per day, the lighter frame saves freight cost and eases manual repositioning.

Next, match the mattress platform to the foam or air‑cell mattress spec. The 12 mm plywood core tolerates a maximum point load of 150 kg; exceeding that causes permanent set and accelerates laminate delamination. Verify the mattress manufacturer’s recommended support spacing before locking in the platform thickness.

Finally, confirm the control interface language and nurse‑call integration protocol. The Heavy‑Duty board ships with RS‑485 Modbus and a 7‑inch capacitive touch panel; the Standard‑Duty board uses a 4‑button membrane with dry‑contact outputs only.

Who Uses It and Where It Matters

Public‑hospital procurement teams specify the Heavy‑Duty build for ICU and step‑down units where beds are repositioned every 30 minutes. Private‑label distributors targeting nursing‑home chains often select the Standard‑Duty version because the lower unit weight reduces container loading costs by roughly 8 % per 40‑ft container.

Emergency‑field hospitals value the IP54 control board; the sealed enclosure survives de‑contamination spray cycles that would corrode an IP42 board within six months.

How Consistency Is Held Across Batches

Each production lot receives a first‑article inspection that records column straightness (≤ 0.3 mm over 2 m), actuator no‑load current (≤ 0.45 A), and control board firmware checksum. The data are logged to a batch traceability sheet that travels with the shipment.

Statistical process control charts monitor the weld‑penetration depth on the column‑base joint; any shift beyond ±0.05 mm triggers a line stop and root‑cause analysis before the next 200 units are released.

Inspection Items and Test Methods

The limiting factor is rarely the headline specification; it is the cumulative effect of vibration, temperature swing, and cleaning chemicals. The factory runs the following routine tests on every 50th unit:

• Static load test: 250 kg applied to the centre of the platform for 30 min; deflection measured at three points, must stay ≤ 4 mm.
• Cycle endurance: 20 000 full‑stroke cycles at rated load; actuator temperature logged, must not exceed 85 °C.
• Electrical safety per IEC 60601‑1: dielectric withstand 1500 V AC, leakage current < 0.1 mA.
• Acoustic emission: A‑weighted SPL at 1 m distance ≤ 45 dB during max‑speed lift.
• Salt‑spray (48 h) on all exposed steel; no red rust > 0.5 mm.

Export Packaging and Handling Protection

Each bed is wrapped in a 0.2 mm PE stretch film, then placed on a fumigated wooden pallet (1200 mm × 1000 mm) with four corner protectors. The pallet is banded with two 19 mm steel straps tensioned to 1.2 kN. A desiccant pack (30 g silica gel) is taped inside the film to keep relative humidity below 60 % during a 45‑day sea voyage.

The outer carton is a double‑wall corrugated box (ECT 48) printed with handling icons: “This side up”, “Do not stack > 2”, and the batch QR code linking to the traceability sheet.

Care, Storage and Service Life

Store units upright on the pallet, never on the side rails, to avoid permanent column bow. Clean the control panel with a 70 % isopropyl wipe; avoid chlorine‑based agents that attack the polycarbonate overlay. Lubricate the actuator lead screw every 6 months with a PTFE‑based grease (NLGI 2) to keep backlash within spec.

Expected service life: 10 years or 200 000 cycles for Heavy‑Duty, 7 years or 120 000 cycles for Standard‑Duty, assuming the duty‑cycle limits are respected and the environment stays within 10‑35 °C, 30‑70 % RH.
