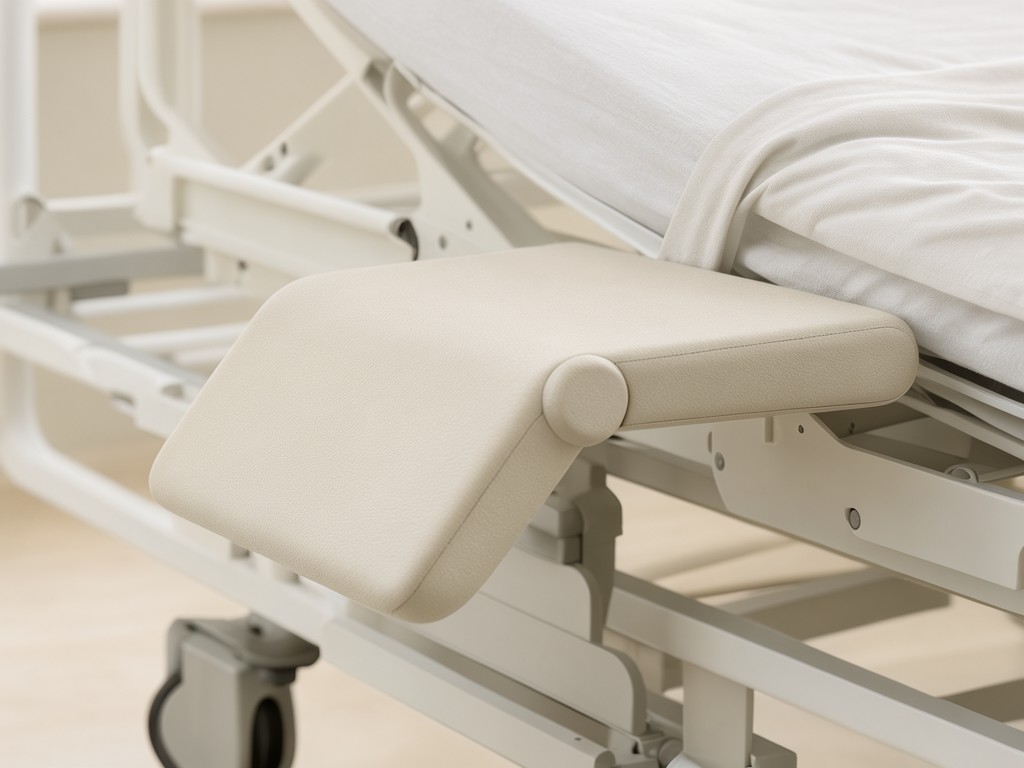

Wholesale backrest and leg rest adjustable hospital bed supplier: Specification, Ordering and Quality Notes
Design Constraints Behind the Specification
During a private-label launch with a fixed ship date, the first question from procurement is always how many articulation cycles the backrest and leg-rest actuators can survive before the load rating drops below the 250 kg safe working load. The answer determines whether the frame stays in a 40-foot container or gets pulled for rework.
The platform uses a four-section steel frame with 50 × 25 mm rectangular tubing at 2.0 mm wall thickness for the main rails and 1.5 mm for the articulation links. That wall thickness is not arbitrary — it is the minimum that passes the IEC 60601-2-52 static load test at 250 kg distributed across the deck while keeping the total bed weight under 115 kg so two technicians can manoeuvre it through a standard 900 mm corridor door. Thinner wall saves 3 kg per unit but fails the 150 % overload clause; thicker wall adds freight cost and pushes the bed over the manual-handling threshold.
Critical Specification Rule
Backrest articulation 0–75°, leg-rest 0–40°, trendelenburg ±12°. All angles measured under 135 kg centred load. Actuator duty cycle rated 10 % (2 min on / 18 min off) at 4 500 N push force. Exceeding duty cycle voids the 3-year actuator warranty.
Materials and Construction Trade-offs
| Component | Standard Grade | Heavy-Duty Upgrade | Cost Delta per Unit |
|---|---|---|---|
| Frame tubing | 50 × 25 × 2.0 mm SPHC | 50 × 30 × 2.5 mm Q235B | +$18 |
| Powder coat | Epoxy-polyester 80 µm, 500 h salt spray | Pure polyester 100 µm, 1 000 h salt spray | +$7 |
| Actuator spindle | Trapezoidal Tr16×4, grease-packed | Ball screw 1605, sealed bearing | +$42 |
| Caster set | 125 mm TPR, central brake, 150 kg each | 150 mm PU, directional lock, 200 kg each | +$14 |
The standard grade covers 85 % of general-ward tenders. Heavy-duty upgrade becomes mandatory when the contract specifies ICU transfer capability or bariatric rating. Ball-screw actuators cut acoustic noise from 48 dB to 39 dB at 1 m — relevant for private-room specifications where noise scores affect reimbursement.
Option Comparison by Usage Level
General Ward — 50+ beds per order
Standard grade frame, trapezoidal actuators, 125 mm casters. Control pendant IPX4, 4-function (back, knee, height, trendelenburg). Battery backup 40 cycles. Packaging: knock-down, 2 beds per plywood crate, 24 beds per 40 HQ.
Unit cost at 50 pcs: $420 FOB. At 200 pcs: $385 FOB. Tooling amortisation absorbed at 150 units.
ICU / Step-Down — 20+ beds per order
Heavy-duty frame, ball-screw actuators, 150 mm casters with directional lock. Control pendant IPX5, 6-function (adds chair position, auto-contour). Battery backup 80 cycles. Integrated scale option +$95. Packaging: semi-assembled, 1 bed per crate, 18 beds per 40 HQ.
Unit cost at 20 pcs: $680 FOB. At 60 pcs: $610 FOB. Tooling amortisation absorbed at 40 units.
Moving from sample orders to container loads changes the cost structure because the CNC tube-cutting fixtures and robotic welding jigs are shared across the product family. Below 30 units the fixture changeover time dominates labour; above 30 units the per-bed welding cost drops 22 % and the powder-coat line runs a dedicated batch, eliminating colour drift between crates.
Matching the Product to the Buyer's Need
On a club programme that reorders twice a season, the procurement lead cares about three variables: carton dimensions that cube out a 40 HQ without air freight surcharges, a spare-parts kit that matches the previous PO's BOM revision, and a factory audit trail that satisfies the hospital group's ISO 13485 supplier questionnaire.
- Carton: 2 150 × 1 050 × 480 mm (L×W×H) for knock-down; 2 200 × 1 100 × 550 mm for semi-assembled. Both stack 2-high in a 40 HQ.
- Spare-parts kit: 2 actuators (1 backrest, 1 leg-rest), 1 control board, 1 handset, 4 casters, 1 battery pack, 1 CPR release cable. Kit SKU stays valid for 5 years from first shipment.
- Audit pack: material certificates for tubing and powder coat, IEC 60601-1 test report (CB scheme), dimensional inspection report per crate, torque records for all critical fasteners (M8 frame bolts 25 Nm, M10 actuator mounts 45 Nm).
Private-label buyers should note: silk-screen logo area on the headboard is 300 × 80 mm, single-colour epoxy ink, cured at 180 °C. Minimum artwork resolution 300 dpi vector. Logo changeover adds 2 days to line schedule but no tooling cost.
How Consistency Is Held Across Batches
| Order Band | Lead Time (FOB) | MOQ | Payment Terms |
|---|---|---|---|
| Sample / trial (1–9 pcs) | 18–22 working days | 1 pc | 100 % T/T before shipment |
| Standard batch (10–49 pcs) | 25–30 working days | 10 pcs | 30 % deposit, 70 % against B/L copy |
| Container load (50–199 pcs) | 30–35 working days | 50 pcs | 30 % deposit, 70 % against B/L copy |
| Annual frame agreement (200+ pcs) | Rolling 20-day slots | 50 pcs per release | Net 45 from invoice date |
Batch consistency is enforced by three in-line gates: laser dimensional check on every 5th frame after welding (±0.5 mm on critical holes), actuator stroke and force test at 100 % of units before deck assembly, and a 4-hour burn-in on the complete electrical system at 135 kg simulated patient load. Any gate failure quarantines the crate and triggers a corrective-action report within 24 hours.
Quotation Review
Send the target configuration, annual volume forecast, and destination port. We return a line-item quote with FOB/CIF options, crate plan, and the current production-slot availability within one business day.
