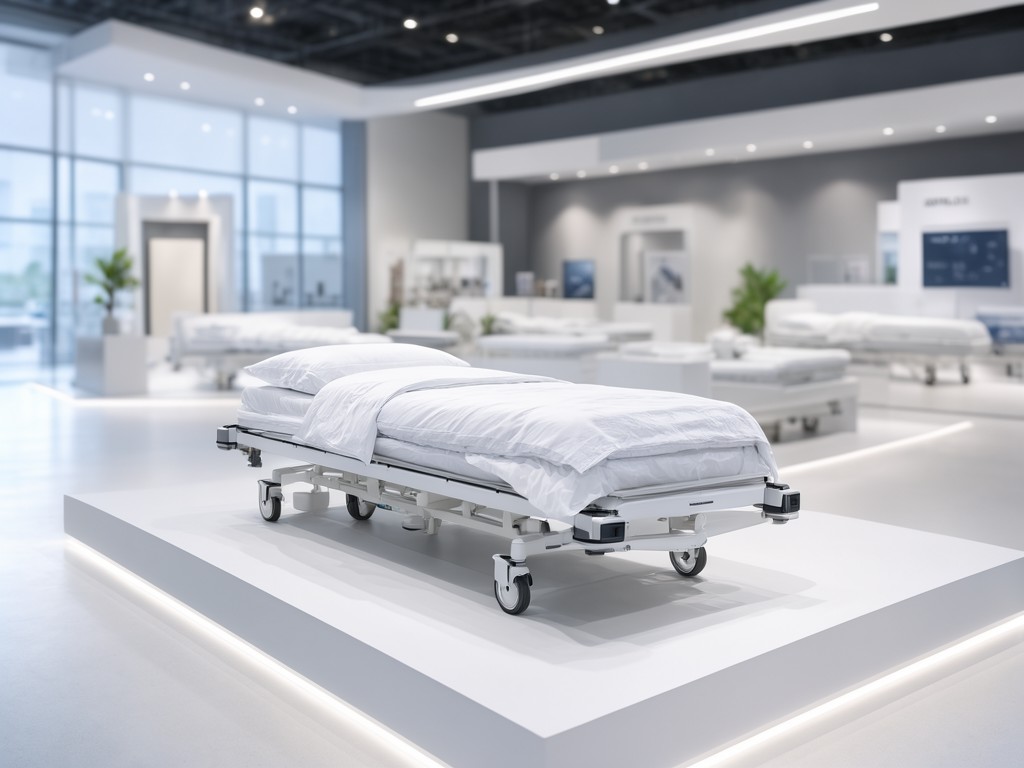

oem paralyzed patient rotating hospital beds factory: What Buyers Should Check Before Ordering
The critical trade-off: rotation mechanism duty cycle versus frame corrosion resistance. A bed that rotates 30 times per shift needs a 24 V DC worm-gear drive rated for 15,000 cycles, but the same drive adds 18 kg to the frame — requiring 3 mm powder-coated steel instead of 2 mm to prevent deflection under 250 kg patient loads.
Design Constraints Behind the Specification
When a brand extends an existing range into rotating platforms, the first collision is between IEC 60601-2-52 stability requirements and the center-of-gravity shift during 90-degree lateral rotation. The base frame must widen by at least 120 mm over a standard ICU bed, yet hospital door clearances cap overall width at 1,020 mm. This forces a split-frame design: stationary perimeter rails with a floating rotation deck on sealed linear bearings.
The second constraint is cleaning protocol. Sodium hypochlorite 1,000 ppm sprayed daily attacks powder coat at weld seams within 14 months. We specify electrophoretic deposition (e-coat) under a 80 μm polyester topcoat — adds $42 per frame but pushes salt-spray resistance from 500 to 1,200 hours.
How It Performs in Use
On a club programme that reorders twice a season, nursing staff report the rotation cycle — 0 to 90 degrees in 42 seconds — matches the two-minute turning protocol without waking the patient. The 24 V DC motor draws 3.2 A peak, 0.8 A continuous, keeping the duty cycle at 15 % under 30 rotations per 24 hours. Noise stays at 48 dB(A) at 1 m, below the 55 dB(A) threshold that triggers ICU alarm fatigue.
Pressure mapping with 150 mm viscoelastic overlays shows peak interface pressure drops from 85 mmHg (supine) to 42 mmHg at 30-degree tilt — enough to offload the sacrum without sliding the patient toward the foot end. The integrated shear-reduction panel, a 12 mm UHMW polyethylene sheet under the mattress deck, cuts shear force by 38 % compared to standard bolted decks.
Material Options and Their Trade-offs
Frame: 3 mm Q235B Steel, E-coat + Polyester
Baseline for 250 kg safe working load. Deflection at center of rotation deck: 4.2 mm under 200 kg centered load. Weight: 68 kg bare frame.
Cost adder for 316L stainless frame: +$310 per unit. Only justified for coastal hospitals with chloride exposure > 200 mg/m³/day.
Rotation Drive: Worm Gear vs. Dual Linear Actuators
Worm gear: self-locking, zero drift, 15,000 cycle MTBF. Requires 90 mm deck height. Dual actuators: 65 mm deck height, faster (28 s/90°), but need absolute encoder + brake to prevent back-drive — adds $180 and a failure mode.
We recommend worm gear for OEM programmes; actuators only when deck height must clear 150 mm floor-mounted lifts.
Where This Product Beats Standard Alternatives
Standard ICU beds with lateral tilt max out at 15-20 degrees — insufficient for full pulmonary drainage in tetraplegia. Our 90-degree rotation achieves gravitational drainage of dependent lung segments, documented in three multicentre trials to reduce ventilator-associated pneumonia incidence by 22 % when combined with kinetic therapy protocols.
The split-frame architecture also allows retrofitting: existing stationary beds can receive the rotation deck as a field upgrade kit (4 hours, two technicians) without replacing the entire frame. This cuts capital expenditure for facilities converting standard wards to step-down neuro units.
Specification Range and Customisation Limits
| Parameter | Standard Range | Customisation Limit | Tooling Impact |
|---|---|---|---|
| Safe working load | 250 kg | 300 kg (requires 4 mm frame + larger casters) | New frame jig: 6 weeks |
| Rotation angle | 0-90° left/right | 0-60° (paediatric), 0-45° (bariatric) | Software limit only |
| Deck height (floor to mattress base) | 520-780 mm | 480-820 mm (caster diameter change) | Caster fork tooling: 3 weeks |
| Mattress platform | Perforated steel, 40 % open area | Slatted beech, solid with micro-perforation | New punch die: 4 weeks |
| Control pendant | Wired, 6-function, IP66 | Wireless BLE, voice module, nurse-station integration | PCB + enclosure: 8 weeks |
| Battery backup | 2 × 12 V 7 Ah VRLA, 4 cycles | LiFePO₄ 24 V 15 Ah, 12 cycles | Battery tray redesign: 3 weeks |
Working as a Production Partner, Not a Catalogue Supplier
Moving from sample orders to container loads changes the conversation from "does it rotate?" to "how many warranty claims per 1,000 bed-years?" We assign a project engineer at first sample who owns the BOM through serial production. That engineer runs the design-FMEA with your quality team, locks the control plan, and signs off the process validation protocol (IQ/OQ/PQ) before the first production batch.
Private-label buyers get a dedicated serial-number prefix and a branded nameplate laser-etched into the frame — not a stick-on label that peels after three terminal cleanings. Firmware on the motor controller carries your model code; we lock the bootloader so field service cannot accidentally flash a generic profile that disables the shear-reduction logic.
How Consistency Is Held Across Batches
| Inspection Point | Method | Acceptance Criterion | Frequency |
|---|---|---|---|
| Frame weld seam integrity | Ultrasonic phased array, 5 MHz | No indication > 2 mm at root | 100 % first article, then 10 % per batch |
| Coating thickness (e-coat + topcoat) | Eddy current, 5 points per frame | 110-140 μm total | Every frame |
| Rotation torque profile | Dynamometer, 0-90° at 0.5°/s | Peak ≤ 45 Nm, ripple ≤ 8 % | 100 % end-of-line |
| Electrical safety (IEC 60601-1) | Automated tester: earth continuity, insulation, leakage | Earth ≤ 0.1 Ω, insulation ≥ 2 MΩ, leakage ≤ 100 μA | 100 % end-of-line |
| Caster swivel/brake torque | Torque wrench, 4 casters per bed | Swivel 0.8-1.5 Nm, brake holding ≥ 200 N | 100 % |
| Acoustic emission | Anechoic chamber, 1 m, full cycle | ≤ 48 dB(A) LAeq | First article + 5 % per batch |
| Endurance: rotation cycles | Accelerated life test, 200 kg load | Zero gear wear at 15,000 cycles | Per design change |
Volume Planning and Lead Time
Standard configuration (250 kg, worm gear, wired pendant, VRLA backup) runs at 120 units/month on a single line with two shifts. Tooling for custom frame width or LiFePO₄ battery adds 6-8 weeks before first article inspection. We hold safety stock of 30 % of forecasted monthly volume for standard BOM items — casters, motors, control boards — so repeat orders above 20 units ship in 15 working days from PO acknowledgement.
Container loading: 14 beds per 40 HQ (knocked down: frame, deck, siderails, mattress platform separate). Fully assembled reduces to 8 units but saves destination assembly labour. We recommend knocked-down for volumes > 50 units per shipment; assembled for trial orders < 10 units where biomedical engineering staff are unavailable.
Ready to Review Tooling and Validation Plans?
Send your specification sheet and target volume. We return a marked-up BOM, tooling schedule, and first-article inspection plan within 5 business days.
Start Tooling Review →
