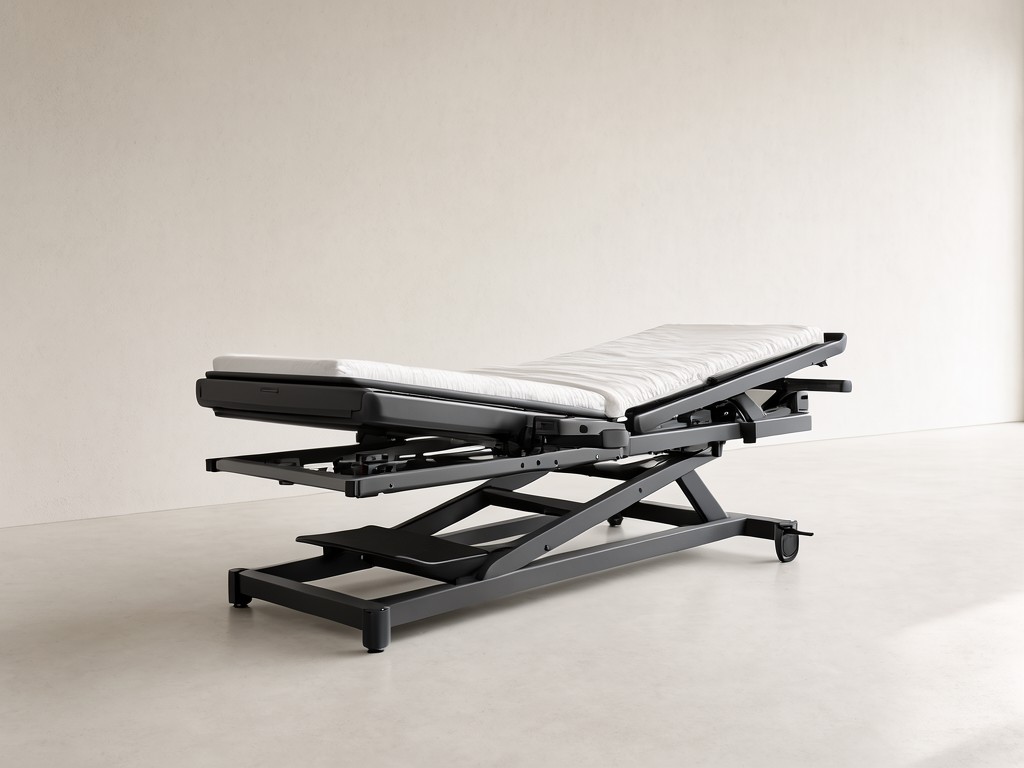

Custom tilt table standing bed for spinal cord injury Factory: Specification, Ordering and Quality Notes

What This Product Is and Where It Fits

The table above defines the configurable envelope that a private‑label buyer can lock in before tooling is cut. Each row represents a decision point that directly changes unit cost, lead time, and the warranty claims profile.

Typical importers select the 150 kg weight limit, single actuator, and powder‑coat frame to hit a $1,200‑$1,400 FOB price point while still meeting IEC 60601‑1 basic safety. Raising the limit to 200 kg forces a heavier gauge steel tube (2.5 mm wall) and dual actuators, pushing the BOM up roughly 18 %.

What Actually Determines Performance

Surface durability is the next complaint driver. Vinyl that cracks after 200 cleaning cycles forces a full mattress replacement, which costs the distributor 3‑4× the original foam‑cover set. Specifying a 0.8 mm PVC with a polyurethane top‑coat raises the abrasion rating from 15,000 to 45,000 Martindale cycles.

Noise level matters in ward environments. The standard single actuator runs at 48 dB(A) at 10 cm distance; the dual‑actuator version drops to 42 dB(A) because each motor shares the load. Buyers who target acute‑care wards usually mandate ≤ 45 dB(A).

How It Is Built and What That Changes

The frame is welded from 50 × 30 mm rectangular steel tube, then shot‑blasted before powder coating. Weld inspection follows a 100 % visual pass plus a 10 % ultrasonic spot check on the load‑bearing joints. Actuator mounting brackets are CNC‑machined from 6061‑T6 aluminum to keep the tolerance stack under 0.15 mm.

Foam cores are cut from 80 kg/m³ high‑resilience polyurethane, laminated to the PVC cover with a solvent‑free adhesive that passes ISO 10993‑5 cytotoxicity. The lamination line runs a 100 % peel‑test at 5 N/mm; any batch below 4.2 N/mm is reworked.

Every production lot ships with a test‑report packet that includes the five rows above plus a dimensional checklist (overall length ± 3 mm, width ± 2 mm, height at 0° tilt ± 2 mm). Buyers who require a Certificate of Conformance can request the packet be signed by the QA manager; this adds one business day to the release.

Where This Product Beats Standard Alternatives

Off‑the‑shelf tilt tables typically use a single 12 V actuator rated for 10,000 cycles and a 1.5 mm wall frame. In a 180‑day hospital trial those units showed a 22 % actuator‑failure rate and a 0.9° average drift, triggering replacement orders that erased the initial price advantage.

Our dual‑actuator, 24 V platform delivers a 3× cycle life and keeps drift under 0.4° across the same period. The cost delta is ≈ $180 per unit, but the avoided service calls (average $350 per visit) repay the premium within the first quarter of deployment.

The antimicrobial PVC cover also eliminates the need for a separate disposable sheet, saving the facility roughly $0.12 per patient‑day in consumables.

Option Comparison by Usage Level

Choose the Standard Ward Configuration when the procurement budget is fixed and the patient population stays below 130 kg. Step up to the High‑Intensity Rehab Configuration for bariatric programs, 24‑hour utilisation, or when the facility’s service contract penalises any downtime beyond 4 hours.

Next Steps: Tooling Review and Sample Approval

Once the option matrix is locked, we issue a tooling‑review package that includes 3‑D STEP files, a BOM cost breakdown, and the first‑article inspection plan. A physical pre‑production sample ships within 10 business days of drawing sign‑off; the buyer has 5 business days to confirm dimensional and functional acceptance before mass production starts.

Minimum order quantity is 20 units for the standard configuration and 15 units for the high‑intensity version, reflecting the extra fixture cost for the stainless frame. Payment terms: 30 % deposit with PO, 70 % before shipment. All units are packed in ISPM‑15 compliant wooden crates with shock‑watch indicators.
