Specifying Custom pediatric children hospital bed for home care exporter for Wholesale and OEM Orders
The complaint that repeats across reorders is premature side‑rail latch failure after six months of daily cleaning with quaternary ammonium solutions. Buyers who specify only a static load rating often discover that the actuator duty cycle and coating thickness are the real drivers of total cost per unit sold.
Scope of Supply and Physical Form

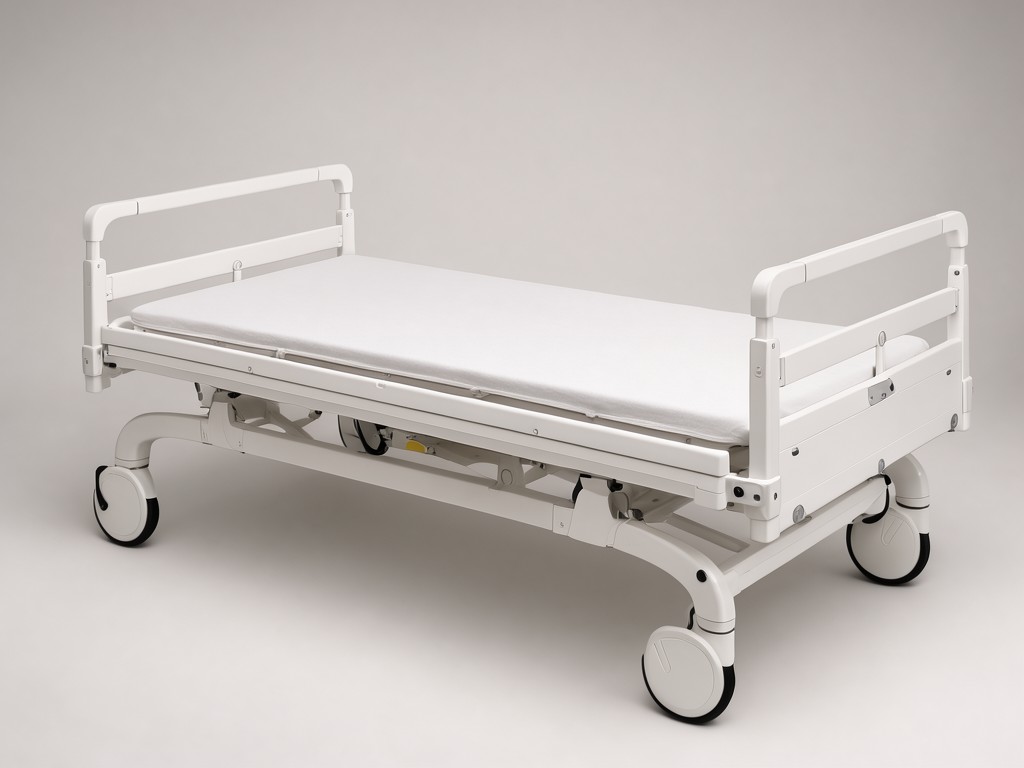

Each unit ships as a complete kit: powder‑coated steel frame, integrated mattress platform with adjustable height range 30‑70 cm, two detachable side rails, low‑voltage linear actuator (24 V DC), handheld controller, and export‑grade corrugated crate with moisture barrier. The frame uses 1.5 mm wall thickness rectangular tubing; the platform consists of 12 mm birch plywood topped with medical‑grade vinyl laminated to 2 mm high‑density foam.
All fasteners are stainless‑steel M8 socket head cap screws with nylon‑insert lock nuts to resist vibration loosening during transport. The actuator is rated for 6 000 N push force and 4 000 N pull force, delivering a 10 mm/s travel speed under full load.
What Actually Determines Performance
Performance in the field is governed by three measurable limits: static load capacity, actuation cycle life, and chemical‑resistance of the coating. A bed that passes a 250 kg static test but only survives 15 000 actuator cycles will generate warranty claims long before the frame yields.
| Test | Reference Condition | Acceptance Range |
|---|---|---|
| Static Load | Per applicable medical‑bed standard | ≥ 250 kg, ≤ 2 mm deflection |
| Actuator Cycle Life | Continuous 10 mm/s, full load | ≥ 30 000 cycles without > 10 % speed loss |
| Salt Spray | 5 % NaCl, 35 °C | ≥ 500 h, no red rust on coating |
| Chemical Resistance | Quaternary ammonium, 1 % solution, 200 cycles | ≥ 95 % gloss retention, no blistering |
| Dimensional Check | CMM measurement of critical points | ± 1 mm on frame length, ± 0.5 mm on rail mounting holes |
Materials and Construction Trade-offs
Frame steel is offered in two grades: S355JR (baseline) and S420MC (high‑strength). The higher grade reduces tube weight by 0.8 kg per bed but adds €12 per unit at current mill pricing. Powder coating thickness can be specified at 60 µm (standard) or 100 µm (extended corrosion warranty). The 100 µm option adds €4 and extends salt‑spray life from 500 h to 800 h.
Specification Callout
Choosing 100 µm coating is cost‑effective when the buyer’s end‑market includes coastal clinics where humidity exceeds 80 % RH for > 200 days per year. In temperate inland regions the 60 µm baseline meets the 5‑year service target with a 15 % lower material cost.
Side rails are injection‑molded ABS with a 2 mm wall. A reinforced rib design adds 0.3 kg per rail and raises latch cycle rating from 10 000 to 25 000 operations. Vinyl mattress cover options: 180 µm standard (meets EN 597‑1 flame test) or 250 µm premium (adds 0.2 kg, improves tear resistance by 30 %). Actuator motor can be brushed (lower cost, 15 % higher audible noise) or brushless (quieter, 20 % longer bearing life).
Matching the Product to the Buyer's Need
Use the decision tree below to align configuration with the target care environment and cost‑per‑unit‑sold goal.
- Identify primary care setting
- Home care – prioritize compact footprint (≤ 95 cm width), low‑noise brushless actuator, 60 µm coating (cost‑sensitive)
- Extended care facility – select S420MC frame, 100 µm coating, reinforced side rails, integrated scale option (higher upfront, lower warranty cost)
- Choose side‑rail configuration
- Fixed rails – fewer moving parts, easier cleaning, lower BOM
- Drop‑down rails – required for patient transfer protocols, adds 2 % to assembly labor
- Select mattress interface
- Standard 90 × 200 cm – fits most pediatric mattresses, no tooling change
- Custom width (80‑100 cm) – requires new platform die, MOQ impact of + 30 % units
OEM and ODM Programme Structure
Sample approval follows a three‑stage gate: (1) dimensional first‑article inspection, (2) functional actuation test at 10 % of rated cycles, (3) accelerated aging (48 h at 55 °C, 95 % RH). Tooling lead time for a new side‑rail mold is 6 weeks; frame fixture changes add 2 weeks. Minimum order quantity for a custom colour powder coat is 200 units; for a private‑label vinyl print the MOQ is 500 units. Branding artwork must be supplied as vector PDF, 300 dpi minimum, with bleed 3 mm. Warranty terms default to 24 months on frame, 12 months on actuator, 6 months on vinyl cover; extended warranty can be negotiated per volume tier.
Setup, Use and Replacement Parts
Assembly requires two technicians and a 4 mm Allen key; frame bolts torque to 25 Nm. Actuator mounting brackets use M6×30 socket heads torqued to 12 Nm. Clean frame and rails weekly with pH‑neutral detergent; avoid chlorine‑based agents above 200 ppm. Lubricate actuator lead screw every 6 months with PTFE‑based grease (0.5 g per screw). Side‑rail latch springs should be inspected at each mattress change; replace if deflection exceeds 2 mm. Vinyl cover replacement cycle is 18 months under typical home‑care cleaning frequency; order spare covers in multiples of 10 to match crate packing.
Questions Buyers Ask Before Ordering
- What is the typical lead time for a first‑article sample? – 4 weeks for standard configuration, 6 weeks if a new side‑rail mold is required.
- Can the actuator voltage be changed to 12 V DC for battery‑backup kits? – Yes, a 12 V motor variant exists; it adds €8 per unit and reduces push force to 4 500 N.
- How are export crates marked for customs? – Each crate receives a laser‑etched serial label, HS code 9402.90, and a moisture‑indicator strip.
- Is there a discount schedule for annual volume commitments? – Tiered pricing starts at 500 units per year (3 % off), 1 000 units (6 % off), 2 000 units (9 % off).
- What documentation accompanies each shipment? – Certificate of conformity, packing list, test report summary, and a bilingual (English/Chinese) user manual.
