Selection Trade‑off
Balancing frame rigidity against patient‑transfer clearance drives the cost split: a 30 mm square‑tube chassis adds 4 kg but cuts flex under 120 kg loads, while a 25 mm tube saves weight but requires a supplemental side‑rail kit for the same safety rating.

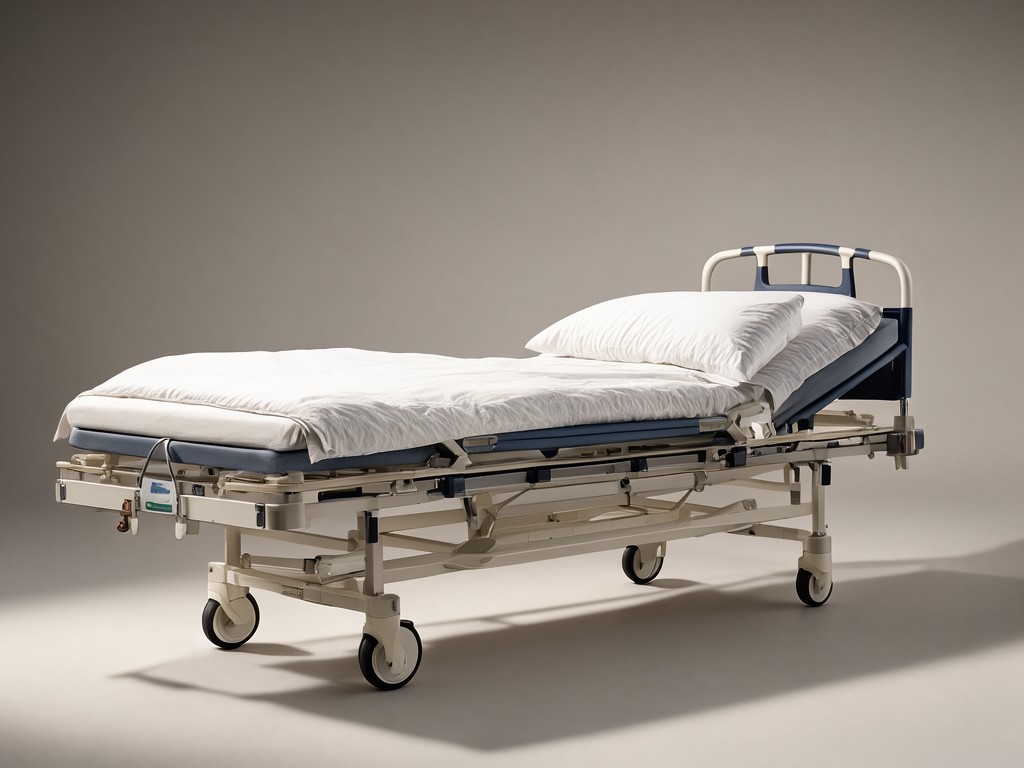

China standing hospital bed with safety harness Supplier: Specification, Ordering and Quality Notes
Where Cheaper Alternatives Fall Short
Most quality disputes start with a consistency gap between the quoted tube gauge and the material that arrives on the dock.
Frame Flex Under Load
A 25 mm tube rated for 100 kg will deflect 12 mm at the centre when a 120 kg patient is positioned, exceeding the 5 mm limit that most procurement specs enforce for safe harness attachment.
What the Design Has to Balance
The complaint that repeats across reorders is the trade‑off between actuator stroke length and the minimum bed height required for safe patient egress.
Actuator Stroke vs. Clearance
A 300 mm stroke gives full Trendelenburg positioning but forces the base frame to sit 150 mm higher, which conflicts with low‑clearance doorways in older wards.
Where This Product Beats Standard Alternatives
Returns usually trace back to the same weak point: harness anchor bolts that shear after 300 cycles on a 25 mm tube.
Usage Level Comparison
| Usage Level | Max Patient Weight (kg) | Daily Actuator Cycles | Frame Tube (mm) | Harness Anchor Rating (kN) |
|---|---|---|---|---|
| Light | ≤100 | ≤20 | 25 | 4.5 |
| Standard | ≤130 | ≤50 | 30 | 6.0 |
| Heavy | ≤180 | ≤100 | 35 | 8.0 |
The table shows how tube diameter and anchor rating step up together, eliminating the shear‑failure mode that plagues lower‑spec beds.
Segment-Specific Requirements
Different care settings impose distinct load profiles and cleaning regimes that dictate the configuration you order.
- ICU units demand 35 mm tube, 8 kN anchors, and IP66‑rated actuator housings for frequent peroxide fogging.
- General wards accept 30 mm tube, 6 kN anchors, and standard powder‑coat finish resistant to quaternary ammonium wipes.
- Home‑care buyers often select the 25 mm tube with a removable side‑rail kit to meet doorway clearance while retaining a 4.5 kN harness rating.
Specifying the correct tier at quote stage avoids costly re‑work after the first installation audit.
What Gets Checked Before Shipment
Inspection routines focus on the points that cause field failures: tube straightness within 0.5 mm per metre, actuator stroke repeatability ±2 mm, harness bolt torque 12 Nm ±10 %, and surface coating adhesion after 200 h salt‑spray.
Each batch receives a dimensional report and a functional cycle log; any deviation beyond the stated tolerance triggers a hold until root cause is documented.
Packing, Marking and Freight Configuration
Freight damage is the hidden cost that appears after the invoice; beds are shipped in reinforced wooden crates with internal foam blocks that lock the frame at four points, preventing racking during sea transit.
Each crate carries a laser‑etched label showing model, tube gauge, harness rating, and production lot; this enables traceability without opening the package.
Setup, Use and Replacement Parts
Service teams report that harness anchor bolts loosen after 500 cycles if the initial torque is not verified with a calibrated wrench.
A quarterly check of bolt torque, actuator limit switches, and mattress platform latch engagement extends service life beyond the 10‑year design target; replacement anchor kits and actuator modules are stocked in 30‑day lead time.
