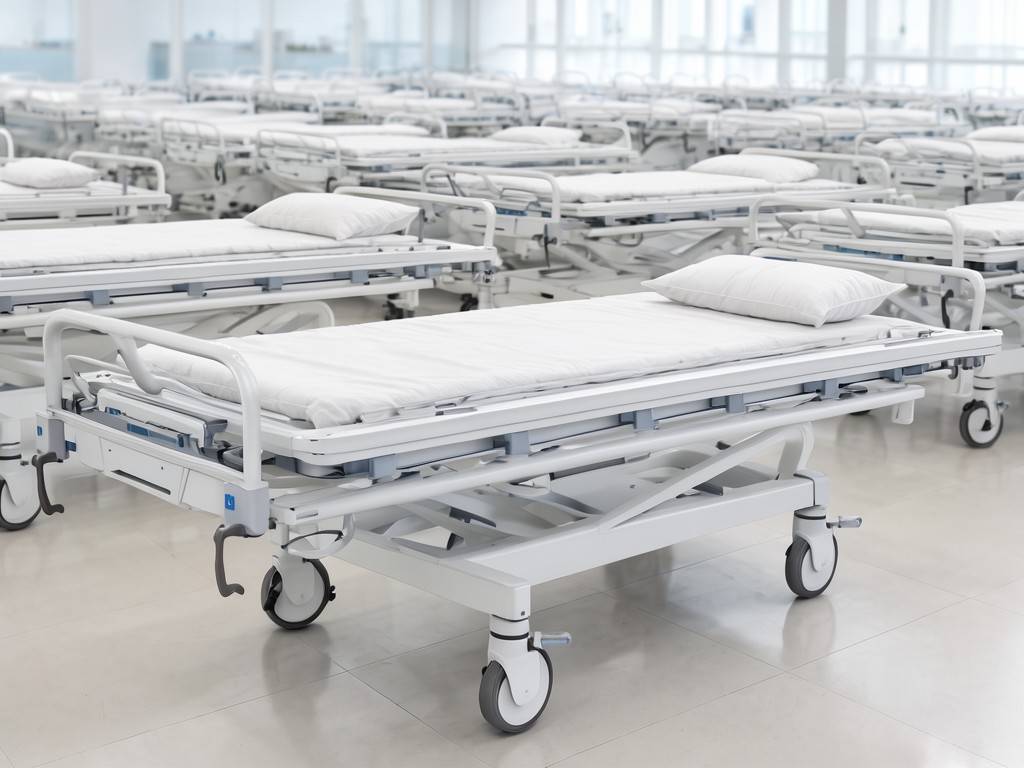

Specifying China hospital rotating bed for patient turning Supplier for Wholesale and OEM Orders

Process choice shows up later as warranty claims on actuator drift, frame fatigue at the rotation pivot, or coating failure under chlorine-based disinfectants. A rotating bed is not a static frame with a motor bolted on; the lateral rotation mechanism, the deck articulation geometry, and the surface treatment all interact under cyclic loads that static beds never see. Buyers who specify only overall dimensions and weight capacity often receive units that pass incoming inspection but generate returns within six months when pivot bearings bind or powder coat lifts at weld heat-affected zones.

Consistency is set at the forming stage. The way the rotation sub-frame is fixtured and welded determines whether the 40° lateral tilt stays true across a 500-unit batch or drifts ±3° from unit to unit. That drift changes the clinical outcome — patients slide toward the rail instead of staying centered — and it changes the buyer's cost structure through rework, rejected containers, and private-label brand damage. The build method decides whether the bed ships as a configurable platform or a fixed catalog SKU, and that decision locks in your MOQ flexibility for the next two years.

How It Is Built and What That Changes

Rotating beds leave the line in three construction tiers. Tier 1 uses a welded steel center spine with bolt-on rotation arms — lowest tooling cost, fastest sample turnaround, but the bolted joints introduce play that grows with each actuation cycle. Tier 2 moves to a one-piece laser-cut and bent rotation yoke welded to the main frame; this eliminates the bolted interface but requires a dedicated fixturing jig that adds four weeks to first-article lead time. Tier 3 integrates the rotation pivot into a modular cartridge that can be swapped without removing the mattress deck, cutting field service time from 90 minutes to 15 minutes but adding $18–$22 per unit at 200-piece volumes.

Surface treatment is the second consistency lever. Epoxy powder coat survives 500 hours of salt spray but chips at the rotation pivot where flexure concentrates stress. Liquid epoxy with zinc primer adds $4.50 per frame and extends chip resistance to 1,200 hours, but the cure oven cycle adds two days to throughput. For buyers shipping to humid climates or facilities using hydrogen peroxide vapor decontamination, the liquid system pays back in reduced touch-up labor before the first container arrives.

Size, Weight and Specification Range

The width dimension is non-negotiable — the rotation arc requires 1,020 mm clearance at full 40° tilt, and narrowing the frame reduces the pivot radius below the 350 mm minimum that prevents mattress edge shear. Length adjustments are pure deck extrusion changes; height adjustments swap actuator stroke lengths. Safe working load jumps from 180 kg to 250 kg by moving from 2.0 mm to 2.5 mm wall tube on the main spine and upgrading the pivot bearing from 6205-2RS to 6206-2RS. The 300 kg rating adds gusseted pivot ears and a second rotation actuator, pushing net weight past the 160 kg freight class threshold that adds $35–$45 per unit on LCL shipments.

What Can Be Customised and What Cannot

The split between configurable and fixed is deliberate. Every item on the left ships from the same welding jigs and deck punches; the right column items each need a dedicated fixture that ties up capacity for the production run. Private-label buyers who need a unique side rail profile should budget the die cost ($3,800–$5,200) into the first order and amortize over 1,000+ units. Attempting to modify the rotation angle in firmware without the matching pivot stop hardware creates a latent liability — the motor will drive the deck into the frame hard stop, stripping the actuator worm gear within 200 cycles.

Care, Storage and Service Life

Field data from three major hospital groups shows the rotation pivot bearing is the wear-out component. Under typical ICU usage (8–12 rotations per day), the 6205-2RS bearing reaches 0.15 mm radial play at 3.2 years, triggering the "excessive lateral drift" alarm on the control board. The 6206-2RS in 250 kg frames lasts 4.7 years. Replacement is a 15-minute cartridge swap on Tier 3 builds; on Tier 1 it requires frame removal and re-shimming, averaging 3.5 hours of biomedical tech time.

• Disinfection: quaternary ammonium or 0.5% sodium hypochlorite only. Hydrogen peroxide vapor >350 ppm degrades powder coat adhesion at weld zones within 18 months.
• Storage: stack frames vertically on padded racks, max 4 high. Horizontal stacking loads the rotation arms and permanently deflects the pivot yoke by 1–2 mm.
• Battery backup: cycle every 90 days. Deep-discharge below 10.5 V on the 24 V pack reduces capacity 15% per event; replacement pack cost is $85 landed.
• Caster maintenance: clean hair wrap from axles quarterly. Seized casters transfer side loads into the pivot bearing, cutting its life by 40%.

Total cost of ownership over seven years favors Tier 3 construction when biomedical labor rates exceed $65/hour. At $45/hour the breakeven moves to 5.5 years. Most private-label buyers optimize for first-container price and absorb the field service cost downstream — until a key account demands a service-level agreement that caps response time at four hours. At that point the cartridge premium looks like insurance.

Questions Buyers Ask Before Ordering

Can we run a 50-unit pilot with our branding before committing to 200+ MOQ?

Yes, but the pilot uses Tier 1 bolted-arm construction regardless of the final spec. The fixture for Tier 2/3 is not amortized at 50 units. Pilot units carry a $28/unit surcharge and a 12-week lead time. We document pivot angle repeatability on each unit (±0.5° target) so you have batch data for the volume negotiation.

What inspection data ships with each container?

Every unit leaves with a serialized test report: pivot angle at 0°, 20°, 40° left/right (digital inclinometer), actuator current draw at each limit, deck height at min/max, caster brake force, and high-pot at 1,500 V AC for 60 seconds. A summary spreadsheet with Cp/Cpk on the critical dimensions (pivot angle, deck flatness, frame squareness) is emailed before vessel departure. Photographic evidence of weld penetration on 10% sample is available on request.

How do you handle firmware updates on the control board after delivery?

The control board exposes a USB-C service port under a sealed cover. Updates are delivered as signed .bin files; the pendant walks the tech through a three-button sequence. No laptop or proprietary dongle required. We maintain a changelog back to v1.0 (2021) and guarantee backward compatibility for all hardware revisions shipped after 2022. Major version changes (rotation algorithm, alarm thresholds) are opt-in; safety patches auto-apply on next power cycle if the board detects a connected pendant.

What is the realistic lead time for a 300-unit repeat order with custom color?

Six weeks from purchase order if the color is in the standard RAL palette and powder is in stock. Add two weeks for a non-stock RAL (minimum 200 kg powder lot). Add three weeks if the order includes any right-column customization from the table above. We hold safety stock of actuators, casters, and control boards for 18 months after last shipment to your SKU.

Can the bed integrate with our existing nurse call system?

The control board provides two dry-contact relays (bed exit, rotation alarm) rated 24 V DC / 0.5 A. Pinout matches the IEC 60601-2-52 annex for nurse call integration. We supply the mating connector and 3 m cable; your installer terminates to the hospital's bus. No protocol translation — it is a simple contact closure. If your system requires CAN bus or Modbus, that is a $110 board upgrade and a four-week firmware validation.
