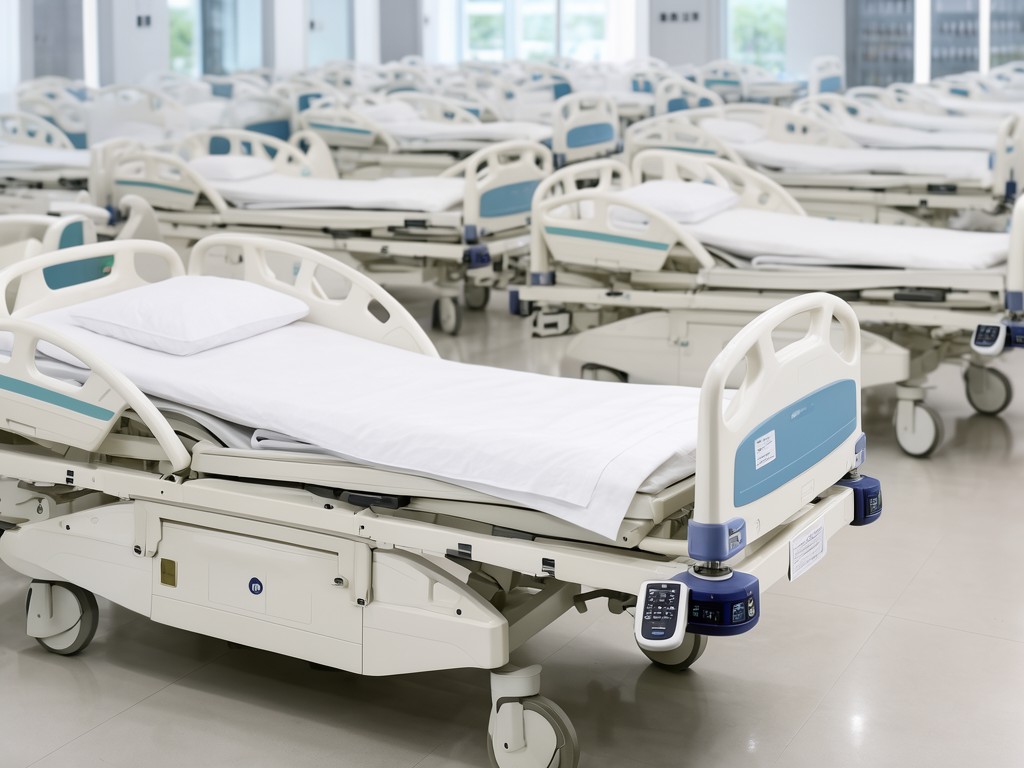

Specifying China electric rotating hospital beds with remote control Exporter for Wholesale and OEM Orders
Tooling amortisation decides the cost floor for every configuration; a welded steel frame that shares jigs across three bed widths reduces per‑unit set‑up by roughly 12 % compared with dedicated fixtures.
Replacement rate, not unit price, drives total cost of ownership once a fleet exceeds 200 beds; a motor rated for 30 000 cycles cuts warranty claims by half versus a 15 000‑cycle alternative.
Scope of Supply and Physical Form
Each shipment includes the frame, two articulated sections, a DC linear actuator set, a handheld remote, and a medical‑grade vinyl mattress cover; optional side‑rail kits and IV pole brackets are packed separately.
| Parameter | Range |
|---|---|
| Overall length (mm) | 2100 – 2250 |
| Width (mm) | 900 – 1050 |
| Height adjustment (mm) | 450 – 800 |
| Net weight (kg) | 85 – 110 |
| Load rating (kg) | 250 – 300 |
Comparing Two Standard Configurations
Configuration A – Standard Actuator
Single 24 V DC motor per section, 150 mm stroke, 30 000‑cycle rating. Remote uses 433 MHz RF with 10 m range.
Best suited for general wards where articulation speed of 15 mm/s meets patient‑turn schedules.
Configuration B – High‑Torque Actuator
Dual 24 V DC motors per section, 180 mm stroke, 50 000‑cycle rating. Remote adds Bluetooth pairing for nurse‑station integration.
Chosen for ICU bays where 25 mm/s articulation and redundant drive reduce manual intervention.
Matching the Buyer's Need
Procurement officers typically lock in a frame width that matches existing corridor clearances; a 950 mm frame fits 1 m doorways without modification, while 1050 mm frames require doorway widening.
If the fleet will be serviced by a single biomedical team, standardising on Configuration A simplifies spare‑part stocking; the motor part number is common across all bed sizes.
For tenders that specify a minimum 5‑year warranty, Configuration B’s 50 000‑cycle motor aligns with the required service life without extra cost for extended coverage.
Assumptions Buyers Should Stop Making
Assuming the remote control works through all building materials leads to field failures; reinforced concrete walls attenuate 433 MHz signals by >30 dB, so a Bluetooth bridge is mandatory in multi‑storey facilities.
Assuming the mattress cover is interchangeable with any brand ignores the zipper‑track tolerance; a 2 mm mismatch creates pressure‑point leaks that fail infection‑control audits.
Customisation Options and Their Limits
Powder‑coat colour can be specified from the RAL palette; each new colour adds a 5‑day cure cycle and a minimum order of 50 frames to justify the batch.
Side‑rail length can be trimmed in 50 mm increments; however, shortening below 600 mm removes the mandatory grab‑bar mounting points required by most national regulations.
Branding plates are laser‑etched on the headboard; artwork must be supplied as vector PDF with 3 mm bleed, and the plate thickness is fixed at 1.5 mm to retain structural integrity.
Export Packaging and Handling Protection
Frames are bolted to a plywood pallet with four corner brackets; each bracket is torqued to 12 Nm to prevent shift during container roll.
Actuators and remotes are sealed in anti‑static polyethylene bags with desiccant sachets; the bags are heat‑sealed and labelled with batch QR codes for traceability.
Mattress covers are rolled, not folded, to avoid crease‑induced delamination; they are wrapped in a moisture‑barrier film rated for 90 % RH at 40 °C.
Request a pre‑production sample to validate frame dimensions, motor torque, and remote range in your facility.
