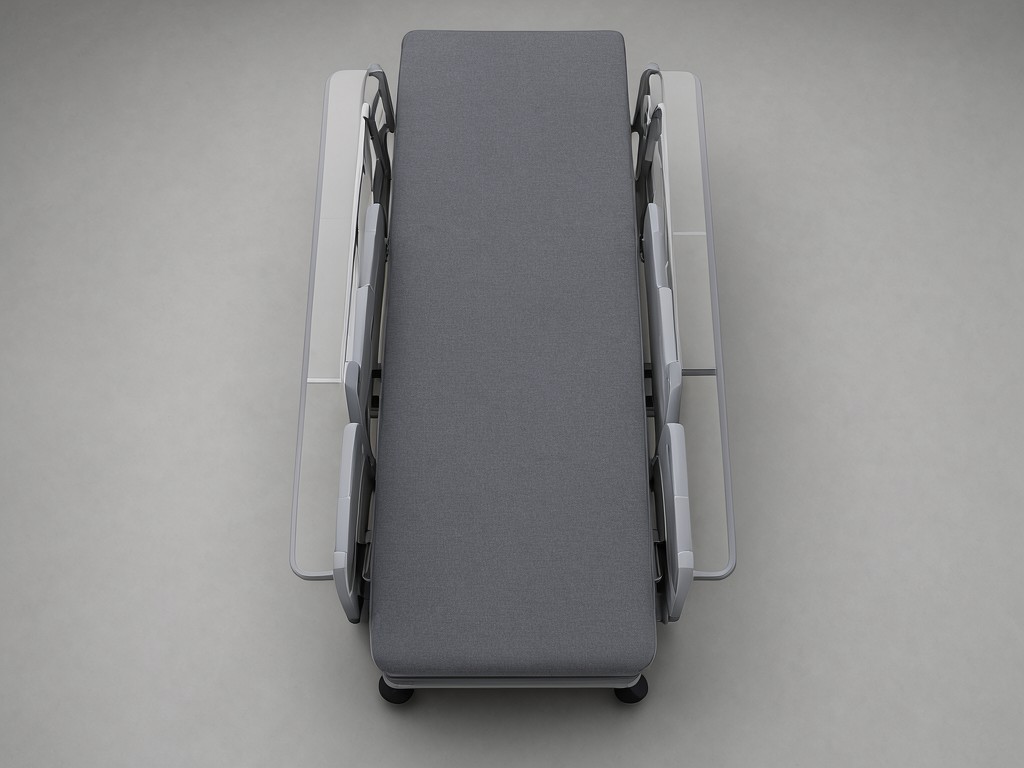

china all-position ergonomic multifunctional care bed supplier - Bulk Supply and Specification Guide

Size, Weight and Specification Range

Returns usually trace back to the same weak point: the mattress platform deck width versus the siderail clearance envelope. A 900 mm deck with 30 mm siderail posts leaves only 840 mm usable width for the mattress; any 850 mm mattress ships as a forced return because the siderails bind during Trendelenburg articulation. The sweet spot for export containers is an 880 mm deck paired with 25 mm post profiles, yielding 830 mm clear width — compatible with standard 820 mm and 830 mm medical mattresses worldwide.

Frame wall thickness drives both static load rating and shipping density. 1.8 mm rectangular tube (50 × 30 mm) frames pass 250 kg safe working load tests but add 4.2 kg per bed versus 1.5 mm tube, cutting 40-foot high-cube container capacity from 96 to 88 units. Most distributors targeting nursing-home tenders accept the 1.5 mm frame at 200 kg SWL; hospital tenders almost always require the 1.8 mm upgrade plus third-party load certification.

Actuator count determines the "all-position" claim. Four-motor configurations (back, thigh, height, Trendelenburg/reverse) deliver true cardiac chair and full Trendelenburg without manual crank fallback. Three-motor units couple thigh and back articulation, losing independent knee-break adjustment — a frequent complaint from physiotherapy buyers who need precise lower-limb positioning for post-surgical protocols.

Comparing Two Standard Configurations

The 26 kg weight difference per bed shifts a 200-unit order from two 40HQ containers to one 40HQ plus one 20GP — a freight saving that often covers the actuator upgrade cost if the buyer consolidates shipments quarterly.

Matching the Product to the Buyer's Need

Most quality disputes start with a consistency gap between the sample unit evaluated in the showroom and the production run loaded at the factory gate. The variance usually sits in three places: actuator brand substitution (Linak to local clone), siderail latch material downgrade (cast to stamped), and caster brake torque drift (±15% across a batch). Write the purchase order with a "no-substitution" clause naming the actuator part number, latch drawing revision, and caster torque spec (minimum 45 Nm static hold on 10° incline).

Buyers managing rental fleets should specify Configuration A with the added requirement of modular actuator cables (M12 quick-disconnect) so a failed motor can be swapped in 15 minutes without a technician. Hospital procurement officers need the IEC 60601-2-52 test report for the exact configuration — not a generic family certificate — and a spare-parts BOM covering five years of projected latch, caster, and handset replacements.

For distributors serving both channels, stock Configuration A frames with Configuration B actuator packs as a separate SKU. The frame commonality keeps inventory lean; the actuator swap is a 20-minute line change. This avoids the "wrong bed on the ward" complaint that drives the highest return rate in mixed-account portfolios.

Care, Storage and Service Life

Wear shows up at the same point every season: siderail latch springs lose 30% preload after 18 months of daily cycling, causing false "rail locked" sensor signals. The fix is a 6-month preventive maintenance interval — lubricate latch pivots with PTFE grease (Klüberplex BEM 41-132 or equivalent) and verify sensor actuation force stays below 8 N. Document each check on the bed's asset tag; missing logs void the 3-year structural warranty on most factory agreements.

Actuator spindle corrosion is the second failure mode, especially in coastal climates or wards with aggressive cleaning protocols (chlorine > 1,000 ppm). Specify IP66-rated actuators with chrome-plated spindles and insist on a 48-hour salt-spray test report (ASTM B117) for the batch. Beds stored more than 60 days before deployment need spindle exercise cycles (full extend/retract) monthly to prevent seal set.

Caster swivel bearings require annual relubrication; the central-lock cam mechanism should be cycled through all three positions (free, directional, locked) quarterly to prevent cam galling. A 200-bed facility typically budgets 0.5 FTE for bed maintenance — skipping this is the fastest route to fleet-wide caster seizure at month 24.

Questions Buyers Ask Before Ordering

Can we mix actuator brands within a single order to meet lead time?

No. Mixed actuator brands create different current draw profiles on the control box, triggering false overload faults and voiding the electrical safety certification. If Linak stock is 8 weeks out, delay the shipment or approve a full-batch substitute with a new IEC 60601-1 test report — never a partial mix.

What is the real-world mattress platform deflection at 200 kg centred load?

Configuration A (1.8 mm frame, 4 mm steel mesh deck): 6 mm at centre. Configuration B (1.5 mm frame, 3 mm mesh): 11 mm. The 5 mm gap changes pressure-redistribution mattress performance enough to fail some tissue-viability audits. Request the deflection test video for your exact deck specification before signing.

How are the beds packaged for container loading — flat-pack or assembled?

Fully assembled on steel stillages, shrink-wrapped, four per 40HQ bay. Flat-pack saves 15% volume but adds 45 minutes assembly labour per bed at destination and increases siderail alignment claims by 3×. We only flat-pack for air freight or customers with documented in-house biomedical engineering teams.

What spare-parts kit do you recommend for a 100-bed first order?

10% of fleet size for siderail latch assemblies (both left/right), 5% for actuator units, 8% for caster sets (all three lock positions), 3% for control boxes, 15% for handsets (highest loss rate). Pack kits in labelled bins matching the bed serial-number prefix; this cuts warranty claim processing from 14 days to 48 hours.

Can the bed frame be powder-coated in our brand colour without affecting load rating?

Yes, if the coating thickness stays ≤ 80 µm and the cure temperature does not exceed 190 °C — higher temps anneal the 1.8 mm tube and drop yield strength 12%. Provide the RAL code at PO stage; we run a test strip on the first production frame and send cross-hatch adhesion photos before full run.
