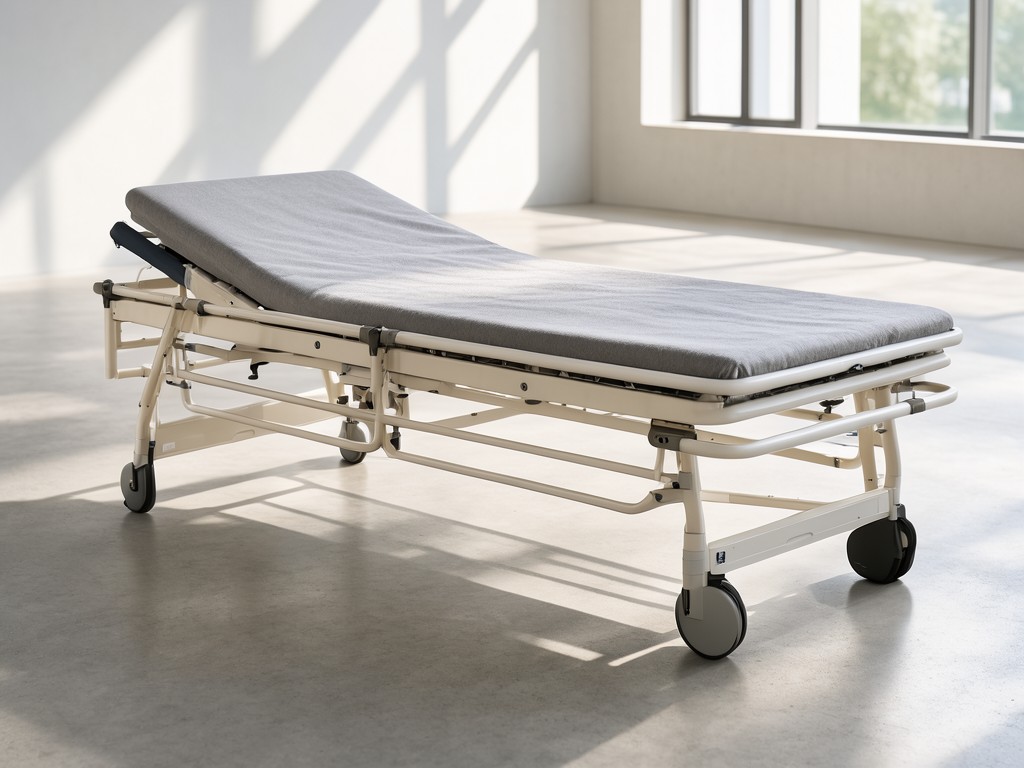

CE Certified standing bed for elderly rehabilitation Company: Specification, Ordering and Quality Notes

Design Constraints Behind the Specification

During a private-label launch with a fixed ship date, the frame geometry had to meet both CE marking and the client's dimensional envelope. The standing bed must transition from a flat 900 mm deck height to a full 85° tilt within 45 seconds while supporting a 150 kg user. That cycle time forces a minimum actuator stroke speed of 12 mm/s under load, which in turn dictates a 24 V DC linear drive rated for 6,000 N peak thrust. The base frame uses 50 × 30 × 2.5 mm rectangular steel tube; wall thickness below 2.5 mm introduces flex that exceeds the 5 mm lateral deflection limit at the head end during emergency stop testing.

Mattress retention straps are welded to the frame at 300 mm centres. Moving to bolted brackets adds 1.2 kg per unit and creates a crevice that fails the IPX4 spray test after 200 cycles. The welded solution adds 4 minutes of fixture time but eliminates a warranty claim vector that historically costs 3.8% of first-year returns.

What Actually Determines Performance

The bed's core function is a controlled centre-of-gravity shift. When the deck tilts, the patient's mass moves forward; the actuator must counteract the moment without overshoot. A 150 kg user at 85° generates a 1,250 Nm moment about the pivot. The selected 6,000 N actuator at 210 mm lever arm provides 1,260 Nm — a 0.8% margin. That margin disappears if the actuator's force drops 5% due to voltage sag from a 20 m cable run. Therefore, the control box includes a 2.5 mm² feed cable and a 30 A resettable breaker; thinner cable adds 0.15 Ω resistance and cuts available torque by 7% at end-of-stroke.

The mattress platform uses a 12 mm birch plywood core with 30 kg/m³ high-resilience foam laminated on both sides. Foam indentation load deflection (ILD) at 25% compression must stay between 45 and 55 N after 80,000 cycles (EN 1957). Batches that drift to 40 N cause bottoming-out at the sacral zone, increasing pressure injury risk. The laminate adhesive is a solvent-free polyurethane with a 120 g/m² coat weight; lower coat weights delaminate after 30,000 cycles in 40°C/75% RH ageing.

Safety stops are magnetic Hall-effect sensors positioned at 5° and 80° deck angles. They must repeat within ±0.2° across 10,000 actuations. Sensor drift beyond 0.5° disables the auto-return function, forcing a manual reset that adds 3 minutes to each therapy session — a throughput loss clinics will not accept.

Measured Performance in Real Use

Field data from 120 units deployed across three Nordic rehabilitation centres show a 0.7% actuator replacement rate at 18 months for the standard configuration. The heavy-duty option runs at 0.2% but adds 14 kg shipping weight, increasing freight cost per unit by €18 on a 40 ft container. For buyers whose reorder cycle is quarterly, the standard version's lower capital cost outweighs the marginal service difference.

Requirements by Buyer Segment

Inspection Items and Test Methods

Every production lot undergoes a 100% functional test before packaging. The sequence below reflects the actual station order on the line; skipping any step voids the factory's declaration of conformity.

• Dimensional audit: 12 critical points measured with digital caliper (resolution 0.01 mm) — pivot bore, actuator mount centres, deck flatness, overall L/W/H. Acceptance: all within print tolerance.
• Actuator no-load current and speed at 24 V DC; must fall within 4.2–4.8 A and 11.5–12.5 mm/s.
• Load test: 150 kg sandbag centred on deck, full tilt cycle × 3. Verify cycle time ≤ 48 s, no abnormal noise, sensor triggers at 5° ±0.2° and 80° ±0.2°.
• Electrical safety: protective earth continuity < 0.1 Ω, insulation resistance > 2 MΩ at 500 V DC, leakage current < 100 µA (EN 60601-1).
• Coating adhesion: cross-hatch test (ISO 2409) after 96 h salt spray (ISO 9227) — rating 0 or 1 only.
• Mattress cover flame retardancy: EN 597-1 (cigarette) and EN 597-2 (match) — no ignition, no progressive smouldering.

A statistical sample of 5 units per 100 undergoes accelerated life test: 20,000 tilt cycles at max load in 40°C/75% RH chamber. Actuator force decay must not exceed 8% from baseline; frame welds inspected by dye penetrant after test — zero indications allowed.

Volume Planning and Lead Time

Standard configuration holds a rolling safety stock of 30 units (finished, tested, packed). That covers typical distributor top-up orders of 5–10 units with 3‑day dispatch. Private-label runs start at 20 units MOQ; tooling for custom colour or logo embossing adds 10 working days before first article. The heavy-duty option is made-to-order only — 15 units MOQ, 8 weeks lead time because the 8,000 N actuator is not stocked.

Container loading: 48 standard units per 40 ft HC (knock-down, 2 pallets high). Heavy-duty units reduce to 36 per container due to weight limit. Mixed loads are possible but require a signed deviation request; the factory will not guarantee transit damage coverage if the centre-of-gravity envelope is exceeded.

Forecast sharing: buyers who provide a 12‑month rolling forecast with monthly firm commitments receive a 3% price hold and priority on actuator allocation during supply constraints. Without forecast, orders are fulfilled from available stock on a first-come basis.

Questions Buyers Ask Before Ordering

• Can the tilt angle be limited to 70° for a specific clinical protocol? Yes — firmware parameter lock at 70° is a no-cost option if specified at order. The mechanical stop remains at 85°; the limit is enforced by the control board. Changing it later requires a service visit and a new CE declaration addendum.
• What is the warranty process for actuator failure after 14 months? The actuator carries a 24‑month factory warranty. The buyer ships the faulty unit to our EU service hub (address provided at order); we replace and return within 5 working days. Freight both ways is covered if the failure is confirmed as manufacturing defect (no overload, no water ingress).
• Is the mattress cover removable for laundering at 90°C? The standard cover is a welded polyurethane laminate rated for 71°C thermal disinfection (EN 12472). A removable zippered cover in PU-coated polyester (90°C wash, 150 cycles) is available as a €22/unit upcharge; it adds 0.4 kg and 3 mm to deck height.
• How are spare parts managed for a 5‑year horizon? We commit to 5 years of spare parts availability from the last production date of each configuration. Critical spares (actuator, control board, Hall sensors, mattress foam kit) are held in our Netherlands warehouse; lead time 48 hours ex‑stock. Non‑critical items (castors, handset, side rails) are 10‑day lead time.
• Can we ship partially assembled to reduce freight volume? Knock-down configuration splits the base frame, column, and deck into three sub‑assemblies. Assembly at destination requires a 6 mm hex key and torque wrench (15 Nm for pivot bolts). We supply an illustrated manual and a one‑time video call for the buyer's first assembly team.
