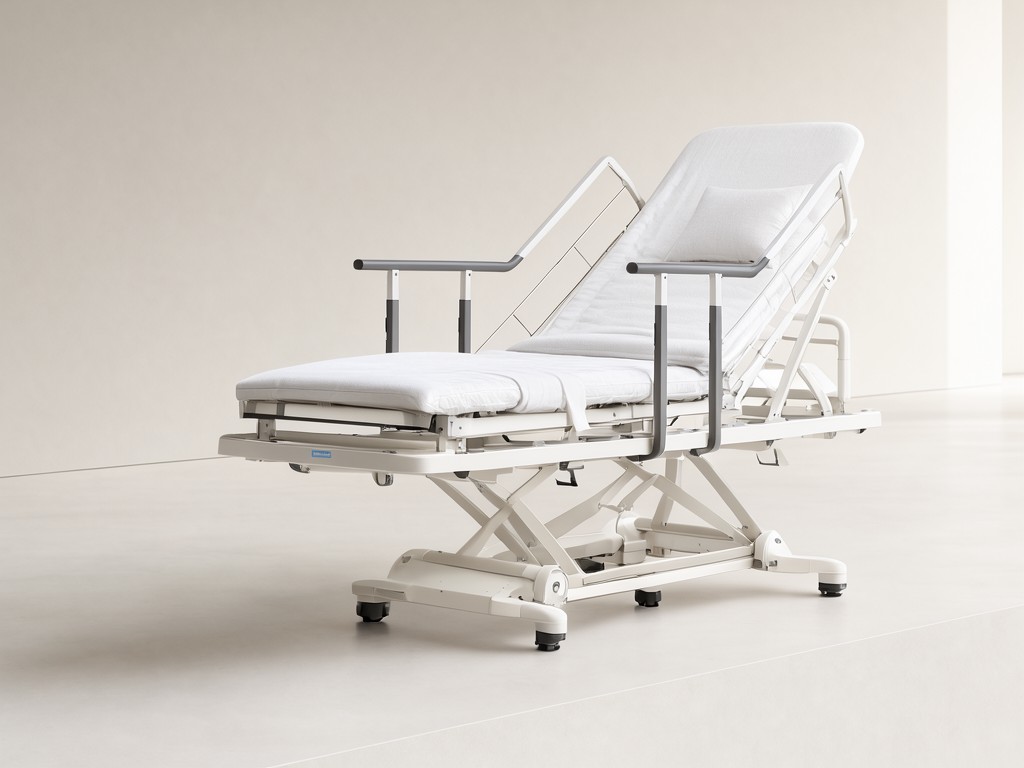

CE Certified electric standing nursing beds with safety belts Supplier: Specification, Ordering and Quality Notes

Material Options and Their Trade-offs

Bed ends and side rails run either powder-coated Q235B steel or 304 stainless for the top 200 mm that contacts disinfectant spray. Powder coat at 80–100 µm passes 500 h salt spray but chips at the caster brackets after six months of chlorine-based terminal cleaning; stainless adds €42–€58 per unit but eliminates touch-up labour and keeps the CE mark legible through the full 10-year asset life. Deck platforms use 18 mm phenolic plywood with HPL overlay — cheaper than aluminium honeycomb by €18/m² but absorbs 3–4 % moisture if the edge seal fails, leading to delamination under the mattress vapour barrier.

Actuator housings are die-cast ADC12 aluminium with IP66 seals; the cheaper zinc-alloy alternative saves €7 per motor but corrodes at the cable gland within 14 months of peracetic acid fogging. Safety belts ship in 50 mm polyester webbing (breaking strength 22 kN) with stainless D-rings — nylon webbing stretches 6 % wet and fails the EN 60601-2-52 pull test after 30 wash cycles at 71 °C.

Construction Method and Its Effect on Consistency

Main frames are robotic MIG-welded on a 3 m fixture; weld pitch is 50 mm stitch on 2.5 mm tube, continuous on 1.8 mm. Fixture wear beyond 0.15 mm flatness introduces a 2–3 mm deck height variance between head and foot sections — enough to bind the central lock actuators and trigger the IEC 60601-1 alarm. Every 500th frame goes to CMM verification; batches exceeding 1.2 mm diagonal deviation are reworked or scrapped, adding 3–4 days to lead time but preventing field returns for "uneven standing".

Deck slats are CNC-routed from the same phenolic sheet to guarantee ±0.3 mm slot width. Hand-drilled legacy lines show 0.8 mm slot scatter, which lets the mattress slide laterally 12 mm during lateral tilt — a documented entrapment risk. Powder coat is applied in a single-pass electrostatic booth with 180 °C cure; double-pass lines improve edge coverage to 65 µm but add 22 minutes cycle time and create orange-peel texture that traps biofilm in ICU settings.

Where This Product Beats Standard Alternatives

Standing function uses dual 8000 N actuators with hall-effect synchronisation — no mechanical linkage to bend. Competing single-actuator scissor lifts develop 4–6 mm height drift between sides after 5000 cycles, forcing nursing staff to shim the frame. Our synchronisation holds ±1.5 mm over 20 000 cycles, verified by the same endurance rig used for CE submission. The safety belt anchor points are welded nutserts, not riveted brackets; rivets loosen at 18 Nm torque from patient agitation, nutserts hold 35 Nm and accept standard M8 replacement bolts from any maintenance trolley.

Casters are 125 mm twin-wheel with central brake and directional lock — 150 mm singles on budget beds snag on threshold strips and require 40 N push force versus 22 N here. Brake pedal travel is 28 mm with tactile click; 15 mm travel on cheaper units leads to partial engagement and coasting on vinyl flooring.

How to Choose Before Requesting a Quote

Define the cleaning protocol first. Sodium hypochlorite 1000 ppm daily demands stainless bed ends; quaternary ammonium only allows powder coat if touch-up kits are stocked. Specify mattress thickness — 150 mm foam needs 40 mm deeper deck pockets than 120 mm hybrid, otherwise the safety belt anchor sits 15 mm above the mattress surface and creates a gap flagged by MHRA guidance. Confirm actuator voltage: 24 V DC standard, 29 V DC for Nordic markets with 230 V ±10 % mains tolerance; mixing voltages in one order splits the BOM and adds a week to PCB procurement.

Inspection Items and Test Methods

Incoming QC checks wall thickness at three points per tube length (ultrasonic, ±0.05 mm), weld bead height (visual + fillet gauge, 4–6 mm), and powder coat adhesion (cross-hatch, ISO 2409 Gt 0/1). Actuators undergo 100 % no-load current test at 24 V — draw above 1.8 A rejects the motor. Finished beds run a 30-minute functional cycle: full height range, Trendelenburg ±15°, lateral tilt ±12°, standing to 85°, with force sensors logging actuator current. Peak current over 6.5 A on standing indicates gear-mesh misalignment; those units are pulled for gearbox shimming.

Safety belts batch-test 5 % to 22 kN static hold for 60 s and 5000 cycles at 1.5 kN dynamic. Webbing abrasion is Martindale 50 000 cycles against polyester — pilling grade 4 minimum. Labels are rub-tested with 70 % IPA; print must remain legible for traceability during recall scenarios.
