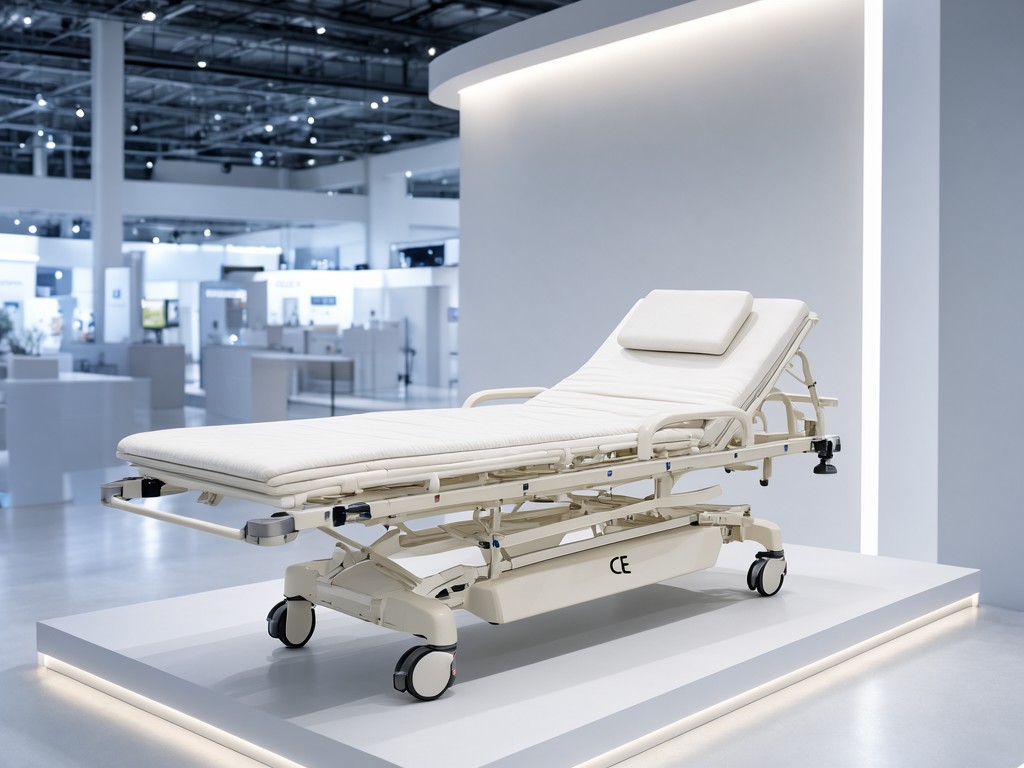

CE Certified convertible hospital chair bed for disabled factory: Specification, Ordering and Quality Notes

Material Options and Their Trade-offs

Hospital wards demand a frame that survives daily cleaning agents and repeated conversion cycles. The choice between cold‑rolled steel tube (1.2 mm wall) and 6063‑T5 aluminium alloy drives weight, corrosion resistance and unit cost.

Assumptions Buyers Should Stop Making

A common return reason is mechanism seizure after six months of high‑frequency use. Buyers often assume that a CE mark alone guarantees durability under continuous 24/7 operation.

Another false belief is that any medical‑grade fabric meets cleaning‑chemical resistance. In practice, only polyurethane‑coated polyester with ≥50 000 Martindale cycles survives repeated chlorine‑based disinfection without delamination.

Customisation Options and Their Limits

Brand managers often request colour‑matched upholstery and logo embossing. The feasible palette is limited to solution‑dyed fabrics that retain colour fastness after 200 wash cycles at 60 °C.

Standard PU‑coated polyester

• Abrasion ≥50 000 Martindale
• Colour fastness ΔE ≤ 2 after 200 washes
• Antimicrobial additive optional

Premium vinyl‑laminate

• Abrasion ≥80 000 Martindale
• Superior stain release, but lower breathability
• Higher unit cost (+18 %)

Logo embossing is limited to a 30 mm × 30 mm area on the backrest; larger graphics require a separate printed panel that adds 0.3 kg and a 5‑day lead‑time.

Working as a Production Partner, Not a Catalogue Supplier

Drawings, tolerances and sample sign‑off lock the cost structure before steel is cut. We require a 2D CAD file (DXF/DWG) with critical dimensions annotated, plus a physical prototype approval for the conversion mechanism.

Tooling for the gas‑spring assist is amortised over the first 500 units; ordering below that threshold incurs a surcharge of 7 % per unit. Early involvement lets us optimise the spring preload to match the exact foam density you select, avoiding a 3–5 % rework rate later.

What Gets Checked Before Shipment

Each batch passes a defined test matrix before the CE label is applied. The matrix covers structural, functional and surface criteria.

Ordering, Tooling and Lead-Time Questions

Tooling lead time is driven by mechanism complexity, not by frame geometry. Typical schedule from approved drawing to first article inspection:

• Frame welding fixtures – 3 weeks
• Gas‑spring tooling – 4 weeks
• Upholstery die‑cut – 2 weeks
• First article inspection – 1 week

Frequently Asked

• What is the minimum order quantity? 50 units for standard steel frame; 30 units if aluminium frame is selected.
• Can we supply our own fabric? Yes, provided it meets the abrasion and flame‑retardancy specs; we run a compatibility test on a 5‑piece pilot run.
• How is artwork handled? Vector files (AI, EPS) at 300 dpi, CMYK, with 3 mm bleed. We return a digital proof within 48 h.
• What warranty do you offer? 24 months on frame and mechanism, 12 months on upholstery, contingent on documented maintenance.
