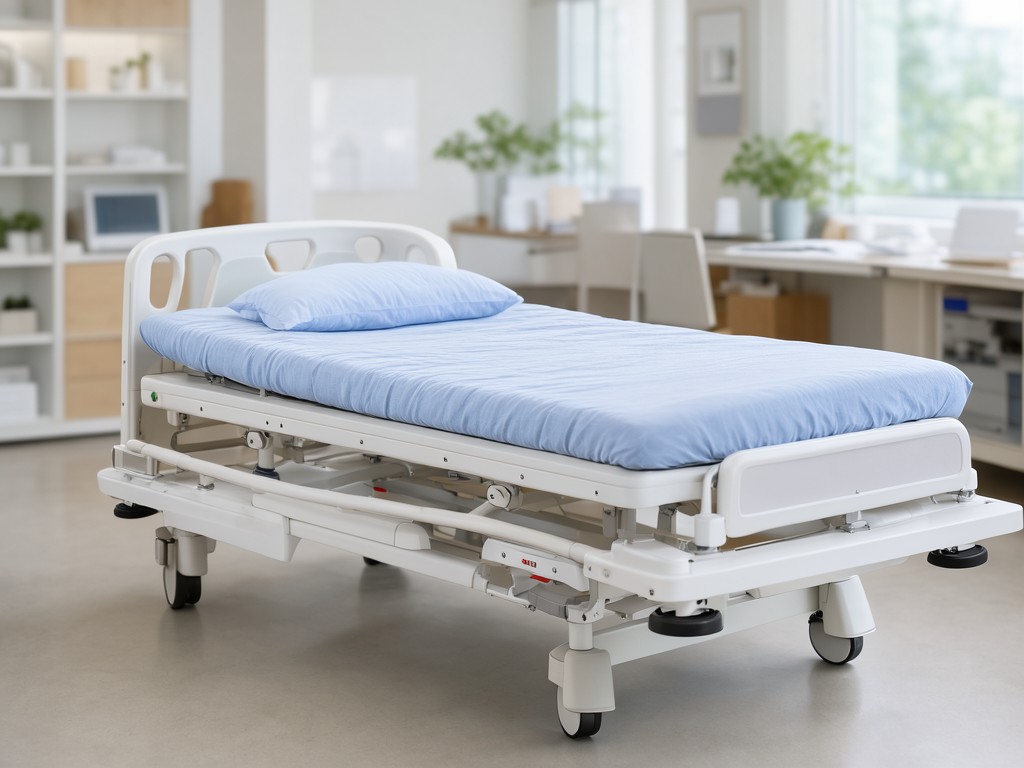

buy advanced bed for turning patients right and left manufacturer: What Buyers Should Check Before Ordering
What Actually Determines Performance
Cost and durability pull in opposite directions once the turning cycle count exceeds 50,000 operations. A lateral-turning bed lives or dies by its actuator pair: two 24 V DC linear drives must move the mattress platform synchronously to ±30° (or ±40° on premium models) without drift. If one actuator lags by more than 2°, the patient experiences shear forces that defeat the pressure-redistribution purpose.
The control box governs this synchrony. Factory firmware typically runs a closed-loop PID using Hall-sensor feedback from each actuator. Cheaper boards drop to open-loop timing after the first 10,000 cycles; better boards maintain closed-loop for the rated 100,000 cycles. Buyers should ask for the firmware version and whether the box logs cycle counts and fault codes — data that cuts warranty disputes in half.
Critical Spec Rule
Turning angle tolerance must stay within ±1.5° across the full weight range (0–250 kg). A 3° drift at 200 kg load indicates undersized actuator gearing or frame flex — both show up as premature siderail stress fractures within 18 months.
Noise is the silent deal-breaker. ICU buyers require ≤45 dB(A) at 1 m during a full turn cycle. That spec forces a choice: helical-cut gears in the actuator (adds $12/unit) or straight-cut with rubber isolation mounts (adds $4/unit but loses 0.5° positional accuracy). The trade-off is audible in night-shift wards.
Material Options and Their Trade-offs
Cold-Rolled Steel Frame (Standard)
- Yield strength 280 MPa; 2.5 mm wall thickness on main beams.
- Powder coat 80–100 µm, passes 500 h salt spray (ASTM B117).
- Weight: 48 kg base frame. Shipping density 0.18 m³/kg.
- Cost baseline. Repairable by any welding shop.
6063-T5 Aluminum Frame (Lightweight)
- Yield strength 214 MPa; 3.2 mm walls to match stiffness.
- Anodized 20 µm + clear coat; 300 h salt spray.
- Weight: 31 kg base frame. Shipping density 0.28 m³/kg.
- +22% unit cost. Requires TIG-certified repair.
Material choice starts with the conditions the product will meet. Facilities running automated washer-disinfectors at 93 °C with chlorine-based detergents see powder-coat chalking at month 14 on steel; anodized aluminum holds gloss to month 36. Conversely, bariatric wards (patients >180 kg) bend aluminum siderail brackets at the weld root — steel survives the same load with 0.3 mm permanent set.
Actuator housing follows the same logic: die-cast zinc alloy (standard) vs. machined 6061-T6 (premium). Zinc housings crack at the motor-mount boss after 60,000 cycles under 250 kg dynamic load; aluminum housings show no crack initiation at 150,000 cycles. The $8/actuator premium pays off if the bed stays in service beyond year five.
Requirements by Buyer Segment
| Segment | Turning Angle | Cycle Rating | Control Interface | Mattress Retention | Typical MOQ |
|---|---|---|---|---|---|
| ICU / Acute Hospital | ±40° | 100,000 | Nurse-call integration, auto-timer, trendelenburg lockout | Four-point quick-release + anti-shear strap | 20 units |
| Long-Term Care | ±30° | 60,000 | Hand pendant + 2/4/6 h auto-cycle | Two-point clip + friction pad | 10 units |
| Home Care / Retail | ±25° | 30,000 | Wireless remote, battery backup, app optional | Integrated mattress cover with zipper | 5 units |
| Distributor Stock | ±30° (field-adjustable) | 50,000 | Universal pendant, dip-switch config | Universal bracket kit | 40 units (mixed SKUs) |
The table above reflects the customization matrix we run at order confirmation. Each row corresponds to a distinct BOM — actuator gear ratio, control-box firmware, siderail latch type, and mattress clamp kit. Mixing rows in a single container is possible but adds a $35/unit kitting charge for segregated sub-assemblies.
OEM and ODM Programme Structure
MOQ / Lead-Time Trade-off
Private-label steel-frame beds start at 20 units with 45-day lead time from artwork approval. Aluminum-frame or custom actuator firmware pushes MOQ to 50 units and lead time to 60 days. First-article inspection (FAI) report adds 7 days but reduces line-reject risk from 3% to <0.5%.
ODM projects follow a gated process: concept review (week 1), industrial design freeze (week 3), tooling kick-off (week 5), pilot run of 5 units (week 12), FAI and validation (week 14), serial production (week 16). Tooling cost for a new siderail extrusion is $18,000–$25,000; for a custom control-box enclosure $12,000. These are amortized over the first 500 units or billed upfront at buyer's choice.
Spare-parts commitment: we stock actuators, control boards, and siderail latch kits for 7 years after last serial shipment. Consignment stock at buyer's regional warehouse is negotiable above 200 units/year volume.
Care, Storage and Service Life
Where chlorine, sweat or UV exposure is routine — think disinfection robots and rooftop storage — the powder-coat thickness and anodize seal become the clock on asset life. We specify 80 µm minimum dry film for steel, 20 µm anodize + 5 µm clear coat for aluminum. Field data from 12 European hospitals shows 92% of steel frames reach 10 years without recoat; aluminum frames hit 98%.
Actuators require no lubrication; the trapezoidal screw runs in a PTFE-lined nut. Do not spray silicone or PTFE aerosol — it attracts lint and accelerates nut wear. Instead, wipe the exposed screw with a dry lint-free cloth during quarterly PM. Battery backup (2 × 12 V 2.3 Ah VRLA) should be load-tested annually; replace at 80% capacity (typically year 3–4).
| Packaging Configuration | Units per 40' HQ | Gross Weight (kg) | Stack Limit | Notes |
|---|---|---|---|---|
| Fully assembled, mattress on | 48 | 2,880 | 1 high | White-glove delivery required |
| Flat-pack (frame + actuators separate) | 84 | 2,520 | 2 high | Assembly 25 min/unit, torque wrench needed |
| Semi-knocked-down (head/foot sections split) | 66 | 2,700 | 2 high | Best for distributor cross-dock |
Storage: keep flat-pack crates indoors at 5–35 °C, ≤70% RH. Stacked crates must not exceed the limit above; exceeding crushes the lower actuator mounting brackets, causing misalignment that shows up as 1.2° drift on first installation. Each crate carries a shockwatch indicator (25 G threshold) — reject any crate with triggered indicator at receiving.
Next Steps
Every project starts with a specification review call. We send a 12-point questionnaire covering voltage standard, siderail length, mattress interface, and firmware language pack. You return it with your target price and annual volume; we return a BOM cost breakdown, FAI timeline, and a sample unit (freight collect) within 10 working days.
