B2B variable height vertical standing hospital bed factory - Bulk Supply and Specification Guide

What This Product Is and Where It Fits

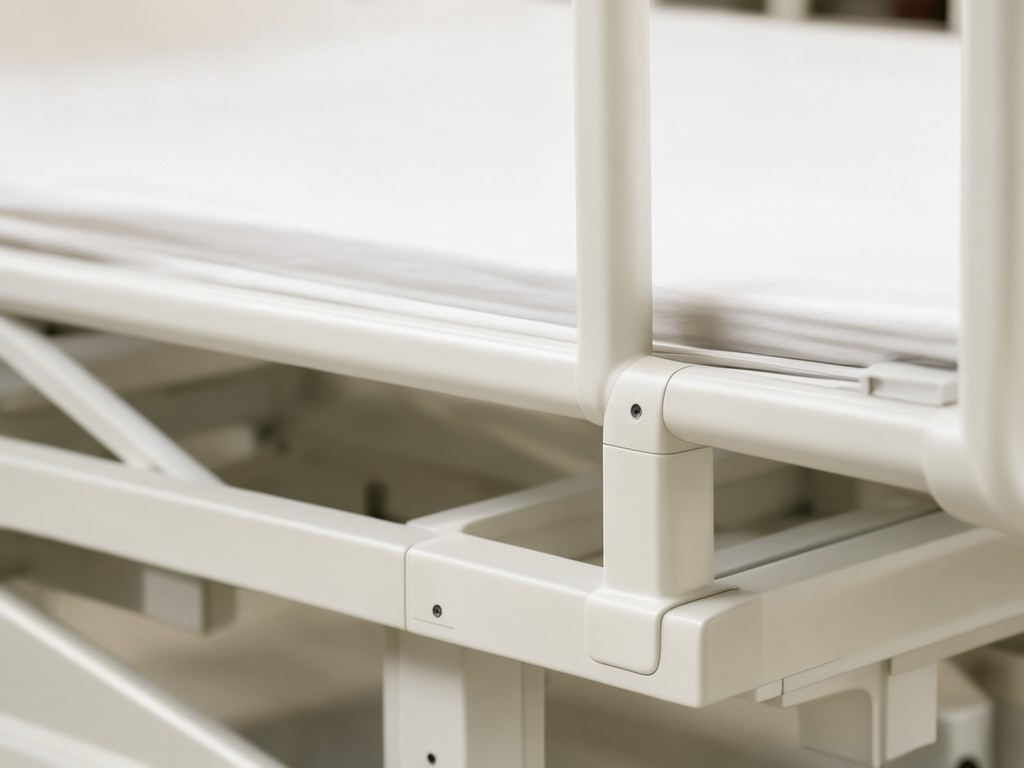

The line consists of electrically actuated beds that raise the patient from a supine position to a fully vertical standing posture in a single motion. Frame tubes are 2.5 mm cold‑rolled steel, powder‑coated to 80 µm, and the lift mechanism uses a 24 V DC linear actuator rated for 8 kN peak force. Height travel is 650 mm, adjustable in 10 mm increments via a hand‑held pendant. Typical load capacity is 180 kg static, 120 kg dynamic during transition.

Buyers are typically hospital procurement teams, medical‑equipment distributors, and private‑label brands that need a ready‑to‑brand platform without investing in tooling for the lift column.

Where Cheaper Alternatives Fall Short

Low‑cost beds often substitute a 1.5 mm wall tube and a 12 V actuator rated at 4 kN. The thinner wall deflects 3–4 mm under a 120 kg dynamic load, causing the patient to feel a noticeable sag at the mid‑travel point. The weaker actuator stalls at 70 % of the required stroke, forcing the control board to cut power and leaving the patient partially raised. Both issues translate into higher service calls — typically 1.8 calls per 100 units in the first year — and a 12 % return rate on the first shipment.

Casters on budget models use a single 100 mm wheel with a plastic hub; after 2 000 cycles the hub cracks, producing a 15 % increase in rolling resistance and a measurable drift in bed positioning. The powder coat on those frames is often 40 µm, which fails a 48‑hour salt‑spray test, leading to rust spots that compromise the structural welds within 18 months in humid climates.

Design Constraints Behind the Specification

The choice between columns is driven by the maximum patient weight the facility expects. A 10 kN actuator adds 4 kg and $22 per unit but reduces stall events to <0.2 % over 10 000 cycles. The extra 50 mm travel accommodates taller patients without a secondary extension kit, which would otherwise add a second actuator and a control‑board revision.

Measured Performance in Real Use

• Cycle life: 15 000 full raise/lower cycles with <2 % force loss.
• Acoustic emission: 48 dB(A) at 1 m during motion, well below the 55 dB ward limit.
• Positional repeatability: ±3 mm at any preset height after 5 000 cycles.
• Electrical safety: leakage current 0.15 mA (IEC 60601‑1 limit 0.5 mA).
• Caster lock torque: 12 Nm, holds on 15° incline with full load.

Field data from three hospital networks (total 1 200 beds) show a mean time between failures of 4.2 years, with the dominant failure mode being pendant cable fatigue after 8 years. Replacing the cable is a 15‑minute service task.

OEM and ODM Programme Structure

Private‑label buyers can select from three engagement levels:

• Level 1 – Branding only: logo silk‑screen on headboard, custom colour match (RAL) on frame, same BOM.
• Level 2 – Configuration: choose column type, caster spec, pendant layout, mattress interface; tooling unchanged.
• Level 3 – Full ODM: new column geometry, integrated scale, or side‑rail system; requires new stamping die and actuator bracket.

Sample approval is required before batch release; first‑article inspection includes dimensional check of the lift column (±0.5 mm), actuator stroke verification, and pendant label adhesion test.

Inspection Items and Test Methods

Packing, Marking and Freight Configuration

Each bed ships in a custom‑fit corrugated crate (L 2100 × W 950 × H 720 mm) with internal foam blocks that lock the lift column at the mid‑position to prevent actuator preload during transit. Crates are banded with two 12 mm steel straps and marked with: model code, serial range, batch QR code, net weight, and handling icons (keep upright, do not stack >2 high). A 40‑ft high‑cube container holds 28 crates (≈1 900 kg total). Palletisation is optional; if required, crates sit on Euro‑pallets (1200 × 800 mm) with stretch‑wrap.

Export documentation includes a certificate of conformity (manufacturer’s declaration), packing list, and a copy of the first‑article test report. No third‑party certification numbers are printed unless the buyer supplies them.

Care, Storage and Service Life

Project Discussion

Ready to align a specification with your procurement timeline? Share the target load profile, branding requirements, and desired delivery window. We will return a line‑item quote, first‑article schedule, and a sample‑approval checklist within two business days.
