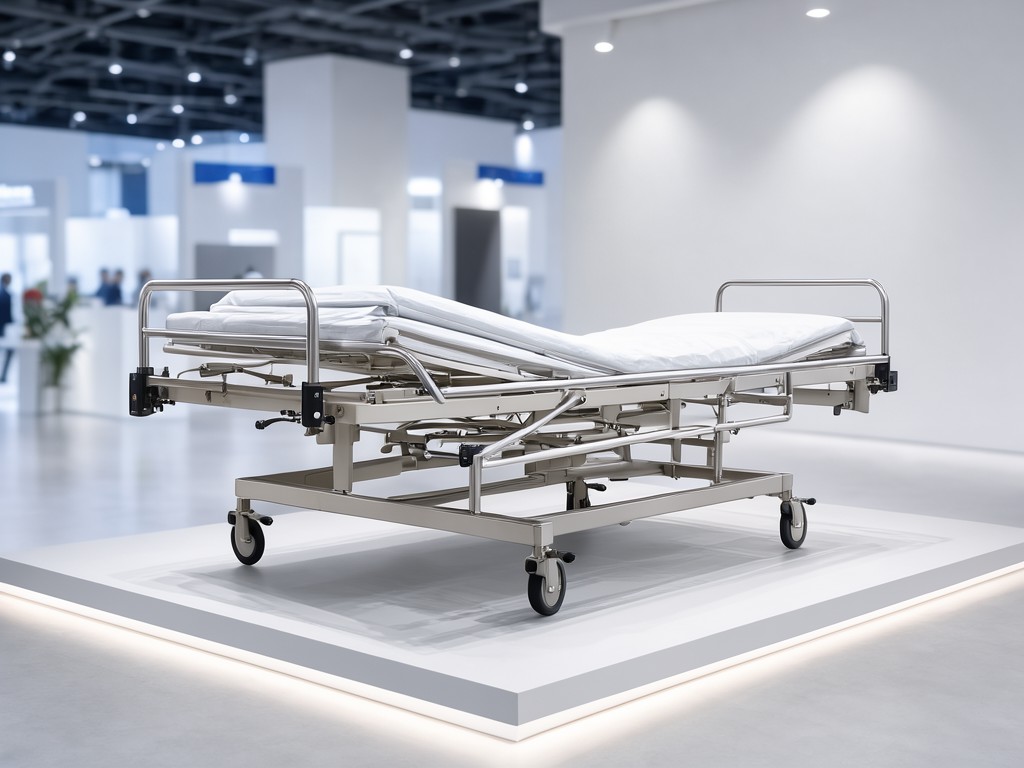

Wholesale stainless steel medical bed with folding side rails Top Supplier: What Buyers Should Check Before Ordering

What This Product Is and Where It Fits

The frame is built from 304 stainless steel tube, electropolished to a 0.2 µm Ra finish that resists chloride‑based disinfectants. Folding side rails use a gas‑spring assist with a stainless latch rated for 10 000 cycles at 150 N. Typical buyers are hospital procurement teams, long‑term‑care distributors, and OEM brands that need a second source for a 250 kg load class.

Because the bed ships flat‑packed, the critical dimension is the rail‑hinge clearance — ±2 mm on the hinge centreline keeps the rail from binding after repeated folding.

Where Cheaper Alternatives Fall Short

The cost gap is roughly 12 % per unit, but the cheaper grade adds a hidden expense: early rail‑latch failure forces a full‑bed replacement in high‑turnover wards.

Size, Weight and Specification Range

Each added feature shifts the centre of gravity slightly; the gas‑spring rail adds 1.5 kg at the head end, which must be accounted for in floor‑load calculations for older ward structures.

Assumptions Buyers Should Stop Making

Assuming every stainless bed meets the same 250 kg rating ignores the rail‑latch test — many low‑cost frames only certify the static frame, not the moving rail.

• All 304 grades are equal — 304L reduces carbide precipitation during welding, preserving corrosion resistance at the rail hinge.
• Powder coating can replace electropolish — coating wear at the pivot creates a crevice for biofilm.
• Flat‑pack dimensions are universal — rail‑hinge clearance varies with tube OD; verify the 38 mm OD spec before committing to container loading plans.

Inspection Items and Test Methods

Incoming inspection covers dimensional check (CMM on hinge centres ±0.1 mm), weld visual per AWS D1.6, salt‑spray 1000 h per ASTM B117, and a 500‑cycle accelerated latch test on a sample from each production lot. Cleaning‑chemical resistance is verified by 30‑minute immersion in 0.5 % sodium hypochlorite followed by surface roughness measurement.

Volume Planning and Lead Time

Standard configuration (gas‑spring rail, slatted platform, electropolished) runs at an MOQ of 20 units with a 6‑week lead time from approved drawing. Adding solid platform or IV‑pole mounts pushes the MOQ to 30 units and adds 1‑2 weeks for tooling set‑up. Tooling amortisation is baked into the unit price once the order exceeds 100 units; below that threshold a one‑time tooling surcharge of US$1 200 applies.

If you need a private‑label badge, allocate an extra 5 days for laser‑etch artwork approval before the first production run.
