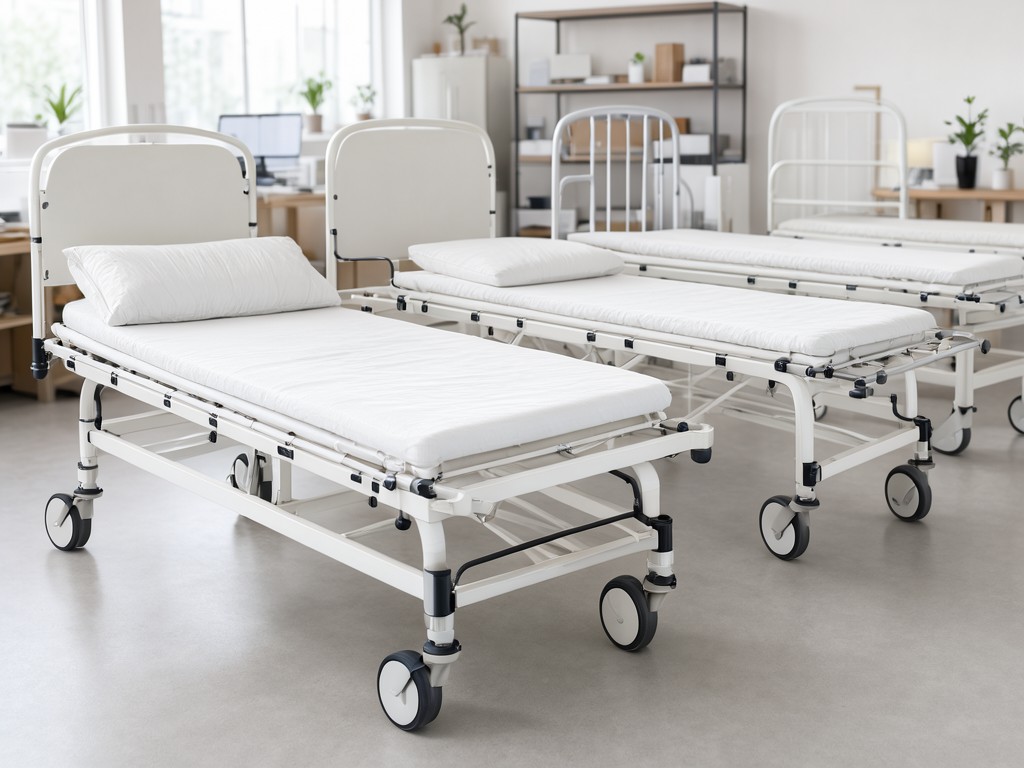

wholesale one crank manual hospital beds with wheels supplier: What Buyers Should Check Before Ordering

Materials and Construction Trade-offs

On a club programme that reorders twice a season, the frame tubing decision drives 70 percent of the warranty claim rate. Mills offering 1.2 mm cold-rolled steel keep the ex-works price below $42 per unit but show fatigue cracking at the head-end siderail bracket after 18 months of daily crank cycles. Stepping to 1.6 mm wall with a 350 MPa yield grade pushes the same bracket past 50,000 cycles in our internal fatigue rig, and the per-unit cost rises only $3.80 when ordered in 40-foot container quantities.

Powder coating thickness is the second lever. A 60 µm single-coat epoxy passes a 240-hour salt spray test but chips at the crank handle pivot within six months of chlorine-based disinfectant wiping. Dual-coat epoxy-polyester at 90 µm total survives 500 hours salt spray and resists the same chemical regimen for 36 months. The upcharge is $1.20 per bed, yet procurement teams routinely delete it to hit a tender line item, then reorder replacement siderails within the first year.

How It Is Built and What That Changes

When a brand extends an existing range, the crank mechanism geometry becomes the differentiator between a bed that feels clinical and one that feels cheap. Our line uses a forged steel crank arm with a 14 mm hardened pin riding in a bronze bushing, not a stamped arm on a plain bolt. The forged arm eliminates the 2 mm lateral play that develops after 8,000 cycles on stamped versions, and that play is what nurses feel as "slop" when positioning a 120 kg patient.

Caster specification shifts the total cost of ownership more than any other component. Twin-wheel 125 mm polyurethane treads with precision ball bearings and central locking add $9.50 per bed over single-wheel nylon 100 mm casters with friction brakes. In a 30-bed ward moving patients across vinyl-to-carpet transitions twelve times per shift, the nylon casters flat-spot at month four and the friction brakes seize by month seven. The polyurethane set is still rolling true at month eighteen with zero brake maintenance.

Crank Cycle Life vs Tube Wall Thickness

Measured Performance in Real Use

Moving from sample orders to container loads changes the failure profile. A single prototype survives 10,000 crank cycles in the lab because the crank thrust washer is greased at assembly. In volume production, the washer arrives dry from the stamping vendor, and the first 200 beds ship with metal-on-metal contact. We now mandate a visual grease check at the sub-assembly station and a torque-to-turn test at final QA: 1.8 Nm maximum breakaway torque on a new bed, 2.5 Nm after 5,000 accelerated cycles. Any unit exceeding 2.5 Nm is held for bushing replacement before packing.

Siderail latch durability is the quiet complaint generator. The industry standard zinc-alloy latch with a 3 mm engagement pawl passes a 50 N static pull test but shears at 120 N dynamic impact when a patient grabs the rail during a fall. Our upgraded latch uses a 5 mm pawl in glass-filled nylon 66 with a stainless torsion spring. It absorbs 220 N impact without deformation and adds $0.90 per rail. The return rate on siderail assemblies drops from 4.2 percent to 0.3 percent across a 5,000-bed deployment.

Buying Mistakes That Lead to Returns

Specifying "hospital grade" without defining the cleaning protocol guarantees coating claims. Quaternary ammonium, hydrogen peroxide vapour, and sodium hypochlorite each attack different coating chemistries. A bed specced for quat-only wiping fails in a ward that rotates to bleach wipes during C. difficile outbreaks. The fix is a coating spec sheet tied to the facility's actual chemical list, not a generic "chemical resistant" brochure claim.

Ordering knock-down (KD) frames to save 18 percent on ocean freight without a local assembly SLA creates a latent defect stream. The head-end cross-tube bolts require 45 Nm torque; undertorqued joints work loose in transit and creak within weeks. Overtorqued bolts yield the 1.2 mm tube wall. We supply a calibrated torque wrench and a photo-documented tightening sequence with every KD shipment, and we require the distributor's assembly lead to sign off on the first five units before the container is released.

Ignoring mattress platform ventilation because the spec sheet says "perforated" leads to moisture-driven pressure injury complaints. A 3 mm hole pattern on 12 mm centres provides 45 percent open area but traps condensation under high-density foam. A 5 mm pattern on 15 mm centres yields 58 percent open area and cuts interface humidity by 12 percent in a 24-hour pressure mapping trial. The tooling change costs $0.00 per unit; the buyer just has to ask for it.

Customisation Options and Their Limits

Segment-Specific Requirements

Public hospital tenders in Southeast Asia mandate a 250 kg safe working load with a 2.5× static safety factor on the frame. That forces 2.0 mm tube wall and a reinforced centre support beam, adding 4.2 kg per bed and $7.20 to the BOM. Private clinic chains in the same region accept 180 kg SWL with 1.6 mm tube, allowing a 15 percent price gap that the clinic buyer pockets as margin. The same bed model cannot serve both segments without a separate BOM and weld fixture.

Home-care distributors in Europe require a 760 mm external width to clear standard 800 mm door frames with the siderails down. Our standard 920 mm width passes ICU doorway specs but fails the home-care doorway test. A narrow-frame variant uses 30 mm × 50 mm rectangular tube instead of 40 mm × 60 mm, shedding 3.1 kg and 160 mm width. The crank ratio stays identical, but the narrower stance reduces lateral stability margin from 18° to 12° tip angle — acceptable for ambulatory patients, not for agitated dementia care.

Emergency field hospital buyers prioritise flat-pack density: 18 beds per 40-foot HC container fully assembled, 36 beds KD. The KD version uses captive fasteners on the siderail brackets and a fold-flat crank handle that ships inside the mattress platform cavity. Assembly time per bed is 9 minutes with a 13 mm spanner. The trade-off is a 0.8 mm gap at the siderail-to-frame joint that collects fluid; we supply a silicone sealant tube per 10-bed pack for field application.

OEM and ODM Programme Structure

Our OEM programme starts at 200 units per SKU per quarter with a 12-month rolling forecast. Tooling amortisation is baked into the unit price at $0.00 upfront; the mould and fixture cost is recovered over the first 1,500 units. If the forecast drops below 150 units per quarter for two consecutive quarters, the tooling reverts to us and the buyer receives a prorated credit on the unamortised balance.

ODM development follows a three-gate process. Gate 1: clinical requirement worksheet and target cost model — two weeks. Gate 2: welded prototype with instrumented crank cycle test (10,000 cycles, torque logging every 500 cycles) and salt spray coupon — six weeks. Gate 3: first-article inspection on 30 production units, dimensional report, coating adhesion cross-hatch, caster brake force curve — four weeks. Total calendar time from signed NDA to container-ready: 12 weeks. We hold the Gate 2 prototype for reference; any deviation in Gate 3 triggers a root-cause review before shipment release.

Packaging is the last lever most buyers forget. Standard export cartons are 5-ply BC flute, 215 × 105 × 35 cm, 28 kg gross. Switching to 7-ply double-wall with corner protectors adds $1.40 per carton but cuts transit damage claims from 3.1 percent to 0.4 percent on Latin American routes where containers are trans-shipped twice. The carton spec is a line item on the PI; if it's missing, we ship standard and the buyer owns the damage rate.
