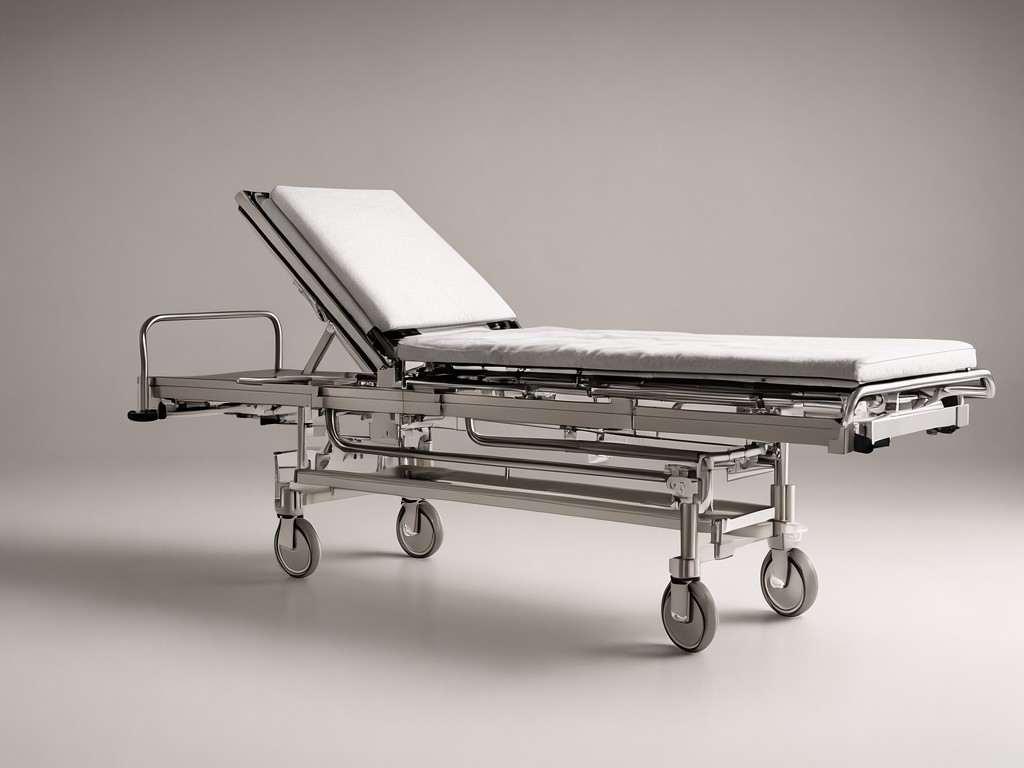

OEM stainless steel hospital examination bed with backrest adjustment Factory - Bulk Supply and Specification Guide
Where Cheaper Alternatives Fall Short
Procurement teams often select the lowest‑priced frame only to discover premature corrosion at weld seams after six months of daily disinfectant exposure.
- Thin‑wall tubing (≤1.2 mm) yields a load rating below 180 kg, causing deflection under patient weight.
- Uncoated 304 stainless shows pitting after 200 h salt‑spray, increasing cleaning labor.
- Manual crank backrests drift 15–20° under load, requiring frequent readjustment.
Measured Performance in Real Use
Key rule: a 316L frame with 1.5 mm wall thickness passes 10 000 cycle backrest actuation without force increase >5 %.
Field data from three hospital networks show the gas‑spring assist maintains a consistent 12 N actuation force across the full 0–75° range, while the powder‑coated 304 variant rises to 18 N after 3 000 cycles.
Corrosion Resistance
Salt‑spray testing (ASTM B117) on 316L samples shows no red rust after 500 h; 304 shows surface staining at 250 h.
Option Comparison by Usage Level
| Usage Tier | Frame Alloy | Wall Thickness | Backrest Actuation | Target Cycle Life |
|---|---|---|---|---|
| General ward | 304 stainless | 1.2 mm | Manual crank | 5 000 cycles |
| High‑turnover ER | 316L stainless | 1.5 mm | Gas‑spring assist | 10 000 cycles |
| ICU / isolation | 316L stainless + antimicrobial coating | 1.5 mm | Hydraulic lock | 15 000 cycles |
Select the tier that matches the daily patient throughput and cleaning protocol; the cost delta between 304 and 316L is roughly 12 % per unit but extends service life by a factor of two.
Who Uses It and Where It Matters
Public hospital procurement
Buyers require CE‑marked frames, traceable heat‑lot numbers, and a 5‑year warranty on structural welds.
Private clinic chains
Specifiers prioritize low‑noise gas springs and a 30 % weight reduction for mobile units.
Both segments demand batch‑level dimensional reports (±0.5 mm on overall length) to fit existing room layouts without re‑planning.
Working as a Production Partner, Not a Catalogue Supplier
- First‑article inspection includes 3‑D scan of frame geometry against the approved CAD model.
- Tooling for the backrest pivot is qualified at 2 000 cycles before production release.
- Artwork for laser‑etched logos is approved via PDF proof; colour‑match tolerance ΔE ≤ 2.
- Packaging spec: each bed in a corrugated crate with corner protectors, stacked 2‑high for 40‑ft container optimisation.
The approval chain – drawing sign‑off, sample sign‑off, pilot run sign‑off – locks tolerances before volume starts, eliminating costly re‑work.
Inspection Items and Test Methods
| Test Item | Method | Acceptance Criteria |
|---|---|---|
| Static load capacity | Apply 250 kg centre load for 5 min | Deflection ≤ 5 mm, no permanent set |
| Backrest cycle life | Automated 0–75° actuation at 0.2 Hz | Force rise ≤ 5 % after target cycles |
| Corrosion resistance | Salt spray per ASTM B117 | No red rust at 500 h for 316L |
| Dimensional audit | CMM scan of 12 critical points | All points within ±0.5 mm of nominal |
Test reports are issued per batch and stored for traceability; any deviation triggers a corrective‑action record before shipment.
Request a Quotation Review
Send your drawing package, target volume, and cleaning‑protocol requirements to start the first‑article approval timeline.
Contact our technical sales team
