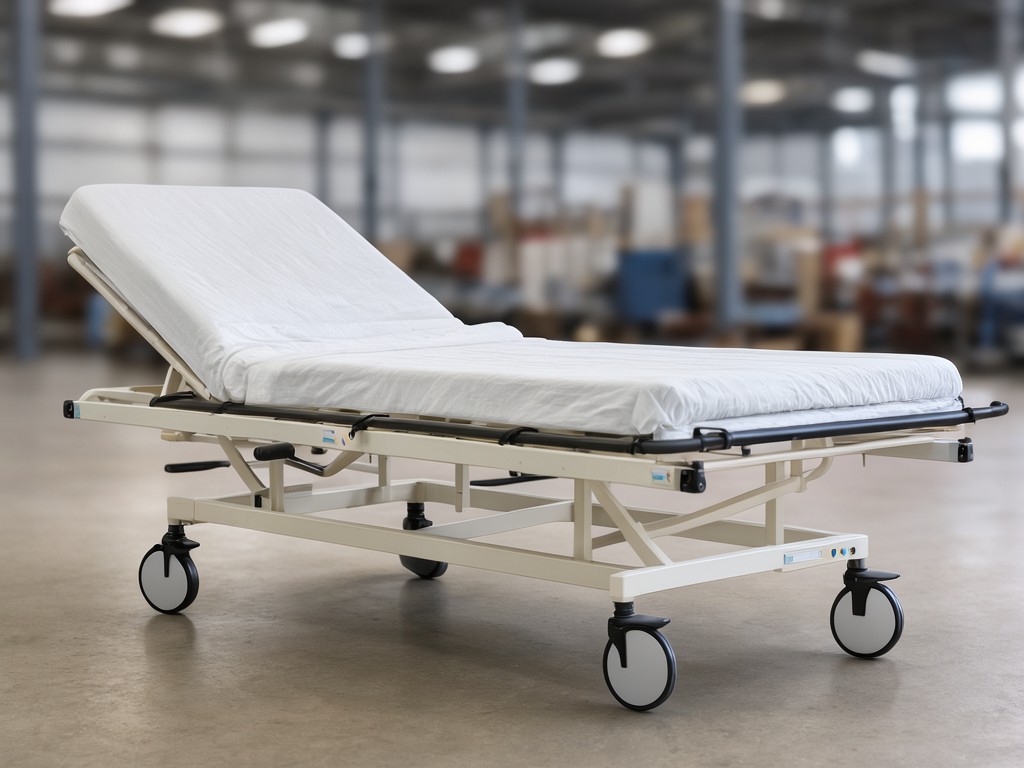

direct factory 3 crank manual medical beds with casters and mattress exporter - Bulk Supply and Specification Guide
How It Is Built and What That Changes
Consistency depends on the welded steel sub‑frame and the three independent crank assemblies that drive backrest, knee‑break and overall height. Each crank uses a hardened steel worm gear meshed with a bronze nut, a combination that resists stripping after 10 000 cycles under a 250 kg load. The powder‑coat finish is applied after shot‑blasting, giving a 70 µm film that survives 500 h salt‑spray without red‑rust.
Casters are 125 mm double‑ball‑bearing polyurethane wheels with a total lock that engages both swivel and roll. The mattress core is 120 kg/m³ high‑resilience foam, wrapped in a 0.8 mm anti‑microbial vinyl that passes ISO 10993‑5 cytotoxicity screening. Deflection under load governs the choice of 2 mm wall‑thickness rectangular tubing for the main rails; thinner tube would save 1.2 kg per bed but adds 3 mm sag at the centre after 5 years of daily use.
Specification Range and Customisation Limits
Frame
2 mm rectangular steel, epoxy powder coat 70 µm
Crank System
Three independent worm‑gear cranks, 10 000 cycle rating
Casters
125 mm PU double‑ball, total lock
Mattress
120 kg/m³ HR foam, 0.8 mm anti‑microbial vinyl
Customisation Limits
Frame colour can be any RAL code; crank handles are offered in grey or blue only. Mattress firmness steps are 30 kg/m³ increments between 90 and 150 kg/m³. Caster lock style is fixed – no brake‑only variant.
| Finish / Colour Option | Code | Typical Lead Time | MOQ |
|---|---|---|---|
| Standard white epoxy | RAL 9016 | 15 days | 20 units |
| Custom RAL colour | Per request | 25 days | 50 units |
| Anti‑microbial vinyl – grey | VIN‑GY | 15 days | 20 units |
| Anti‑microbial vinyl – blue | VIN‑BL | 15 days | 20 units |
Option Comparison by Usage Level
Standard Ward Configuration
Frame: white epoxy, 2 mm tube. Cranks: three‑gear, grey handles. Casters: total lock. Mattress: 120 kg/m³ foam, grey vinyl. Load rating 250 kg. Suited for 8‑hour turnover wards where beds are moved twice per shift.
Long‑Term Care Upgrade
Frame: custom RAL, 2 mm tube with additional gusset at head‑end. Cranks: reinforced bronze nut, blue handles for visual cue. Casters: same total lock, but with sealed bearings for low‑noise corridors. Mattress: 150 kg/m³ foam, blue vinyl, removable cover for infection control. Load rating 300 kg. Adds 4 kg per unit, extends service interval to 12 months.
Balance and load analysis shows the upgrade adds cost of roughly 12 % per bed but reduces crank‑related service calls by an estimated 60 % over a three‑year horizon.
Assumptions Buyers Should Stop Making
Assuming all three cranks share a single gear train leads to premature wear; each crank must be independently lubricated at the factory and re‑greased on site every 6 months. Believing caster lock engages only the swivel ignores the roll‑lock function that prevents drift on sloped corridors. Treating the mattress as a commodity ignores the 0.8 mm vinyl thickness – thinner covers tear during routine cleaning with quaternary ammonium solutions.
Specifying a 1 mm wall tube to save freight weight cuts material cost by 3 % but adds 5 mm centre deflection under full load, which fails most hospital procurement specs.
Usage Scenarios and Buyer Segments
Acute‑care hospitals order the standard ward configuration in lots of 100‑200 units, requiring CE‑marked packaging and batch traceability labels on each crate. Long‑term care facilities prefer the upgrade for its higher load rating and removable mattress cover, typically ordering 30‑50 units per tender. Home‑care distributors buy the standard model in mixed‑colour pallets of 20, relying on the compact knock‑down packaging that fits a 40‑ft container with 180 beds.
Each segment demands a different documentation package: hospitals need a full Declaration of Conformity and sterilisation validation; care homes request a simplified user‑manual in the local language; distributors only need a packing list and warranty card.
How Consistency Is Held Across Batches
Every production lot undergoes a first‑article inspection that measures crank torque at 0.8 Nm, caster swivel resistance below 0.15 Nm, and mattress indentation force at 30 N for 25 mm compression. Statistical process control charts track frame dimension ±0.5 mm and powder‑coat thickness ±5 µm. Non‑conforming units are segregated and re‑worked before the batch release report is signed.
A quarterly audit of the welding jig and crank‑gear hobbing machine ensures tooling wear stays within 0.02 mm, which directly limits the crank‑play variance that buyers notice as “loose handle” complaints.
Capacity, Tooling and Scheduling
The line runs two 8‑hour shifts, 22 days per month, yielding a theoretical 1 200 beds per month at the standard configuration. Tooling amortisation for the crank‑gear hobbing set is spread over 5 000 units; orders below 200 units absorb a higher per‑unit tooling surcharge of $12. Lead time for a 200‑unit order is 25 days from PO confirmation; 500‑unit orders extend to 35 days because the powder‑coat oven becomes the bottleneck.
Sample orders of 5‑10 units can be shipped within 10 days using existing fixtures, allowing buyers to verify crank feel and mattress firmness before committing to volume. The factory holds a safety stock of 30 standard white frames to accelerate urgent replenishment.
Next Steps
Request a physical sample or a detailed quotation by contacting our sales engineering team. Submit a sample request and we will arrange a 5‑unit trial shipment with full test reports.
