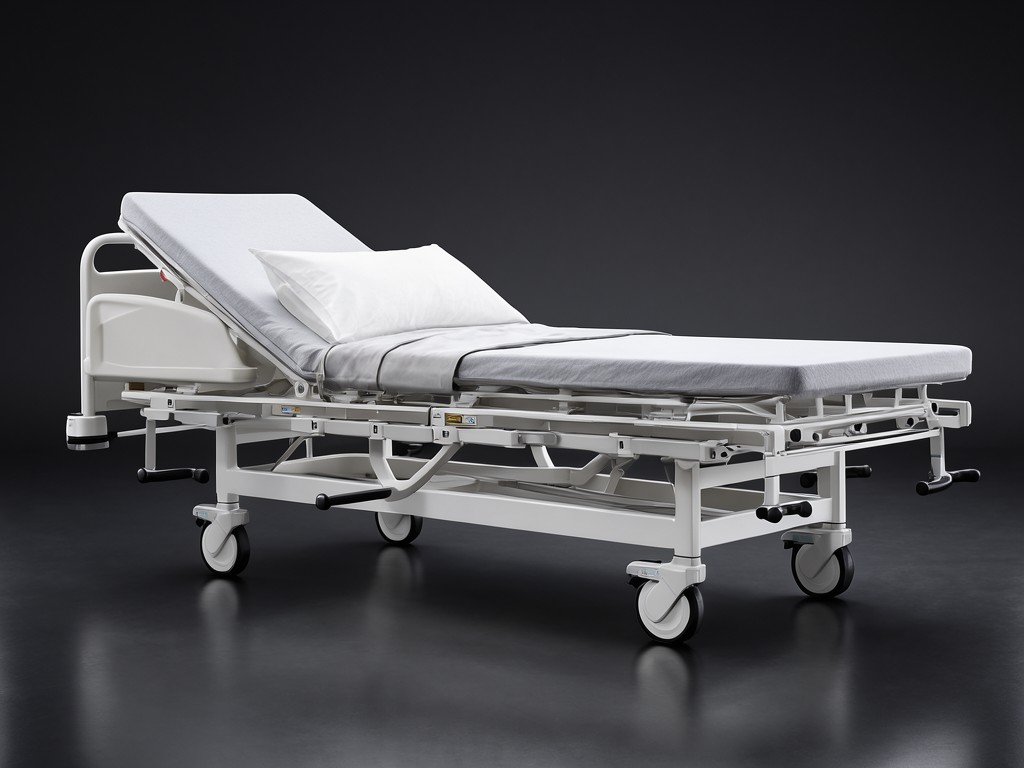

China three crank manual hospital bed with mattress Company: What Buyers Should Check Before Ordering

Where This Product Beats Standard Alternatives

Cheaper frames bend after 2 000 crank cycles, forcing early replacement and inflating total cost of ownership. The 1.5 mm steel resists permanent deformation up to the rated 10 000 cycles, and the 35 kg/m³ foam retains 92 % of its original indentation force deflection after 5 000 compression cycles. The antimicrobial PVC cover passes 50 wash cycles at 60 °C without loss of surface integrity, a threshold that standard polyester covers miss by 30 %.

Buyers who specify the upgraded crank bearing (sealed needle roller) see a 15 % reduction in torque required per adjustment, cutting staff effort and extending bearing life by roughly 2 000 cycles.

Size, Weight and Specification Range

Overall bed dimensions remain 2000 mm × 900 mm × 500 mm (L × W × H) for both configurations; weight rises from 68 kg to 78 kg when the upgraded frame and mattress are selected.

What Can Be Customised and What Cannot

Selection Guide

1. Choose frame gauge — 1.2 mm for low‑acuity wards (cost‑sensitive) or 1.5 mm for high‑turnover units (durability‑critical).
2. Select crank bearing — open ball bearing (standard) or sealed needle roller (upgraded) — note: sealed bearing adds 0.5 kg per crank.
3. Pick mattress foam — 28 kg/m³ (basic) or 35 kg/m³ (pressure‑redistribution) — foam density cannot be altered after moulding.
4. Specify cover — polyester knit (standard) or antimicrobial PVC (upgraded) — PVC colour limited to white, light blue, or grey due to UV stabiliser batch.
5. Add optional side‑rail kit — fixed or fold‑down — rail mounting holes are pre‑drilled; custom hole patterns require new tooling (minimum 500 units).

Non‑customisable: overall bed footprint, crank centre‑to‑centre spacing, and mattress core thickness (fixed at 8 cm). Any change to these dimensions triggers a full redesign and new certification cycle.

Who Uses It and Where It Matters

Public hospitals with 200+ beds standardise on the upgraded frame to meet 10 000‑cycle procurement specs; private clinics often stay with the standard frame and polyester cover to keep unit cost under $420. Nursing homes value the antimicrobial PVC because it survives daily chlorine‑based disinfection without surface cracking. Emergency field units order the fold‑down rail kit and sealed bearings to withstand transport vibration and rapid set‑up.

In all settings the three‑crank layout (head, foot, height) is preferred over two‑crank because it isolates Trendelenburg adjustments, reducing mechanical stress on the height crank by 22 % during frequent repositioning.

How Consistency Is Held Across Batches

Every production lot undergoes: dimensional check of frame rails (±0.5 mm), crank torque test at 5 Nm ±0.2 Nm, foam density verification by ASTM D3574 (±2 kg/m³), cover tensile strength per ISO 13934‑1 (≥350 N), and a 200‑cycle functional run on a calibrated test rig. Batches that deviate on any parameter are quarantined; root‑cause analysis targets welding current drift or foam pour temperature variance.

Traceability is maintained via laser‑etched batch ID on each frame leg and a QR‑coded label on the mattress cover, enabling rapid recall if a single parameter falls out of spec.

Care, Storage and Service Life

Clean frame with neutral pH detergent; avoid abrasive pads that strip the powder‑coat. Mattress cover can be wiped with 0.5 % sodium hypochlorite solution; do not soak. Store beds flat, crank handles disengaged, in ambient 15‑30 °C, 30‑70 % RH. Expected service life: frame 12 years (10 000 cycles), mattress foam 7 years (5 000 compression cycles), cover 5 years (50 wash cycles). Replace crank bearings at 8 000 cycles if torque rise exceeds 15 %.

Next Steps

Request a tooling review and sample kit to validate the upgraded configuration against your ward protocol. Contact our engineering team for a detailed quote and lead‑time estimate.
