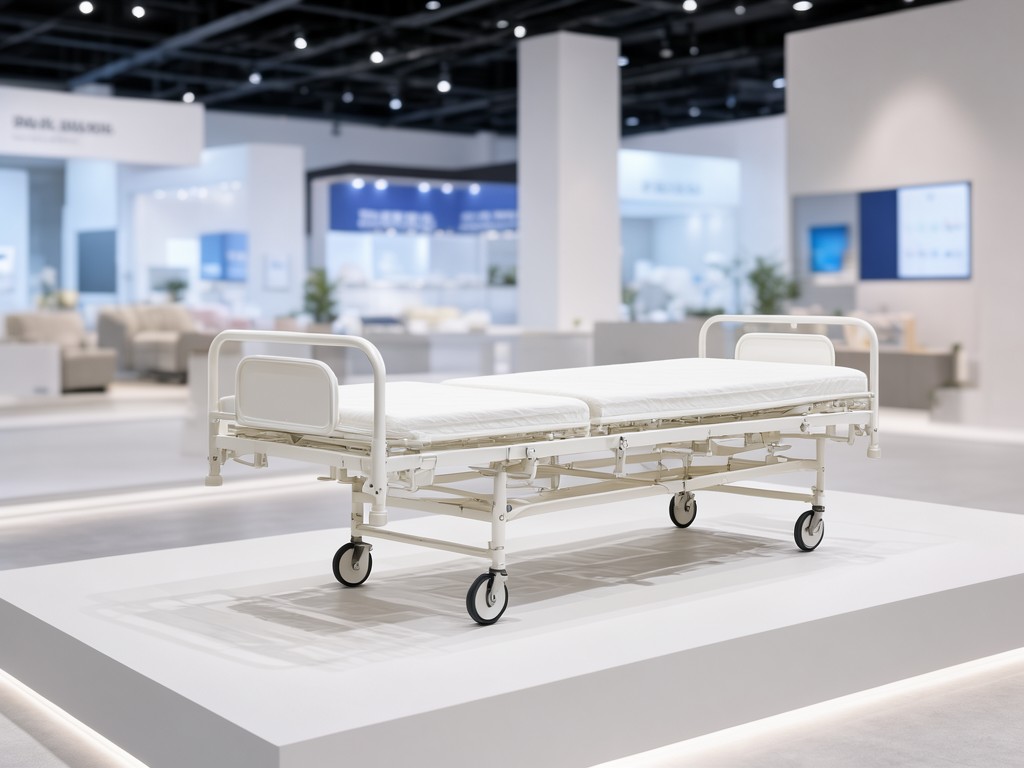

Specifying china one crank manual patient beds with wheels supplier for Wholesale and OEM Orders

Unit price and service life diverge the moment a crank handle strips its threads or a caster seizes after six months of daily height adjustments. Buyers who chase the lowest FOB quote often absorb the difference in warranty claims, replacement freight, and lost tender renewals. The decision rule is simple: match the crank mechanism rating, frame gauge, and caster specification to the actual cycle count the ward will demand, then verify that the factory holds those tolerances lot after lot.

How It Is Built and What That Changes

The crank assembly uses a worm-gear drive mated to a steel lift shaft. Frame tubing runs 40 mm × 20 mm rectangular section at 1.5 mm wall for the base, stepping up to 2.0 mm at the head-end lift points where bending moment peaks. Powder coat thickness targets 80–100 µm after phosphate pretreatment; anything thinner shows orange-peel corrosion at the weld heat-affected zones within a single humid season.

Casters are 125 mm diameter, dual-wheel, total-lock design with precision ball bearings. The stem inserts into a welded socket reinforced by a 3 mm gusset plate. Factories that skip the gusset save two weld passes per bed; the socket cracks at 18–24 months under 250 kg dynamic loads.

Option Comparison by Usage Level

Two suppliers quoting the same specification will still ship different cycle-life performance. Use the decision tree below to lock the configuration before sample approval:

1. Ward type determines cycle target
   1. ICU / step-down — 15–20 height changes per day → 40Cr shear pin, 2.0 mm frame throughout, sealed caster bearings
   2. General medical — 8–12 changes per day → S45C pin acceptable, 1.5 mm base frame, standard bearings
   3. Long-term care / community — 3–5 changes per day → base spec, but mandate gusseted caster sockets regardless
2. Flooring condition drives caster choice
   1. Epoxy / vinyl sheet — standard 125 mm dual-wheel, 75 A shore polyurethane tread
   2. Tile with grout lines or threshold ramps — upgrade to 150 mm single-wheel, 90 A shore, sealed bearing
3. Headboard / footboard mounting style
   1. Integrated ABS panels — adds 4 kg, simplifies cleaning, no loose hardware to lose
   2. Removable tubular boards — saves ¥12–15 per bed, but brackets loosen; specify nyloc nuts and quarterly torque check

How Consistency Is Held Across Batches

Lot-to-lot drift on crank torque, frame squareness, and caster swivel force is what triggers reorder cancellations. The factory runs three in-process gates:

• Tube cut length ±0.5 mm verified by digital stop gauge on every 10th piece; batch rejected if two consecutive readings exceed ±0.8 mm.
• Weld penetration checked via macro-etch on first article and every 50th unit; minimum 80 % root fusion required.
• Crank assembly torque tested at 12 Nm on 100 % of units; shear pin yield recorded and traceable to heat number.

Powder coat adhesion passes cross-hatch (ISO 2409) at rating 0 or 1 on every colour change. Colour ΔE vs. master panel stays ≤1.5; drift beyond that flags a pretreatment bath chemistry audit.

What Gets Checked Before Shipment

Final inspection covers dimensional, functional, and cosmetic criteria in a single pass. Sample size follows ANSI/ASQ Z1.4 Level II, AQL 1.5 for major, 4.0 for minor.

Stock Availability and Reorder Planning

Standard configuration (S45C pin, 1.5 mm base, 125 mm casters, integrated ABS boards) holds 200 units in semi-finished stock — frames welded, coated, crank sub-assembled. Final assembly to your spec ships in 12–15 working days. Custom frame gauge or 40Cr pin adds 7 days for heat-treat scheduling.

Export Packaging and Handling Protection

Each bed ships knocked down: frame base, lift assembly, head/foot boards, crank handle, caster set. Five-layer corrugated carton (ECT 48) with die-cut EPS corner blocks at all eight frame junctions. Crank handle and casters bagged separately in anti-static PE to prevent coating mar. Gross weight per carton 38–42 kg; 24 cartons per 40'HQ container.

Humidity indicator card and desiccant sachet (2 units per carton) included as standard. For tropical routes, upgrade to VCI film wrap adds ¥8 per unit and extends corrosion-free storage to 18 months.

Setup, Use and Replacement Parts

Assembly requires 13 mm and 17 mm open-end wrenches; no specialty tools. Crank handle inserts into hexagonal socket — align the flat, push until detent clicks. Caster stems press into sockets by hand; confirm lock tab seats fully.

• Preventive maintenance: quarterly crank torque check at 10 Nm, caster swivel force check, bolt torque on headboard brackets (if removable) to 18 Nm.
• Stocking spares: keep 2 % of fleet quantity in shear pins (match material grade), 1 % in caster assemblies, 0.5 % in crank handles. All parts traceable to original PO heat-lot.
• Cleaning: quaternary ammonium disinfectants approved; avoid phenolic or chloride-heavy solutions — they attack powder coat at weld seams within 90 days.

Frame welds carry a 5-year structural warranty; crank mechanism and casters 2 years. Warranty claims require batch serial tag photo and torque/force readings — no returns accepted without data.
