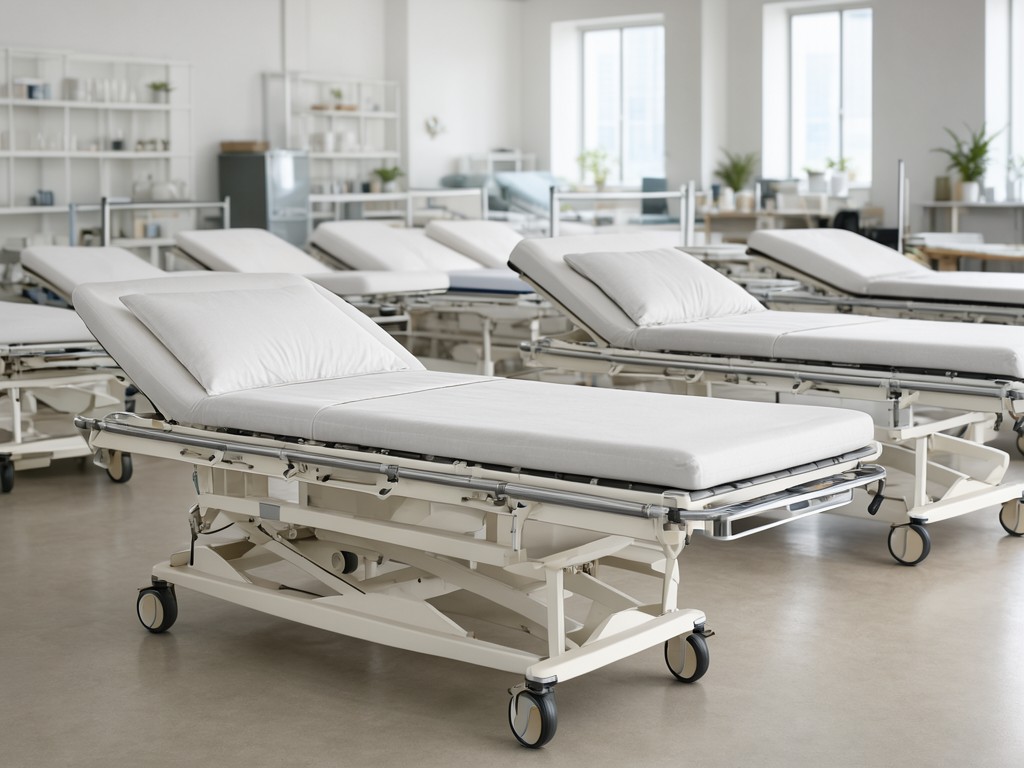

Specifying wholesale heavy duty electric standing medical beds factory for Wholesale and OEM Orders

What Actually Determines Performance

Returns usually trace back to the same weak point: actuator duty-cycle mismatch. A bed rated for 250 kg safe working load but driven by a 6000 N actuator running at 15 % duty cycle will overheat during consecutive Trendelenburg moves in a busy ICU. The frame holds, the motor does not.

Buyers judge performance on three measurable limits: safe working load (SWL) verified to IEC 60601-2-52, articulation angle repeatability across 10 000 cycles, and IP rating of the control box after automated wash-tunnel exposure. A 0.5° drift in Fowler angle or a single IPX4 failure on the handset triggers a recall cascade.

How It Is Built and What That Changes

Most quality disputes start with a consistency gap in the welding cell. We run robotic MIG on 50 × 25 × 2 mm rectangular tube for the main frame and 40 × 20 × 1.5 mm for the mattress platform. Fixture tolerance is ±0.3 mm per joint. Manual welds only appear on low-volume bariatric reinforcement brackets, and those are 100 % dye-penetrant inspected.

Powder coat is epoxy-polyester hybrid, 80–100 µm DFT, cured at 200 °C. Salt-spray passes 500 h per ASTM B117. The colour batch is locked to a single RAL code per PO; drift beyond ΔE 1.5 triggers a rework hold. That tolerance keeps touch-up kits matching across reorders three years later.

What Can Be Customised and What Cannot

Customisation lives in the mattress platform material, side-rail style, and control interface. The frame geometry, actuator mounting pattern, and caster bolt pattern are fixed by the type-test file; changing them means a new IEC 60601-2-52 submission and 16-week lead time.

Who Uses It and Where It Matters

ICU and step-down units specify the 250 kg SWL tier with X-ray translucent platform and integrated scale. The bed stays in place for 14-day average occupancy; motor duty cycle and handset IPX7 survive daily chlorine-based wipe-downs.

Bariatric wards demand the 450 kg tier with reinforced frame gussets and 10 000 N actuators. Caster failure is the top field complaint — we spec 150 mm conductive dual-wheel with sealed precision bearings, tested to 50 km roll distance under full load.

Long-term care facilities order the 350 kg tier with half-length PP rails and nurse-panel lockout. They need 5-year frame warranty and 2-year motor warranty backed by regional spare-parts stock. Private-label distributors rebrand the same platform with custom RAL and silk-screen logos for national tenders.

Working as a Production Partner, Not a Catalogue Supplier

We hold your approved BOM, fixture drawings, and test reports under version control. When you place a blanket order, we pull from scheduled production slots — not from finished-goods inventory that may have drifted on coating batch or actuator firmware.

First-article inspection (FAI) report ships with the pilot run: 12-point dimensional, 4-hour dynamic cycle test, IPX6 spray test, and EMC scan. You sign off before serial production starts. Any design change after FAI requires a deviation request and, if structural, a partial re-test per IEC 60601-1 clause 4.3.

Warranty claims are handled through a shared 8D tracker. Root cause links back to the production cell data — weld parameter log, powder-coat cure chart, actuator current signature. That traceability cuts dispute resolution from weeks to days.

Volume Planning and Lead Time

Standard 250 kg configuration runs at 150 units/week on a single line. Bariatric 450 kg drops to 60 units/week due to gusset welding and 100 % dye-penetrant hold points. Peak season (Q4 hospital budget flush) adds 3 weeks to raw-material lead time for LINAK actuators.

Stock Availability and Reorder Planning

We do not carry finished-goods stock for medical beds. Every unit ships against a nominated PO with traceable serial numbers. However, we maintain a "virtual stock" of long-lead components — actuators, control boxes, caster sets — allocated to your forecast. That buffer absorbs a 30 % demand spike without extending lead time.

Reorder cycle: submit rolling 12-month forecast quarterly. We lock actuator and caster POs 8 weeks out. Frame steel is ordered monthly. If forecast drops > 20 %, we negotiate a raw-material carry charge (typically 3 % of component value) rather than cancel upstream orders.

Next Step: Pilot Run Qualification

Send your spec sheet — SWL tier, platform choice, rail style, control interface, RAL code, and target annual volume. We return a FAI protocol, unit cost at three volume breaks, and a Gantt from PO to first container within 48 hours.

Sample units ship from the pilot run at production cost plus freight; cost credits against the first serial order.
