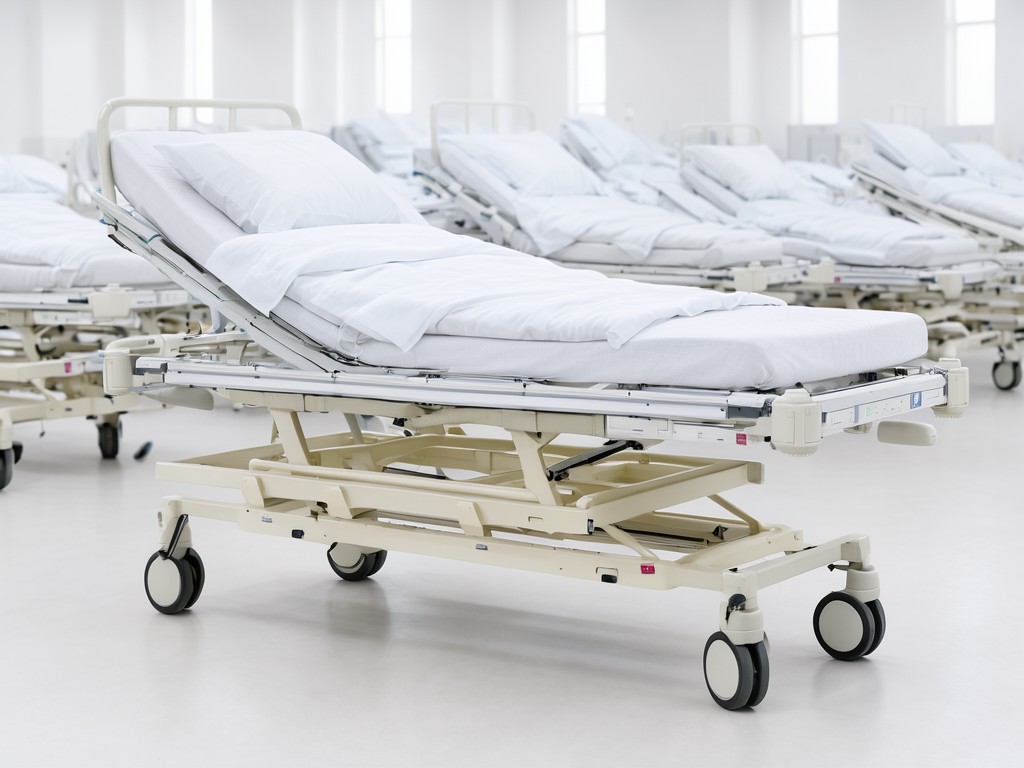

Specifying Custom trendelenburg electric hospital bed for patients Factory for Wholesale and OEM Orders

How It Performs in Use

Repeat loading drives the failure. A bed that passes a static 250 kg load test can still develop actuator drift, siderail latch fatigue, or caster wobble after 18 months of daily Trendelenburg cycles in a high-acuity ward. The limiting factor is rarely the headline specification — it is the cumulative effect of off-centre patient weight, frequent height changes, and aggressive cleaning protocols on the linear actuators and powder-coated frame joints.

Our platform uses dual-motor architecture with independent backrest and knee-break articulation. The Trendelenburg and reverse Trendelenburg positions are achieved through a synchronised frame tilt mechanism rated for 40,000 full-stroke cycles at 180 kg safe working load. Actuators are IP66 sealed, 24 V DC, with Hall-effect position feedback to prevent drift. The mattress platform consists of four removable ABS sections with integrated ventilation channels — no welded mesh to crack at the radius bends.

What Can Be Customised and What Cannot

Specification agreement happens before tooling. We freeze the technical file — 2D drawings with GD&T, BOM with approved component part numbers, actuator force/speed curves, and surface finish callouts — after the buyer signs off the pre-production sample. Changes after that point require a new FAI and reset the PPAP clock.

Usage Scenarios and Buyer Segments

The complaint pattern shifts by department. ICU buyers report actuator noise and battery failure during power loss. Long-term care facilities flag siderail latch breakage and caster corrosion from floor strippers. Emergency departments cite slow Trendelenburg transition speed and CPR release reliability. The table below maps each condition to the failure mode we see in returned units and the specification that prevents it.

OEM and ODM Programme Structure

Private-label buyers typically engage on a three-phase gate process. Phase 1: technical questionnaire and target cost model — we return a feasibility matrix showing which configurations hit the target landed cost at the projected volume. Phase 2: prototype build (3–5 units) with full FAI report, IEC 60601-1/-2-52 test plan, and packaging validation. Phase 3: pilot run of 20–50 units with statistical process control data on critical dimensions (deck flatness, actuator synchronisation, caster alignment).

Artwork and labelling are part of the technical file. We require print-ready files for: rating label (laser-etched aluminium), control pendant overlay (polycarbonate, UV-cured ink), siderail warning graphics, and shipping carton marks. All labels are applied in-house during final assembly — no third-party labelling houses. This ensures traceability: every bed ships with a unique serial number linked to the batch record, actuator lot codes, and torque wrench calibration certificates for the 12 critical fasteners.

Inspection Items and Test Methods

Every unit passes a 100 % end-of-line test before packaging. The test station runs a scripted sequence: electrical safety (earth continuity < 0.1 Ω, insulation > 50 MΩ at 500 V DC, leakage current < 100 µA NC / < 500 µA SFC), functional cycle (full articulation + Trendelenburg + reverse Trendelenburg + CPR release), and acoustic measurement at 1 m distance. Data logs are stored by serial number for 7 years.

Type Test Programme (Per Design Freeze)

• Actuator endurance: 40,000 cycles at max load, 10 % duty cycle, ambient 23 ± 5 °C — no force drop > 15 %, no positional drift > 2 mm
• Frame fatigue: 100,000 cycles at 1.25 × SWL on deck centre — no permanent deformation > 3 mm, no weld cracking
• Caster durability: 50 km on simulated hospital flooring (epoxy, vinyl, tile transitions) — no bearing play > 0.5 mm, no tread chunking
• Siderail latch: 50,000 engage/disengage cycles — no fracture, latch force 40–80 N throughout
• EMC: IEC 60601-1-2 Edition 4 — radiated emissions Class B, immunity 10 V/m 80 MHz–2.7 GHz
• IP rating verification: IP66 on actuators and control box, IPX4 on pendant — water ingress test per IEC 60529
• Cleaning chemical resistance: 1,000 wipe cycles with 0.5 % sodium hypochlorite, 70 % IPA, quaternary ammonium — no label degradation, no coating delamination

Routine inspection at incoming QC covers: actuator force/speed curve verification (sample 5 % per lot), powder coat adhesion (cross-hatch 5B minimum), caster brake torque, and deck section dimensional check (±1.5 mm on length/width, ±0.5 mm on mounting hole pattern).

Volume Planning and Lead Time

Standard configuration (180 kg SWL, 1000 × 2000 mm deck, 125 mm casters, 6-button pendant, standard powder coat) ships in 15 working days from PO confirmation for quantities up to 30 units. Configured orders — any parameter change from the standard BOM — add 5–10 working days for kit preparation and first-article verification on the line.

Sustained capacity: 120 units/week on a single shift. Second shift adds 60 % throughput with 8-week notice. Peak season (Q4) typically runs at 90 % capacity — early PO placement secures slot allocation. We maintain safety stock of long-lead components: actuators (8-week supplier lead time), control boxes (10 weeks), and custom-colour powder coat (6 weeks). Frame components and deck sections are made in-house with 2-week cycle time.

Keeping Repeat Orders Supplied

Second-source qualification only works if the supply chain holds. We structure continuity around three commitments: (1) 10-year spare parts guarantee on all electrical and mechanical components — actuators, control boxes, pendants, casters, siderail latches, and deck sections remain in production or are replaced by form-fit-function equivalents with buyer notification. (2) Running change control: any component substitution triggers a delta FAI on the affected sub-assembly; the buyer receives the test report before the change hits production. (3) Buffer stock programme: for buyers with firm 12-month forecasts, we hold 4–6 weeks of configured finished goods at our warehouse, invoiced on pull — this absorbs demand spikes without extending lead time.

Warranty terms are contractual, not marketing: 36 months on frame and weldments, 24 months on actuators and control electronics, 12 months on casters, siderail mechanisms, and battery. Labour reimbursement for in-warranty repairs is capped at the published flat-rate schedule (available on request). Claims require serial number, installation date, and photographic evidence — no return of 90 kg beds for minor issues.

Stock Availability

We maintain a rotating buffer of 15–20 standard-configuration units in the EU warehouse (Netherlands) and 10–15 units in the US warehouse (New Jersey) for immediate shipment. These are genuine stock — not "virtual inventory" awaiting assembly. Buyers can pull from buffer while their configured order is in production, closing the gap between qualification and volume delivery. Buffer allocation is first-come, first-served; we publish real-time availability on the partner portal.

For configured orders, we offer a "first-article hold" option: the first 3–5 units ship immediately after buyer FAI sign-off, while the balance follows the standard production schedule. This lets clinical teams start training and integration testing 2–3 weeks before the full order arrives.
