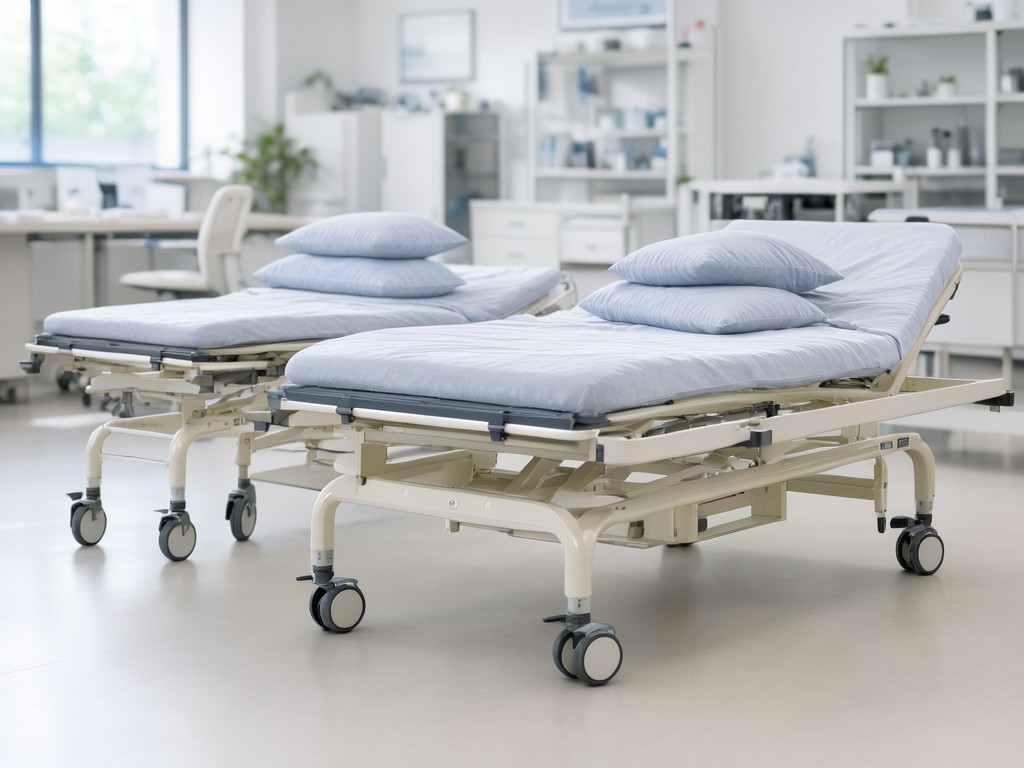

custom 2 motor electric patient beds with wheels factory: Specification, Ordering and Quality Notes

Design Constraints Behind the Specification

The two-motor architecture separates backrest and knee-break actuation. That split keeps each actuator under lower peak load than a single-motor linkage, which extends gear life and reduces current draw on the control box. The trade-off is a wider control box footprint and a second cable run — both of which affect packaging density and handset ergonomics.

What Actually Determines Performance

Repeat loading drives the failure. A ward bed sees 8–12 full articulation cycles per patient per day. Over a three-year service life that exceeds 10,000 cycles on each actuator. The limiting factor is rarely the headline specification — it is the gear material, the lubrication retention, and the cable strain relief at the handset connector.

Caster fork fracture is the second most common field issue. Central locking transmits braking torque through a 10 mm hex shaft into the fork crown. If the fork wall thickness drops below 3.2 mm at the crown, a single impact against a lift threshold can initiate a crack that propagates to complete failure within weeks. We specify 3.5 mm minimum and verify with a 50 Nm torque test on every production lot.

Motor Selection Guide

Standard 6000 N actuator: 10 % duty, 32 dB(A) under load, 4.5 mm/s no-load speed. Suits general ward and nursing home.

Heavy-duty 8000 N actuator: 20 % duty, 38 dB(A), 3.8 mm/s. Required for bariatric decks or frequent Trendelenburg use.

Caster Configuration Impact

125 mm dual-wheel: 100 kg/caster rating, 65 mm overall height. Low centre of gravity, best for standard ward floors.

150 mm dual-wheel: 150 kg/caster rating, 78 mm height. Better threshold crossing, raises bed 13 mm — verify doorway clearance.

Material Options and Their Trade-offs

Frame tube: 30 × 30 × 1.5 mm rectangular steel is the baseline. Moving to 40 × 40 × 2.0 mm adds 18 % torsional stiffness and raises safe working load by 40 kg, but increases unit weight by 7 kg and shipping volume by 12 %. Powder coat adhesion on 2.0 mm wall requires a 120 µm minimum film; thinner films chip at weld toes during transit.

Bed ends: ABS (acrylonitrile butadiene styrene) offers 2.5 mm wall, integral colour, and 15 J impact resistance at 23 °C. Polypropylene (PP) cuts 15 % cost but drops to 8 J impact and shows stress whitening at hinge points after 18 months of cleaning-agent exposure. For high-turnover contracts we recommend ABS with UV stabiliser.

Mattress deck: Four-section steel link deck with 50 mm pitch springs is standard. Perforated steel plate deck saves 3 kg and improves infection control (no spring cavities), but increases peak pressure on foam mattresses by 18 % — verify with your mattress supplier before specifying.

What Can Be Customised and What Cannot

• Branded control box overlay — artwork due at PP sample stage, MOQ 50 sets per design.
• Bed end colour match to RAL or Pantone — add 7 days lead time for colour chip approval.
• Integrated IV pole sockets (two or four) — welded during frame jig, not retrofittable.
• CPR quick-release lever — left or right mount, single-hand operation, tested to 5,000 cycles.
• Battery backup module — 1.2 Ah sealed lead-acid, fits inside control box cavity, adds 1.4 kg.
• Scale system — load cells in each caster housing, ±1 kg accuracy, requires calibrated control box firmware.

Fixed constraints: overall length 2120 ± 10 mm (fits standard hospital lift), deck width 900 mm (matches 90 cm mattress standard), motor mounting pitch 180 mm (actuator interchangeability). Changing any of these requires new tooling — minimum 12 weeks and 200-unit MOQ.

Usage Scenarios and Buyer Segments

General ward procurement teams prioritise cost per bed and 5-year frame warranty. They accept standard 125 mm casters, 6000 N actuators, and ABS bed ends in institutional grey. Reorder cycle is typically 18–24 months; lot-to-lot dimensional consistency (±3 mm on deck height, ±2° on articulation) prevents mattress fit complaints.

Private-label medical distributors specify branded handset overlays, custom bed-end colours, and battery backup as standard. They order in 50–100 unit batches quarterly. Their risk is colour drift across lots — we hold master colour plaques and spectrophotometer readings (ΔE ≤ 1.5) for every production run.

Bariatric unit buyers need 300 kg SWL, 8000 N actuators, 150 mm casters, and reinforced deck links. They also demand CPR release on both sides. These beds ship in wooden crates (not cartons) to protect the wider frame during export. Lead time extends to 8 weeks from PO confirmation.

How Consistency Is Held Across Batches

Frame welding uses a fixed jig with pneumatic clamps. Every 50th frame pulls for destructive weld cross-section — penetration depth, bead profile, heat-affected zone width. Actuator current draw is logged at no-load, 3000 N, and 6000 N on a 100 % end-of-line test bench. Any unit exceeding 4.2 A at 6000 N is rejected; the batch average must stay below 3.8 A.

Caster swivel torque and brake engagement force are measured on a calibrated rig — 0.8–1.2 Nm swivel, 15–25 N brake lever force. Powder coat film thickness is mapped at 12 points per bed end; minimum 80 µm, maximum 140 µm. Data logs are retained for 36 months and linked to serial number prefixes for traceability.

Questions Buyers Ask Before Ordering

What is the true lead time for a first custom order? Tooling for standard frame with custom bed-end colour and branded overlay: 6 weeks from approved PP sample. Add 2 weeks per non-standard item (IV poles, scale system, low-base frame). Production run: 3 weeks for 100 units after material release.

Can we mix actuator types in one container? Yes, but each SKU needs its own control box firmware. We label the control box barcode with actuator part number. Mixed containers require a packing list that maps serial numbers to actuator spec — we provide the template.

How are spare parts managed for private-label programmes? We hold 3 % of annual volume as service stock (actuators, handsets, caster sets) for 5 years after last PO. Parts ship in unbranded brown boxes unless you supply branded cartons. Minimum service order: 5 units per line item.

What packaging options exist for export? Standard: 5-layer corrugated carton, EPS corner protectors, strap-ready. Wooden crate (ISPM-15 compliant) adds $22/unit and 15 kg tare weight. Palletised (4 beds/pallet, stretch-wrapped) for full container loads only.

Is there a minimum order for custom colours? 50 units per colour for ABS bed ends. Below that, we can spray-paint standard grey ends — adds 2 days, adhesion passes cross-hatch test but chip resistance drops 30 % versus moulded colour.
