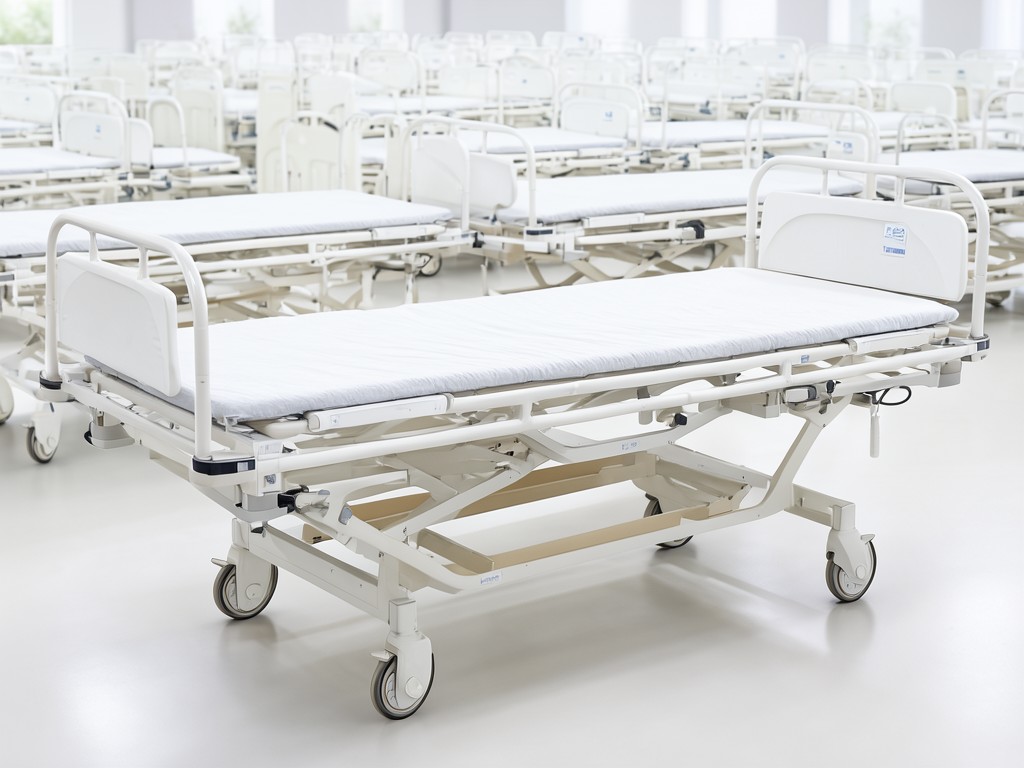

china medical bed electric 5 function for home use Company: Specification, Ordering and Quality Notes

Where Cheaper Alternatives Fall Short

The table above shows where low‑cost beds typically drift. A 5 % variance in load capacity across a production lot translates directly into returns when a heavier patient is placed on a unit rated for the lower bound. Motor duty‑cycle shortcuts cause premature thermal trips, and weld‑inspection sampling below 10 % lets hairline cracks escape to the field.

Noise creep is the silent killer of reorder rates; a bed that ships at 38 dB but hits 52 dB after 500 cycles triggers caregiver complaints and warranty claims.

Specification Range and Customisation Limits

Standard 5‑Function Platform

• Backrest 0‑75°
• Knee break 0‑40°
• Height 40‑80 cm
• Trendelenburg / reverse 12°
• Mattress retainer bar

Frame: 1.5 mm cold‑rolled steel, powder coat 60‑80 µm. Actuators: 24 V DC, 6000 N peak. Control: wired handset, IPX4.

Enhanced 5‑Function with Backup Battery

• All standard articulations
• Integrated 12 Ah Li‑ion pack
• Auto‑switch on mains loss
• Battery status LED on handset
• Extended height range 35‑85 cm

Adds 3.2 kg, increases FOB cost 12‑15 %. Battery cycle life 500 full discharges; replacement kit stocked.

Customisation beyond these two configurations requires new tooling for the actuator mounting brackets and a revised wiring harness. The minimum order for a bespoke bracket set is 200 units; lead time adds 4‑6 weeks.

Colour matching to a brand palette is limited to RAL 9003, 9016, 7016, and 5015; custom RAL incurs a 3‑week pigment qualification.

How to Choose Before Requesting a Quote

Start with the patient weight envelope. If the target market includes bariatric users, specify the 180 kg static load and request the 10 % UT weld inspection on every lot.

Next, define the duty‑cycle expectation. Home‑care beds typically see 2‑3 adjustments per day; a 10 % duty cycle motor is adequate. Facilities with higher turnover should ask for a 20 % rated motor, which adds ~8 % unit cost.

Noise tolerance is a purchasing differentiator. A 5 dB reduction requires a different gear‑ratio actuator and a dampened mounting plate; budget an extra $12‑$15 per unit.

Finally, lock the powder‑coat thickness at 70 µm minimum and require cross‑hatch adhesion ≥ 5B on each shipment. This single spec eliminates the majority of cosmetic returns.

Requirements by Buyer Segment

Distributors serving the rental market prioritize quick‑swap actuator modules. They typically order the standard platform with a service‑kit bundle (2 spare actuators, 1 handset, 1 control board) to keep fleet downtime under 24 hours.

Procurement officers for national health programs require full traceability: each bed serialized, test report PDF linked to the serial number, and a 2‑year parts‑availability guarantee. These clauses are negotiated at the framework agreement stage, not at PO level.

Capacity, Tooling and Scheduling

Current monthly capacity for the standard platform is 3,200 units on two assembly lines. The enhanced version shares the same line but requires a dedicated battery‑install station, limiting combined output to 2,800 units if both SKUs run concurrently.

Tooling for the actuator bracket is a hardened steel progressive die; changeover takes 4 hours. A new bracket design therefore incurs a minimum 200‑unit run to amortise the changeover cost.

Lead time from PO confirmation to first shipment: 6 weeks for standard, 8 weeks for enhanced. Peak season (Q4) adds 2 weeks due to powder‑coat queue congestion.

Stock Availability and Reorder Planning

We maintain a safety stock of 150 standard platforms and 80 enhanced units in the Shenzhen warehouse. These are allocated on a first‑come basis; once the buffer drops below 30 units, the next production slot is locked for replenishment.

Reorder point calculations should factor a 4‑week sea‑freight window to major EU ports and a 2‑week window to North America west coast. Air freight is available for emergency top‑ups at a 3.5× cost multiplier.

Batch traceability records are retained for 5 years and can be exported as CSV for regulatory audits. Each batch includes material certificates for steel, actuator motor, and powder‑coat lot.

Next Steps

Align your specification sheet with the parameters above, then share the target annual volume and preferred Incoterm. We will return a detailed quotation with tooling amortisation, packaging options, and a sample‑approval timeline within 3 business days.
