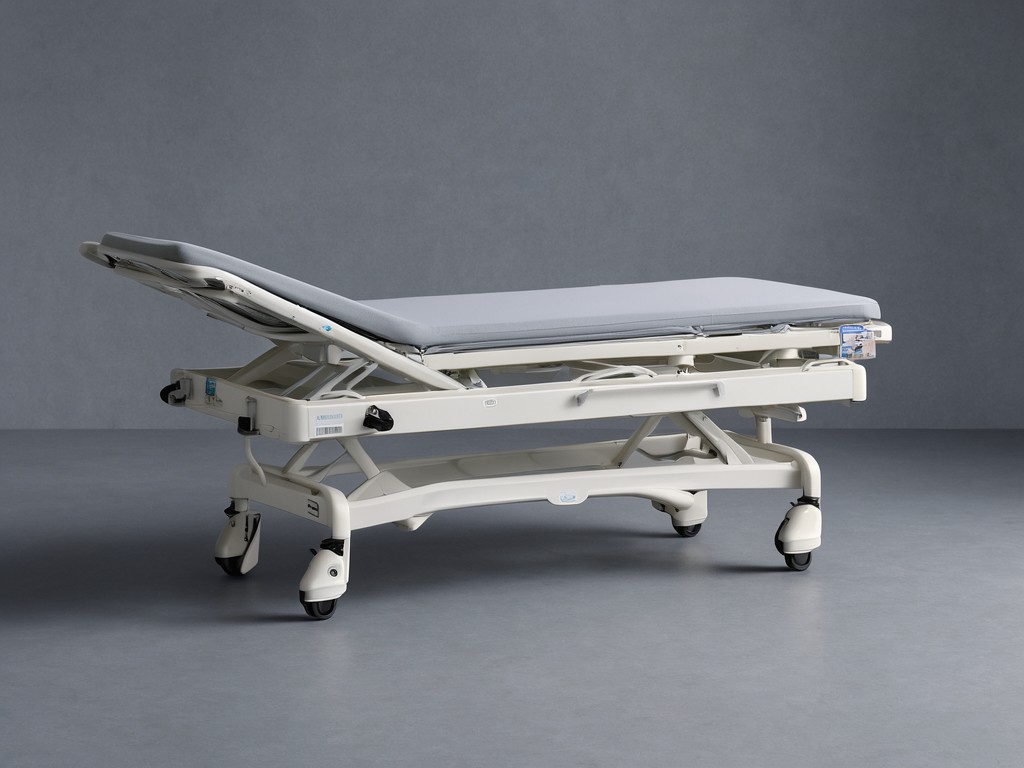

China Full Electric Hospital Beds For Home Use Company - Bulk Supply and Specification Guide
How to Choose Before Requesting a Quote
Unit price and service life diverge when the same bed model is built on different frame gauges or motor grades. A purchasing manager who only compares FOB numbers will see identical spec sheets but discover 18‑month motor burnout rates on the cheaper line.
- Define the primary user profile — elderly with limited mobility demands ultra‑quiet motors (<45 dB) and battery backup; post‑surgical recovery prioritises Trendelenburg range and quick‑release side rails.
- Match articulation count to clinical need — four‑section profiling (back, thigh, calf, height) is standard; five‑section adds cardiac chair positioning but adds two extra actuators and a 12 % cost premium.
- Verify mattress interface — internal width 900 mm ±5 mm fits most pressure‑relief foams; wider 1000 mm frames require custom mattress sourcing and increase freight volume.
- Select caster spec for the floor type — 100 mm dual‑wheel braked casters on carpet; 125 mm single‑wheel conductive casters for vinyl or epoxy where static discharge damages electronics.
Specification callout: beds shipped without IEC 60601‑1 compliant leakage current test reports will be rejected by EU and North American distributors. Insist on the test report before sample approval.
Assumptions Buyers Should Stop Making
Before comparing quotations, assume that every factory can hit the same nominal load rating — 250 kg safe working load is a baseline, not a differentiator. The real variance appears in cycle life: a 20 000‑cycle actuator tested at 25 °C lasts 3 years in a climate‑controlled bedroom but fails at 14 months in a humid coastal home where condensation corrodes the limit switches.
Another false comfort is “powder‑coated frame”. Salt‑spray data from our last audit showed 120 µm epoxy‑polyester coating on 1.5 mm steel tube reached red rust at 350 hours; the same tube with 80 µm zinc‑rich primer plus 80 µm topcoat passed 1000 hours. The price difference is $4 per bed but the warranty claim rate drops from 4.2 % to 0.6 %.
Customisation Options and Their Limits
Unit price settles the question only after the buyer decides which customisations are mandatory versus optional. The table below captures the trade‑offs we explain during sample review.
| Option | Typical Lead‑time Adder | Cost Impact | Failure Mode If Skipped |
|---|---|---|---|
| Zinc‑rich primer + dual coat | +7 days | +$4/unit | Frame rust at weld seams within 18 months |
| IP66 handset enclosure | +5 days | +$3/unit | Button corrosion, erratic actuation |
| Lithium‑ion backup (2 Ah) | +10 days | +$18/unit | Power‑loss stranding, caregiver injury risk |
| Custom colour (RAL match) | +14 days | +$6/unit (MOQ 50) | Colour drift >ΔE 3 after 6 months UV exposure |
Quality Control and Batch Consistency
Complaint patterns from the last three repeat orders trace back to two root causes: actuator speed drift and side‑rail latch fatigue. We now run a 100 % end‑of‑line functional test on every bed — 30 full articulation cycles under 120 kg load, measuring motor current draw and positional repeatability. Any unit exceeding 0.8 A average current or ±3 mm position deviation is quarantined for root‑cause analysis.
Batch traceability is enforced by laser‑etched QR codes on the frame cross‑member linking to the coil‑level steel certificate, motor serial numbers, and powder‑coat batch record. This enables a 48‑hour containment if a field failure cluster appears.
What Gets Checked Before Shipment
Electrical Safety
- Leakage current < 100 µA (NC) / 500 µA (SFC)
- Dielectric withstand 1500 V AC 1 min
- Ground continuity < 0.1 Ω
Mechanical Durability
- 20 000 cycles articulation under load
- Side‑rail latch 10 000 operations
- Caster swivel 5 000 rotations with 150 kg
Each pallet receives a randomised 5‑unit dimensional audit (frame squareness ±2 mm, height adjustment range ±5 mm) and a visual inspection for coating defects using a 10× illuminated magnifier. Failed pallets are reworked or scrapped — no mixed‑quality shipments.
Capacity, Tooling and Scheduling
Our welding cell runs two shifts, 22 days/month, producing 1 200 frames/month at 98 % first‑pass yield. Actuator assembly is the bottleneck — current capacity 900 units/month with a single automated screw‑driving line. A second line is scheduled for Q3 commissioning, which will lift output to 1 500 units/month and reduce lead‑time from 45 to 30 days for standard configurations.
Tooling ownership: custom side‑rail profiles and coloured powder‑coat fixtures remain our property but are dedicated to your SKU for the contract duration. MOQ for dedicated tooling is 200 units; below that we use universal fixtures with a $0.80/unit changeover surcharge.
Packing, Marking and Freight Configuration
Beds are shipped knockdown: frame base, mattress platform, actuator set, and handset in separate poly‑bags inside a 5‑layer corrugated carton (ECT 48). Corner protectors and foam inserts prevent caster damage during double‑stacking. Gross weight per carton 38 kg; 40‑ft HQ container fits 210 units (70 cartons × 3 high).
Marking includes: SKU, batch QR, net/gross weight, “This Side Up” arrows, and country of origin. For LCL shipments we add humidity indicator cards and desiccant sachets (2 units per carton) to mitigate condensation during trans‑shipment.
Next Steps: Tooling Review and Sample Approval
If the specification aligns with your repeat‑order requirements, the fastest path is a joint tooling review. We share 3D models of the frame weldment, actuator mounting brackets, and side‑rail latch mechanism for your engineering sign‑off before cutting steel. Sample lead‑time is 25 days from drawing approval; we cover express freight for the first two units.
Contact our technical sales team to schedule the review and lock in the production slot for the next quarter.
