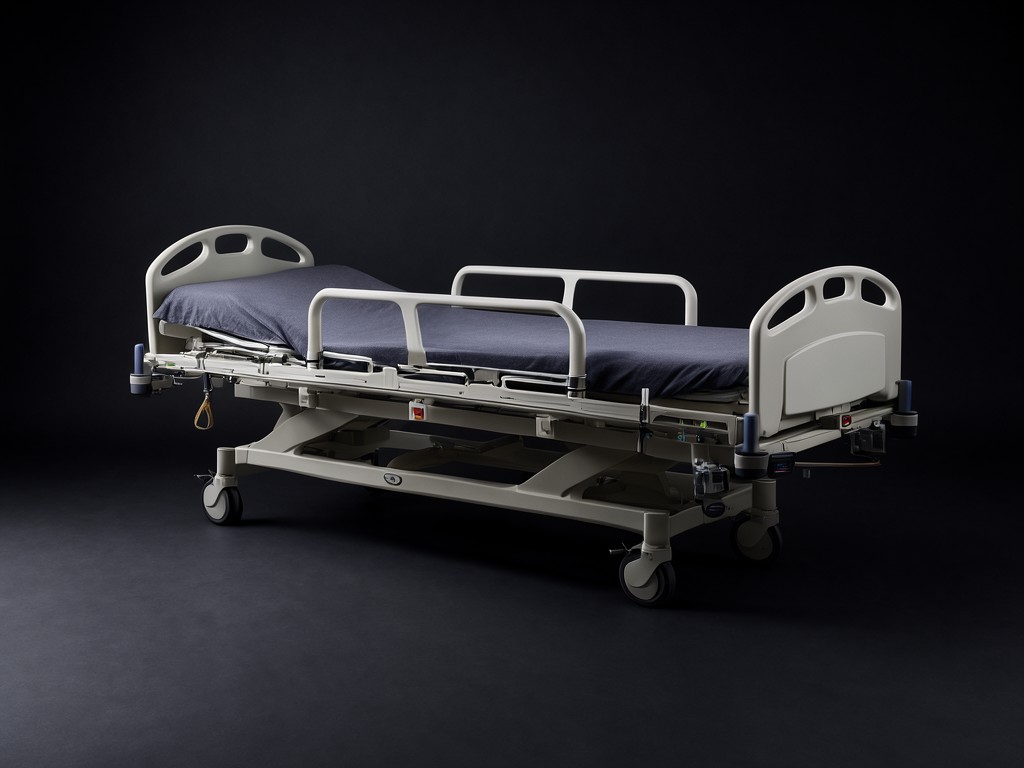

china 5 function electric icu medical patient beds supplier – What Buyers Should Check Before Ordering

Construction Method and Its Effect on Consistency

In a high‑turnover ICU the bed frame endures 30–40 articulation cycles per shift, so the weld pitch and actuator mounting geometry dictate whether the platform stays level after 10 000 cycles.

The frame uses a 2 mm‑pitch robotic weld on 1.5 mm cold‑rolled steel, followed by a 80 µm epoxy‑polyester powder coat. Actuators are bolted to machined brackets rather than welded, allowing a ±0.15 mm positional tolerance that prevents cumulative drift.

Comparing Two Standard Configurations

Buyers often choose between the baseline 5‑function model and the version with an integrated backup battery. The trade‑off is not just price – it changes the motor duty cycle, wiring harness length, and the required crate height.

Assumptions Buyers Should Stop Making

Assuming the quoted load rating applies to dynamic impact is a common error – the 250 kg figure is static; a 150 kg patient dropping onto the siderail can exceed the siderail’s 1.2 kN limit.

Another mistake is treating the powder coat as a permanent barrier; repeated chlorine‑based disinfection reduces gloss by 15 % after 200 cycles unless a UV‑stable topcoat is specified.

Finally, expecting the same crate dimensions for both configurations ignores the 100 mm height increase caused by the battery pack, which adds a pallet layer and raises freight cost by roughly 8 %.

Working as a Production Partner, Not a Catalogue Supplier

We open tooling reviews at the first article stage, letting the buyer verify bracket hole patterns, actuator stroke limits, and cable routing before the production run starts.

Private‑label artwork is applied via laser‑etched anodized plates on the headboard; the process adds 0.3 mm thickness and survives 500 autoclave cycles without delamination.

MOQ for a custom colour is 50 units; lead time stretches from 45 to 60 days because the powder‑coat line must be flushed and re‑validated.

How Consistency Is Held Across Batches

Statistical process control tracks three key variables: weld pitch (target 2.0 mm ± 0.05 mm), actuator mount flatness (0.1 mm ± 0.02 mm), and powder‑coat thickness (80 µm ± 5 µm). Each lot of 200 frames receives a first‑article dimensional report and a 100‑cycle endurance run before release.

Traceability is maintained by laser‑marking a batch code on the frame’s underside and on the control‑board PCB; the code links to the raw‑material heat number, weld‑robot program, and coating oven profile.

Inspection Items and Test Methods

Every production lot passes the following checks before shipment:

• Static load test – 250 kg applied to mattress platform for 5 min, deflection ≤ 3 mm.
• Dynamic cycle test – 10 000 full articulation cycles at rated speed, no motor overheating > 70 °C.
• Electrical safety – dielectric withstand 1 500 V AC, leakage < 0.5 mA per IEC 60601‑1.
• Noise measurement – A‑weighted SPL at 1 m ≤ 48 dB (Config A) / 46 dB (Config B).
• Caster lock torque – breakaway torque ≥ 2.5 Nm, swivel resistance ≤ 0.8 Nm.
• Coating adhesion – cross‑hatch test 5B after 200 h salt‑spray.

Failed units are segregated, root‑cause analyzed, and the corrective action logged in the batch record.

Questions Buyers Ask Before Ordering

What is the typical lead time for a 100‑unit order?

Standard configuration ships in 45 days from deposit; add 10–15 days for custom colour or backup‑battery integration.

Can the headboard artwork be changed after the first article?

Yes, but the laser‑etch plate must be re‑cut; cost is $12 per plate and adds 3 days to the schedule.

What freight protection is included for sea shipment?

Each crate receives corner protectors, desiccant packs, and a humidity indicator card; the pallet is stretch‑wrapped with 80 µm film.

Is there a warranty on the actuator motors?

Motors carry a 24‑month or 20 000‑cycle warranty, whichever occurs first, provided the duty cycle stays within spec.

How do you handle spare‑parts stocking for distributors?

We maintain a regional buffer of actuators, control boards, and caster kits; minimum order for spare‑parts kits is 10 sets.

Next Steps

If the specifications above match your private‑label requirements, the fastest path is a joint tooling review. We will share the first‑article dimensional report, the actuator duty‑cycle curve, and the packaging drawing within five business days of receiving your purchase intent.
