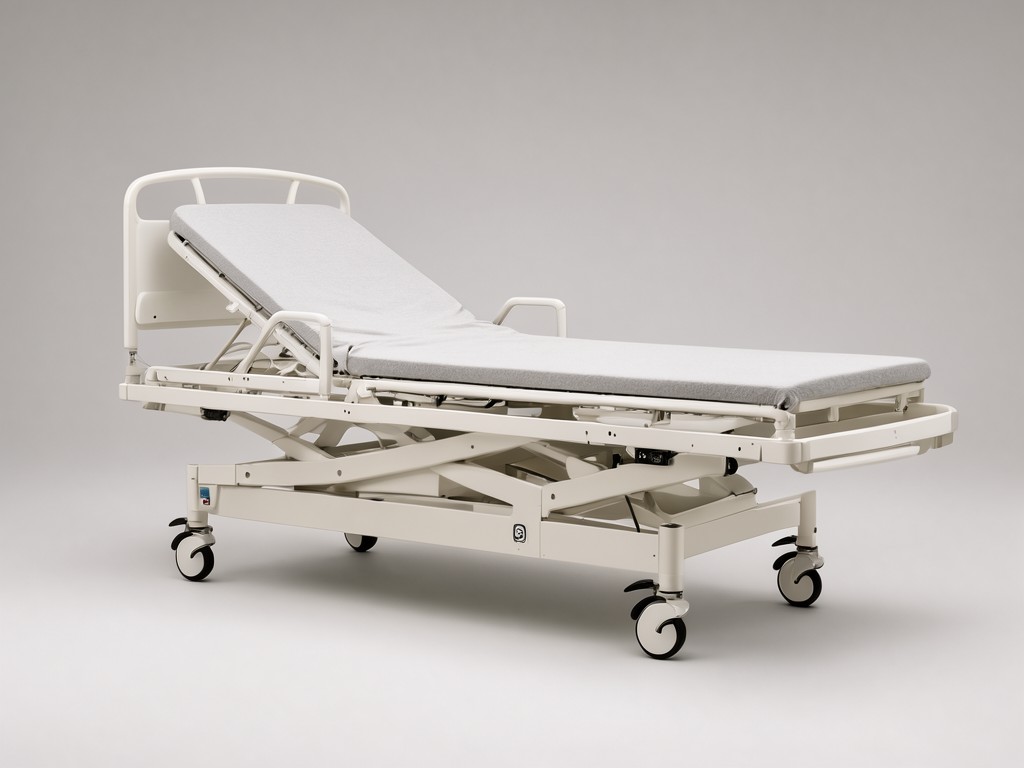

Specifying CE Certified two function electric nursing bed with wheels factory for Wholesale and OEM Orders
Design Constraints Behind the Specification
Two-function profiling (backrest + knee break) with four-section mattress platform remains the volume sweet spot for general wards and nursing homes. Adding Trendelenburg or lateral tilt pushes the actuator count from two to four, which adds 18–22 kg to the frame and requires a control box rated for 4-channel synchronous drive — cost the buyer sees in both unit price and freight volume.
Material choice starts with the conditions the product will meet: daily wipe-down with quaternary ammonium or chlorine-based disinfectants, 80 °C steam cleaning in some Nordic contracts, and constant load cycling from 30 kg paediatric to 250 kg bariatric patients. Cold-rolled SPHC steel at 1.5–2.0 mm wall thickness, fully welded before powder coat, survives 500 h salt spray (ISO 9227) without creep at the weld toes. Aluminium alloy cross-members save 6–8 kg per bed but require MIG pulse welding to avoid heat-affected zone cracking under repeated flexion — a failure mode that appears at 12–18 months in high-throughput ICU fleets.
The two DC actuators (typically 6000 N push / 4000 N pull, 24 V DC, IP66) mount on hardened steel pivot bushes with acetal liners. Grease specification is NLGI 2 synthetic, food-grade (NSF H1) because residue migrates to mattress deck edges where skin contact occurs. Motor noise under 45 dB(A) at 1 m is non-negotiable for night-shift wards; we specify double-shielded ball screws and PWM soft-start ramps in the control box firmware to hit that number.
How It Performs in Use
Backrest articulation 0–75°, knee break 0–35°, both achievable in ≤22 s from flat. The knee-break pivot aligns with the femoral condyle for a 50th-percentile adult; misalignment >15 mm increases shear forces on the sacrum by 18 % in pressure-mapping trials. That tolerance is held by CNC-bored pivot holes (±0.1 mm) and laser-cut link arms — manual jig drilling drifts to ±0.3 mm and shows up as audible click at 40°.
Caster Configuration
Central locking (4-wheel): Single pedal at foot end engages all four Ø125 mm medical-grade TPR casters. Turning radius 1.8 m. Preferred for corridors ≥2.2 m wide.
Directional + brake (2+2): Two fixed, two braked swivel. Turning radius 2.4 m. Chosen for tight retrofit rooms where central pedal clearance is <150 mm.
Battery Backup
2 × 12 V 2.9 Ah VRLA: 8–10 full cycles (backrest + knee) from mains loss. 6-month shelf life at 25 °C. Lower upfront cost.
1 × 24 V 5.2 Ah LiFePO₄: 18–22 cycles, 3-year calendar life, 40 % weight saving. Mandatory for Nordic tenders requiring 72 h autonomy.
Side rails use ABS/PP blend (UL94 V-0) with stainless steel latch pins. The CPR quick-release lever requires ≤15 N pull force at 45° angle — tested on 1000 cycles per IEC 60601-2-52 §201.12. Gas-spring assist on split rails adds 1.2 kg per side but reduces nurse actuation force from 28 N to 9 N, a measurable factor in musculoskeletal injury claims.
Specification Range and Customisation Limits
| Parameter | Standard Range | Customisation Window | Tooling Impact |
|---|---|---|---|
| Mattress platform (L × W) | 2000 × 900 mm | 1900–2100 × 850–1000 mm | New laser nest + fixture (€3.2 k) |
| Safe working load (SWL) | 250 kg | 180–300 kg (frame gauge change) | Weld fixture + actuator bracket (€1.8 k) |
| Deck construction | 4-section perforated steel | Mesh, laminated wood, X-ray translucent | Press tool per deck type (€0.9–2.1 k) |
| Control handset | Wired 4-button, IP67 | Wireless, nurse panel, foot control, smart-bed IoT | PCBA + enclosure mould (€4.5–12 k) |
| Finish colour | RAL 9016, 7035, 5015 | Any RAL, anti-microbial additive, texture | Powder batch change only (€0) |
Width beyond 1000 mm forces caster track widening, which exceeds standard 860 mm door clearances in 60 % of European hospital stock — flag this early in tender reviews. X-ray translucent deck (carbon-fibre composite) adds €140/unit and requires separate IEC 60601-2-54 compliance file; only justified for cath-lab or hybrid OR contracts.
OEM and ODM Programme Structure
ODM baseline: we own the technical file (Design Dossier per MDR Annex II) for the standard two-function platform. Buyer receives Declaration of Conformity, UDI assignment, and single-audit access to ISO 13485:2016 certificate. Branding limited to silk-screen logo on head/foot boards and handset overlay — no CE re-certification needed.
OEM route: buyer supplies full design input (3D STEP, BOM, risk file to ISO 14971). We run DFM review — typical findings: actuator stroke vs. link geometry interference, cable routing pinch points at knee-break pivot, battery enclosure venting for LiFePO₄ off-gas. Tooling cost split 50/30/20 at PO / T1 sample / PPAP sign-off. MOQ 50 units for custom colour or deck; 200 units for structural changes (width, SWL uplift) because weld fixture amortisation.
Private-label packaging: brown kraft carton with buyer part number, UDI barcode (GS1-128), and country-of-origin laser etch on frame. No retail graphics — beds ship to central stores, not shelf. Instruction for Use (IFU) translated to 27 EU languages from our master template; buyer approves final PDF before print run.
What Gets Checked Before Shipment
| Inspection Point | Method / Standard | Acceptance Criteria | Frequency |
|---|---|---|---|
| Electrical safety | IEC 60601-1:2005+A1+A2 (ES1, Type B) | Earth leakage <100 µA, patient leakage <10 µA | 100 % |
| Functional cycle | 100 cycles full articulation under 150 kg load | No binding, speed ±10 % of nominal, current <3.5 A | 100 % |
| Caster brake torque | ISO 20395 Annex B | ≥12 Nm hold on 10° incline, 250 kg load | 100 % |
| CPR release force | IEC 60601-2-52 §201.12 | ≤15 N at 45°, both rails simultaneously | 10 % batch (min 5) |
| Coating adhesion | ISO 2409 cross-cut | Class 0–1 after 500 h salt spray | Per colour batch |
| EMC emissions | IEC 60601-1-2:2014 (CISPR 11 Group 1 Class B) | Pass radiated 30–1000 MHz | First article + quarterly |
Failed units are segregated, root-caused (8D report within 48 h), and either reworked on-line or scrapped — no concession shipments. Test data logged to MES with serial-number traceability; buyer receives PDF test pack per container or full CSV dump via API for their QMS integration.
Packing, Marking and Freight Configuration
Each bed ships knock-down: frame assembly (head/foot/side rails bolted), mattress platform folded, actuator/control box pre-wired in protective sleeve. Gross weight 98–112 kg per unit. Four units per 20 ft GP container (floor-loaded), nine per 40 ft HC (double-stacked on EUR pallets with corner protectors). Stacking load limit 1800 kg per pallet — verified by 24 h compression test at 1.5×.
Marking per IMDG / ADR not required (no dangerous goods). Outer carton labels: buyer PO, model, serial range, net/gross weight, CE mark, UDI-DI barcode, "FRAGILE — MEDICAL DEVICE — KEEP DRY" in EN/DE/FR/ES. Desiccant sachets (2 kg silica gel) inside each mattress platform bag for sea freight >21 days. Temperature logger (single-use, -20 to +60 °C) placed in carton #1 of each container; data shared on delivery.
For air freight (urgent NHS framework calls), we ship platform assembled, frame flat — reduces volume 35 % but adds €42/unit handling. Buyer decides at PO; we quote both configurations in the pro-forma.
Ordering, Tooling and Lead-Time Questions
Frequently Asked
- What is the standard lead-time for a first ODM order? 45 calendar days from PO + artwork approval for standard RAL colours; +15 days for custom powder batch.
- Can we mix voltages (110 V / 230 V) in one container? Yes — control box auto-ranges 100–240 V AC 50/60 Hz. Handset plug differs (Type B vs. Type F); we pack correct cord set per destination market.
- Is the battery user-replaceable? VRLA: yes, tool-less door at foot end. LiFePO₄: requires Torx T20, labelled "Service Only" per IEC 62133-2.
- What warranty do you back? 3 years frame/welds, 2 years actuators/electronics, 1 year battery (VRLA) or 2 years (LiFePO₄). Extended to 5/3/2 with preventive maintenance contract.
- Do you support MDR Article 10(9) "legacy device" extension? Our technical file is current MDR; no legacy route needed. We supply PSUR summary and PMCF plan template for buyer's PMS file.
Tooling deposits are refundable after 500 cumulative units shipped — tracked in our ERP. Sample approval: we ship 2 units (T1) via air for physical evaluation; buyer has 10 business days to sign PPAP or request adjustment. Second iteration (T2) adds 10 days. No series production starts without signed PSW.
Ready to Review Tooling and Technical File?
Send your specification sheet or tender document. We return a marked-up BOM, DFM notes, and a firm tooling quote within 3 business days.
