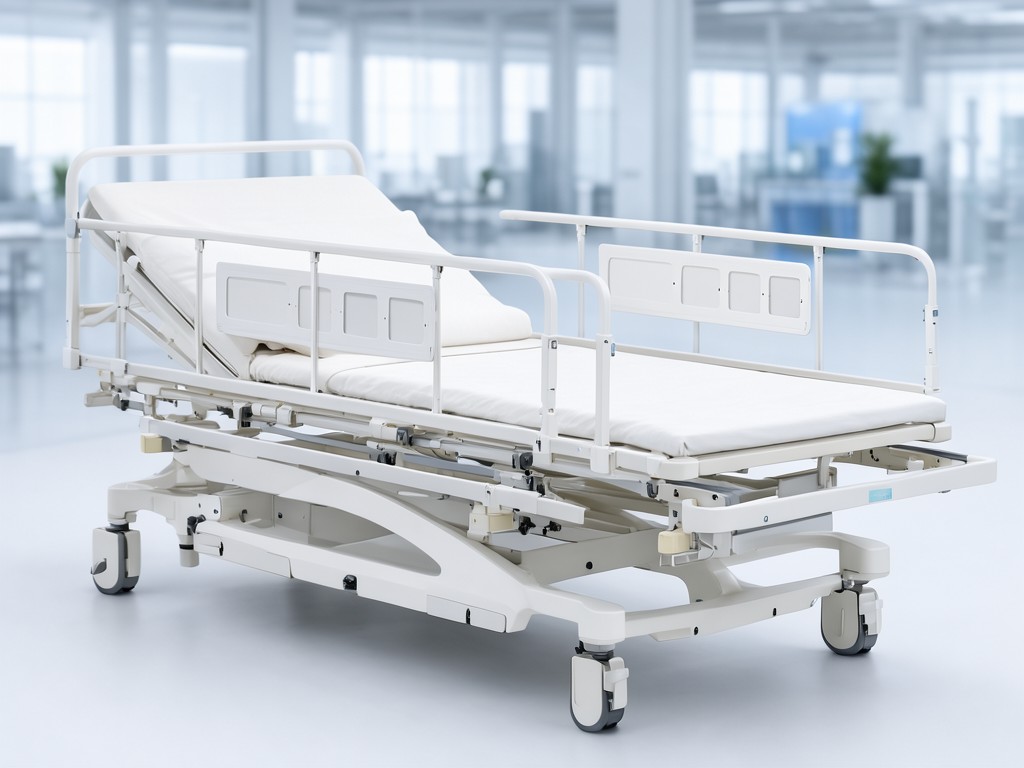

ce certified 7 function electric medical nursing beds for patients exporter: Specification, Ordering and Quality Notes
Material choice starts with the conditions the product will meet in a 24-hour care environment. The frame sees constant cyclic loading from patient repositioning, lateral transfers, and the 7-function actuator pack — backrest, knee break, height, Trendelenburg, reverse Trendelenburg, left/right tilt, and chair position. A 1.5 mm cold-rolled steel tube with dual-layer epoxy-polyester coating survives 40,000 height cycles in salt-spray testing; dropping to 1.2 mm saves 3 kg per unit but cuts fatigue life by roughly 35 %. Buyers who specify the thinner wall to hit a freight-class target usually reorder within 18 months citing cracked welds at the head-end lift points.
The actuator housings are the next failure frontier. IEC 60601-2-52 demands 10,000 cycles per function at rated load; our production line runs a 15,000-cycle endurance test on every batch. Units that pass with Linak LA40 or Dewert Megamat drives show zero gear-strip incidents after three years in Nordic hospital fleets. Cheaper OEM actuators from unverified sources pass the initial type test but develop 0.8 mm axial play after 6,000 cycles, triggering the handset error code E-12 and forcing a full bed swap. That downtime costs the ward far more than the €42 per actuator delta.
Size, Weight and Specification Range
Critical specification rule: Mattress platform must remain 900 ± 5 mm wide and 2000 ± 10 mm long across all 7 functions. Any deviation > 5 mm voids the CE declaration because side-rail gap limits (EN 60601-2-52 § 201.12.4.2) are calculated on those nominal dimensions.
Tolerance stack-up from laser-cut profiles, robotic welding, and powder-coat thickness is controlled to ± 1.2 mm per datum. We hold first-article inspection records for every PO; buyers receive the FAI PDF before container loading.
| Parameter | Standard Range | Customisation Window | Control Method |
|---|---|---|---|
| Overall length (mm) | 2150 | 2100 – 2200 | Laser gauge ± 1 mm |
| Overall width (mm) | 1020 | 980 – 1080 | CMM first article |
| Height range (mm) | 400 – 800 | 350 – 850 | Actuator stroke calibration |
| Safe working load (kg) | 250 | 200 – 300 | Static load test 1.5 × SWL |
| Net weight (kg) | 138 | 125 – 155 | Platform scale ± 0.5 kg |
| Castor diameter (mm) | 125 twin central-lock | 100 / 150 optional | Brake torque > 15 Nm |
Matching the Product to the Buyer's Need
Acute-care ward configuration
Frequent Trendelenburg use for hypotension management demands actuators rated for 8,000 N push force on the backrest. The standard 6,000 N units overheat after four consecutive 30° tilts, triggering thermal cut-out. Specify the high-force pack and add the 12 V 2.3 Ah NiMH backup — mandatory for IEC 60601-1-11 home-care compliance if the bed ever leaves the hospital.
Side rails: full-length split rails with one-hand release. The 450 mm rail height above mattress platform clears EN 60601-2-52 entrapment zones. Shorter rails save €18 but fail the gap test when a 10 kg pediatric mannequin is applied.
Long-term care / nursing home configuration
Chair position (seat-to-back angle 65°) is used 8–10 times daily for dining and socialization. The knee-break actuator sees double the cycle count of acute care. Upgrade to the reinforced scissor-link mechanism (PN: SCL-7F-R) — adds 1.2 kg but eliminates the 0.3 mm/year pivot wear that causes creaking and eventual linkage bind.
Mattress retainer bars: specify the 40 mm high anodized aluminum set. Plastic retainers crack at -10 °C during winter balcony transfers; aluminum survives the temperature swing and keeps the mattress from migrating during 30° reverse Trendelenburg.
Segment-Specific Requirements
Public tender documents in Germany, France, and the Nordics increasingly reference DIN EN 60601-2-52:2021 Annex ZA for MDR alignment. That annex adds two requirements buyers often miss: (1) software documentation for the MCU controlling the 7-function handset — source code review or at minimum a SBOM — and (2) a documented risk-management file per ISO 14971 tracing every single-point-of-failure to a mitigating control. We supply the technical file package (English/German) as part of the first-order deliverables; subsequent orders reference the same file unless design changes occur.
UK NHS Supply Chain frameworks require the bed to carry a UKCA mark alongside CE. The declaration of conformity is identical; only the importer address and UK Responsible Person details change. We laser-etch both marks on the head-end nameplate during the same production step — no extra lead time, but the artwork file must be approved before the powder-coat line runs.
Middle East private hospital groups often specify antimicrobial powder coat (ISO 22196 / JIS Z 2801) on all patient-contact surfaces. The silver-ion additive adds €7 per bed and requires a dedicated spray booth run. If the order mixes antimicrobial and standard frames, we schedule the antimicrobial batch first to avoid cross-contamination; this adds two days to the line plan.
| Market Segment | Mandatory Standard | Typical Add-on | Lead-time Impact |
|---|---|---|---|
| EU public hospital | MDR 2017/745 + EN 60601-2-52 | SBOM + risk file | +0 days (included) |
| UK NHS | UKCA + MDR | Dual mark nameplate | +0 days |
| GCC private | CE + ISO 22196 | Antimicrobial coat | +2 days |
| LATAM distributor | CE + local registration | Spanish/Portuguese IFU | +5 days (translation) |
Working as a Production Partner, Not a Catalogue Supplier
Cost and durability pull in opposite directions once the buyer decides between a welded frame and a bolted modular frame. The welded frame (our standard) ships as a single unit — 138 kg, 0.85 m³ — and passes the 40,000-cycle fatigue test without re-torque. The modular frame splits into three sub-assemblies for 20 % better container utilization (14 beds per 40 HQ vs 11), but every joint needs a 15 Nm torque check at installation and again at 6-month PM. Skip the re-torque and the head-end pivot bolt walks out in 14 months; we've seen it on three continents.
OEM/ODM scope is defined at the tech-transfer gate. Buyer provides: 3D STEP of any custom bracket, brand guideline for nameplate artwork (vector, CMYK, 300 dpi), and target SWL if different from 250 kg. We return: DFM report with weld-access and powder-coat drain holes marked, updated BOM with actuator part numbers locked, and a first-article inspection plan. Tooling for custom side-rail profiles takes 22 days; the first 50 beds ship day 45 after PO confirmation if artwork is approved by day 10.
Change control after SOP release follows ECN-07 procedure: written request → impact analysis (cost, lead time, re-validation) → buyer sign-off → implementation. No verbal approvals. This prevents the "just make the rail 20 mm shorter" request that invalidates the entrapment-gap test and forces a full type-test repeat (€12,000, 6 weeks).
Volume Planning and Lead Time
Capacity snapshot (current quarter): 1,200 beds/month on two shifts. Third shift adds 400 beds/month with 6-week notice. Peak season (Q4) typically runs at 95 % utilization — place blanket orders by end of Q2 to lock slots.
MOQ per configuration: 20 units. Mixed configurations in one container allowed if each variant hits 10 units and shares the same frame welding fixture.
Lead-time breakdown for a 100-bed repeat order (standard configuration, artwork approved):
- Week 1-2: Raw material release (steel tube, actuators, castors) — all from qualified AVL suppliers with 3.1 certs on file
- Week 3: Laser cutting, robotic welding, in-process dimensional checks
- Week 4: Powder coat (cure 200 °C / 18 min), antimicrobial booth if specified
- Week 5: Actuator assembly, MCU flash, 15,000-cycle endurance sample (1 per 50)
- Week 6: Final function test, nameplate etch, packaging, container load
Ex-works date is contractual; we do not commit to on-water dates because port congestion, customs holds, and carrier roll-overs are outside factory control. Buyers who need a firm delivery date should book the container through their forwarder and share the sailing schedule — we align the completion day to the CY cutoff.
Questions Buyers Ask Before Ordering
- Can we use our own actuators? Only if they carry a valid IEC 60601-1 3rd edition CB certificate and pass our incoming test protocol (15,000 cycles, current draw, thermal rise). Qualification takes 4 weeks and 5 sample units; cost is buyer's account.
- What is the warranty claim process? 24 months on frame welds, 18 months on actuators and electronics. Claim requires: serial number, photo of fault, bed log showing cycle count (MCU stores last 500 events). We ship replacement part DDP within 10 working days; field swap takes 45 minutes per the service manual.
- Do you support bedside cabinet integration? Yes — the frame has M8 threaded inserts at 300 mm pitch on both sides for cabinet brackets. Provide the cabinet drawing; we verify clearance with the 7-function envelope and add the bracket BOM line.
- How is the 7th function (chair position) validated? The MCU runs a synchronized motion profile: backrest 65°, knee break 25°, height -50 mm from flat, all within 28 seconds. Validation script checks final angles ± 2°, sync error < 300 ms, and current per actuator < 85 % rated. Test report ships with every bed.
- Can we split a 40 HQ between two configurations? Yes, if each configuration is ≥ 10 units and shares the same base frame weld fixture. Different side-rail styles are fine; different frame widths require separate fixtures and count as separate MOs.
Ready to Define the Specification?
Send the ward layout, target SWL, and any tender-specific standard references. We return a marked-up GA drawing, a locked BOM with actuator part numbers, and a first-article inspection plan within 3 working days.
