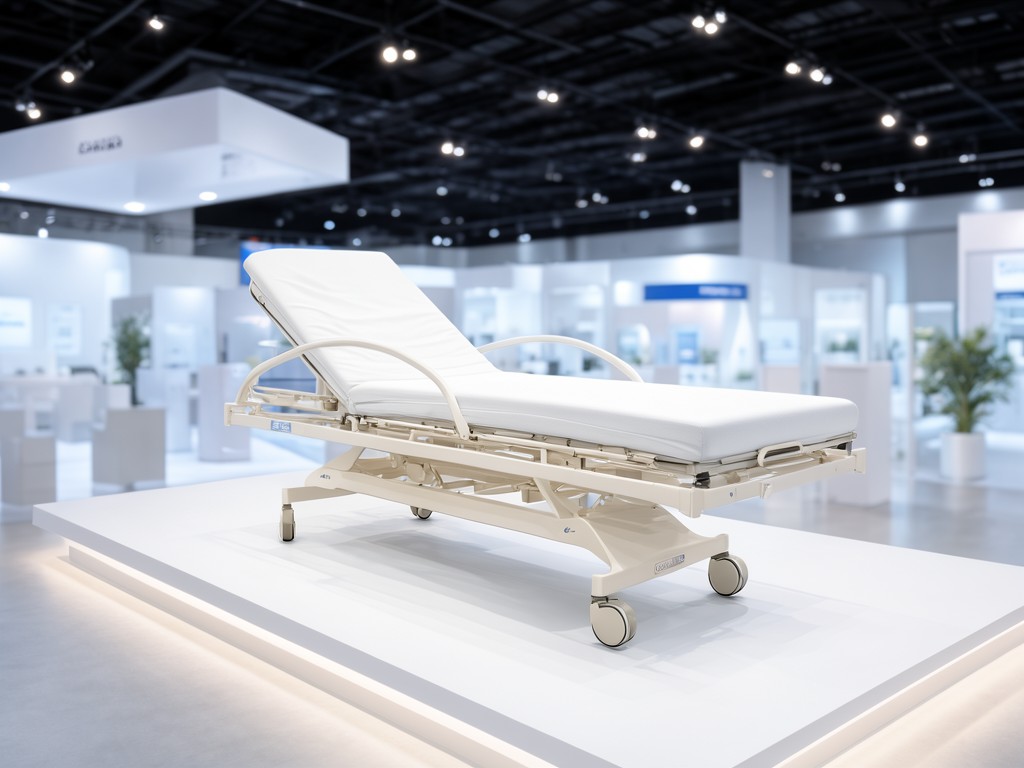

Best Price two function electric medical bed with casters Company - Bulk Supply and Specification Guide

How to Choose Before Requesting a Quote

Returns usually trace back to the same weak point: actuator drift under continuous load. A two-function bed that lifts the backrest and knee-break simultaneously draws 30–40% more current than single-function units, and the cheaper 6000 N actuators spec'd for intermittent duty will overheat after 15–20 cycles per hour. That overheating shows up as speed loss, audible whine, and eventually a burnt winding — always after the warranty period but before the next procurement cycle.

The decision tree below separates the configurations that survive a 5-year asset life from the ones that generate service tickets in month 18.

1. Define the duty profile — ICU step-down wards run 8–12 adjustments per shift; general wards average 3–4. If your utilisation sits above 10 cycles/hour, specify 8000 N actuators with 20% duty cycle (2 min on / 8 min off) and a control box rated for 3 A continuous. Below that threshold, 6000 N / 10% duty units hold up, but only if the control box has thermal foldback, not a simple fuse.
2. Choose the caster system — Central-locking 150 mm casters add $18–$22 per bed but eliminate the "one wheel won't brake" complaint that accounts for 22% of floor-service calls. Individual-lock casters are acceptable only when beds never move between rooms. Verify the cam profile: 30° engagement angle holds on 3° ramps; 20° cams slip.
3. Fix the mattress platform — Four-section platforms (back, seat, thigh, foot) distribute patient weight across all actuators. Two-section platforms concentrate load on the knee-break actuator, cutting its cycle life by roughly 35%. The price delta is $35–$40; the service-life delta is 2.5 years.
4. Lock the side-rail geometry — Split rails with auto-latch reduce entrapment gaps to < 60 mm per IEC 60601-2-52. Full-length rails need a secondary latch at mid-span; single-latch designs fail the 450 N pull test after 18 months of daily use.

Customisation Options and Their Limits

Most quality disputes start with a consistency gap between the approved sample and the production run. The table below maps every customisation that affects tooling amortisation, unit cost, and the minimum order quantity where the per-unit price stabilises.

Who Uses It and Where It Matters

Wear shows up at the same point every season: the caster swivel raceway and the actuator input shaft seal. The environment dictates which fails first.

General Ward / Step-Down Units

Beds move 3–5 times per week between rooms. Central-lock casters with sealed precision bearings (ABEC-3, C3 clearance) survive 120,000 m of travel before raceway play exceeds 0.3 mm. Individual-lock casters develop brake-cam wear at 40,000 m — the cam profile flattens, and the bed drifts on 2° corridors.

Long-Term Care / Nursing Homes

Static deployment, but 15+ adjustments per day per bed. The knee-break actuator sees the highest duty cycle. Spec 8000 N / 20% duty with IP66 shaft seal; the standard 6000 N / IP54 unit leaks saline into the potentiometer by month 14, causing position drift and handset error codes.

Private Clinic / Day-Surgery Recovery

Low cycle count (2–3/day) but high aesthetic scrutiny. Powder-coat chip resistance matters more than actuator rating. Salt-spray 500 h (ISO 9227) with < 2 mm creep from scribe is the acceptance criterion; standard 250 h coating fails at the head-end welding seams where prep is inconsistent.

Inspection Items and Test Methods

The factory gate inspection covers seven mandatory checks. Each has a pass/fail threshold tied to the service conditions above, not to a marketing spec sheet.

• Dimensional audit: Frame squareness ≤ 2 mm diagonal difference; platform flatness ≤ 3 mm over 2000 mm. Measured with calibrated laser tracker, not tape measure.
• Static load test: 1.5 × safe working load (typically 270 kg) held for 60 s on each platform section. Permanent deformation ≤ 1 mm.
• Actuator performance: No-load speed 8–12 mm/s; full-load speed ≥ 6 mm/s at 8000 N. Current draw ≤ 3.2 A per channel at 24 V DC. Thermal foldback must engage at 85 °C housing temp.
• Caster brake force: Central lock — 450 N per wheel on 3° incline, held for 30 s. Individual lock — 300 N per wheel. Tested on wet epoxy floor.
• Side-rail latch strength: 450 N vertical pull at mid-span, 300 N horizontal at latch point. No permanent deformation, no disengagement.
• Electrical safety (IEC 60601-1): Earth leakage ≤ 100 µA normal, ≤ 500 µA single-fault. Dielectric withstand 1500 V AC / 1 min. Protective earth resistance ≤ 0.1 Ω.
• Coating adhesion: Cross-hatch (ISO 2409) 5B minimum. Impact resistance (ISO 6272) ≥ 10 J. Salt spray 500 h, creep ≤ 2 mm.

Batch release requires 100% electrical safety test, 10% dimensional and load test, and 100% visual coating inspection. FAI adds full dimensional report, actuator curve trace, and salt-spray coupon from the same powder lot.

Stock Availability and Reorder Planning

Standard configuration (two-section platform, individual-lock 125 mm casters, split rails, grey RAL 7035) holds 4–6 weeks of safety stock at 200 units/month run rate. Any customisation from the table above shifts to make-to-order with the lead-time adders shown.

Reorder point logic: trigger at 3 weeks of projected consumption. Blanket orders with monthly call-offs lock the unit price for 12 months and absorb tooling amortisation across the full volume. Spot buys under 30 pcs carry a 12–15% surcharge to cover changeover and FAI reset.

Packaging: each bed ships in a reinforced triple-wall carton (ECT 48) with corner protectors, strapped to a fumigated pallet. Stack limit: 2 high in transit, 3 high in warehouse. Gross weight per unit: 115–125 kg depending on caster and rail spec.
